1747-L543 Allen-Bradley

Name: 1747-L543 Allen-Bradley
Brand: Allen Bradley
SKU: 1747-L543
Price: 600.0 USD
Availability: InStock

$600.00 - $944.16

$600.00

$600.00 - $944.16

$600.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

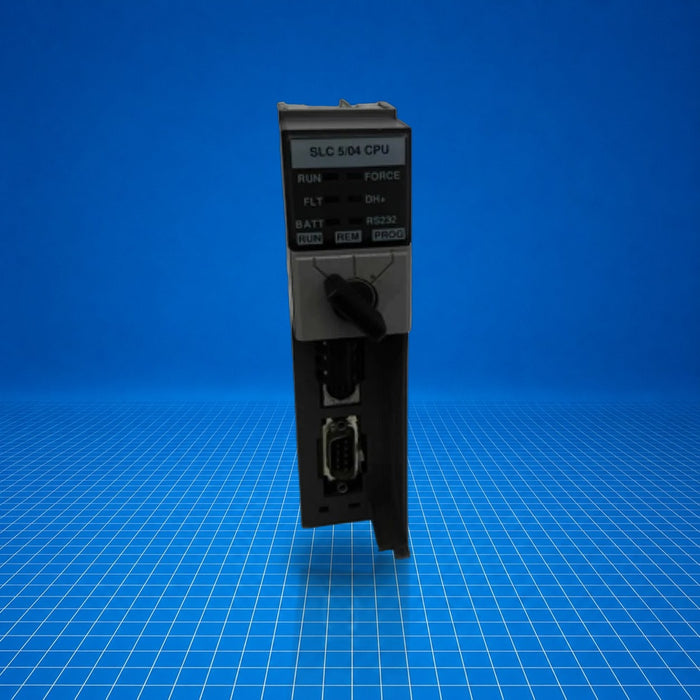

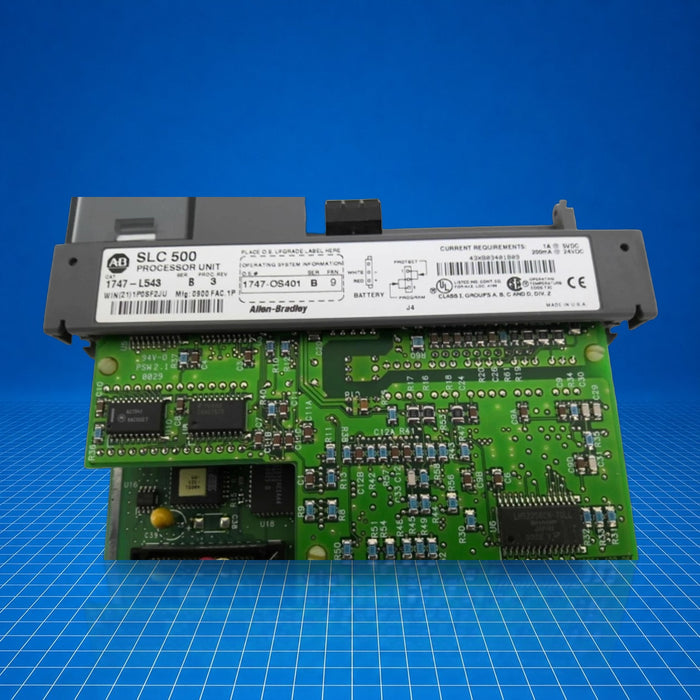

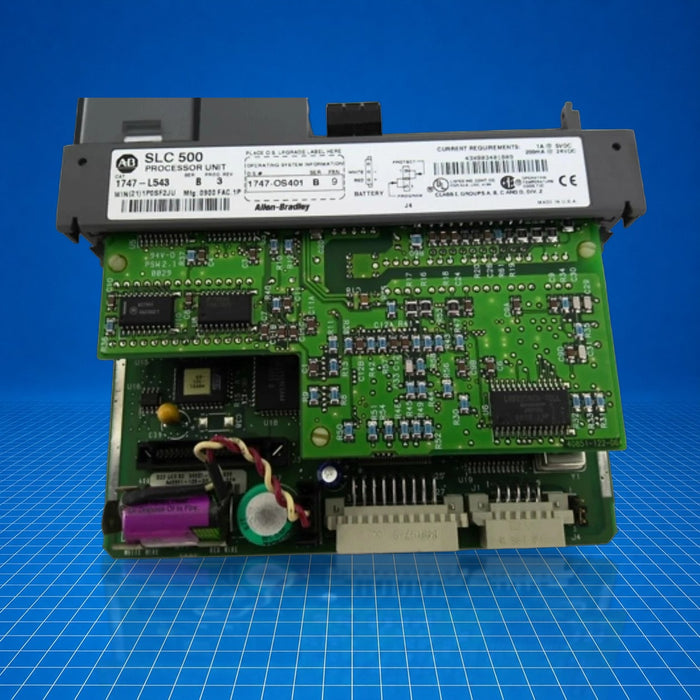

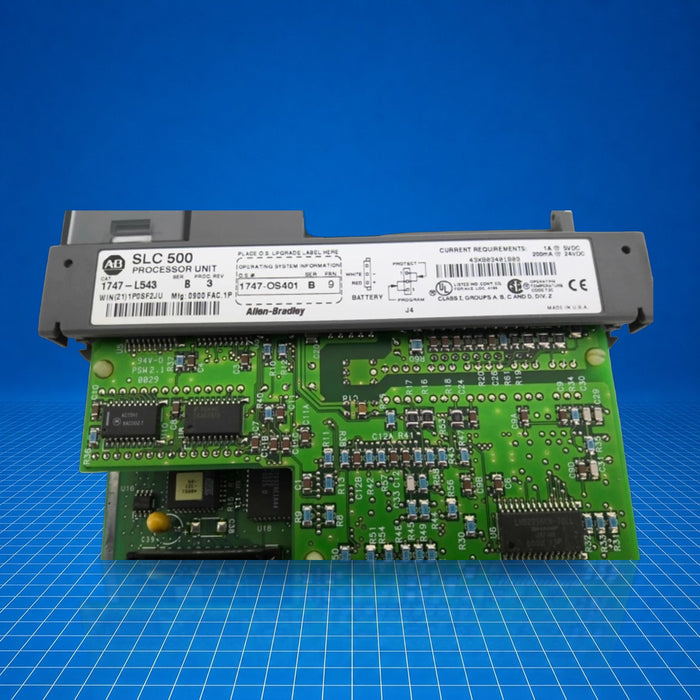

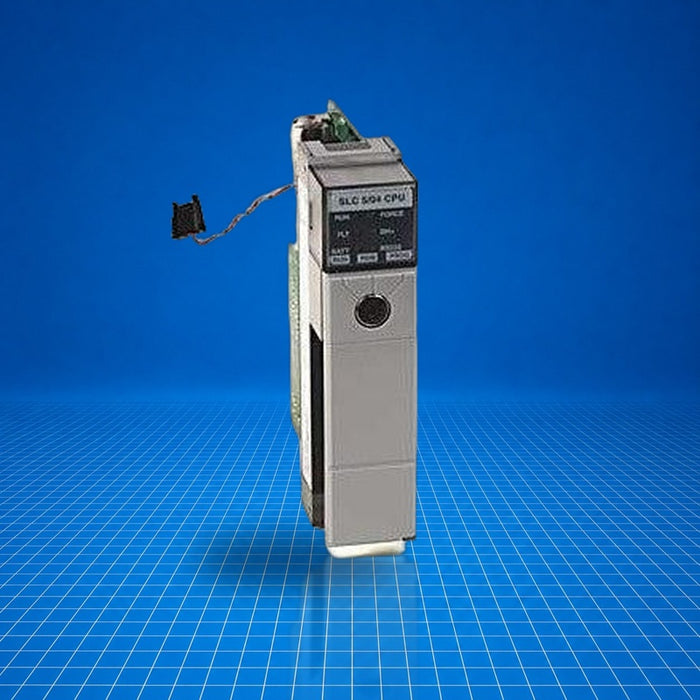

The 1747-L543 is an Allen-Bradley SLC 5/04 processor module within the SLC 500 family. It functions as the central processing unit (CPU) in a modular PLC control system, providing logic execution, I/O scanning, and communications. Installed in a 1746-series chassis, it supports applications across manufacturing automation, material handling, machine control, and process monitoring. The 1747-L543 handles discrete and analog signals, uses embedded DH-Plus and RS-232 for networking, and provides onboard memory for user programs and data.

Best Suited For

Modular SLC 500 systems with up to three chassis
Applications requiring both discrete and analog I/O
Systems needing DH-Plus or RS-232 communication
Retrofit or maintenance of legacy SLC 5/04 systems

User Memory

64 000 Words

Discrete I/O Capacity

4 096 inputs, 4 096 outputs

Analog I/O Capacity

480 points

Communication Ports

DH-Plus, RS-232

Backplane Power Draw

1 000 mA @ 5 V DC; 200 mA @ 24 V DC

Technical Specifications

I/O & Electrical

Discrete Input Capacity

4 096

Discrete Output Capacity

4 096

Analog I/O Capacity

480

Backplane Current @ 5 V DC

1 000 mA

Backplane Current @ 24 V DC

200 mA

Communication & Power

Communication Ports

DH-Plus, RS-232

User Memory

64 000 Words

Backup Memory

Flash (via 1747-M13)

Program Scan Time

0.9 ms per K

I/O Scan Time

0.225 ms

Physical & Environmental

Operating Temperature

0 °C to 60 °C

Chassis Capacity

Up to 3 chassis / 30 slots

Weight

0.45 kg (1.0 lbs)

Certifications

RoHSEMCLVD

Product certified to applicable directives (EMC, LVD, RoHS) as per SLC 500 family documentation. Discontinued as of March 31, 2024.
