Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

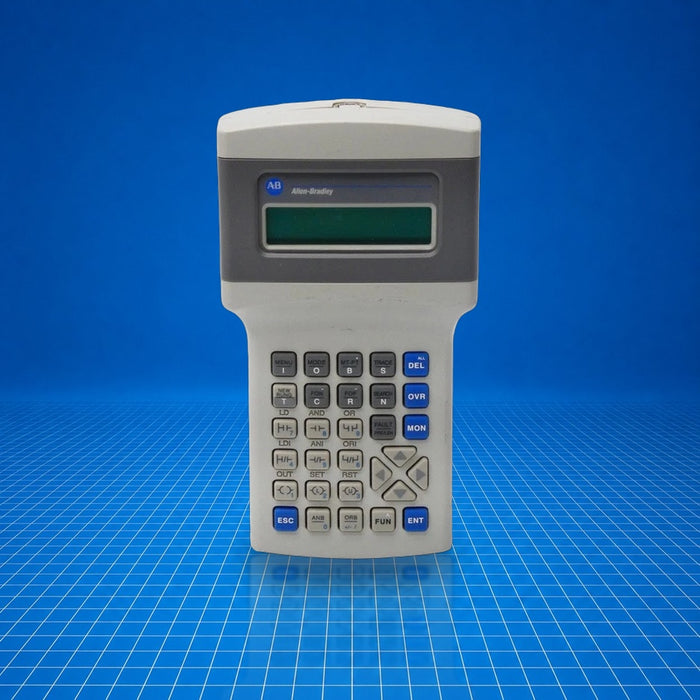

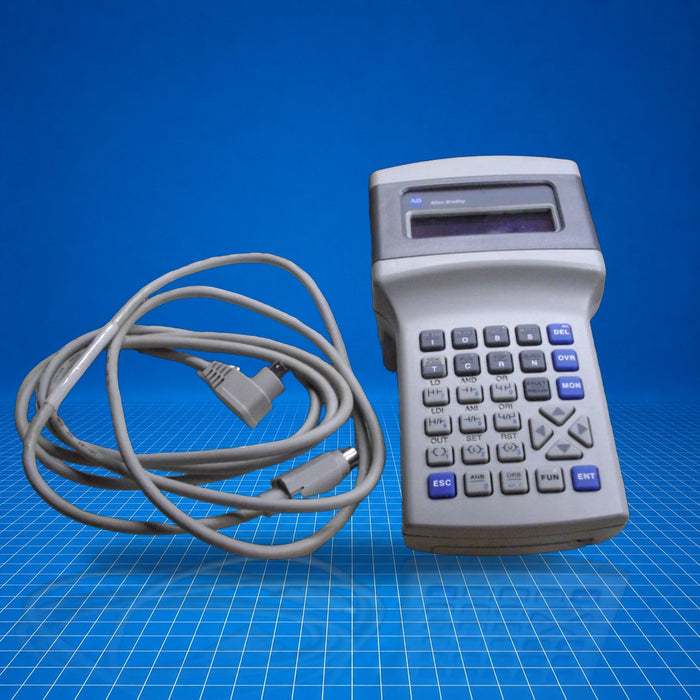

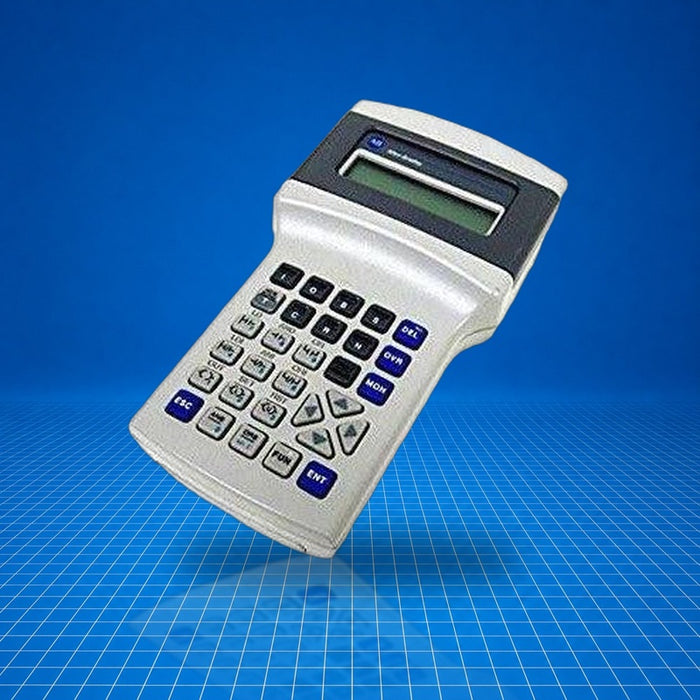

The 1761-HHP-B30 is an Allen-Bradley Hand-Held Programmer (HHP) in the MicroLogix 1000 family, used to create, edit, and monitor ladder logic programs locally without a PC. It supports textual fault messaging, trace and multi-point monitoring, multilingual displays, and optional EEPROM memory modules. Typical applications include on-machine commissioning, fault diagnosis, program transfer between MicroLogix 1000 controllers, and local field updates.
Best Suited For
- On-machine MicroLogix 1000 programming and diagnostics
- Field commissioning of MicroLogix logic without PC
- Program transfer between MicroLogix 1000 units via memory module
- Textual fault message troubleshooting in six languages
- Monitoring multiple data points during runtime
Display
2-line × 16-character LCD
Keypad
30 rubber/carbon keys
Power draw
83 mA @ 24 V DC (1.99 W)
Operating temp
0 to 50 °C (32 to 122 °F)
Weight
0.3 kg (0.6 lb)
Technical Specifications
I/O & Electrical
Input voltage
24 V DC
Power consumption
83 mA @ 24 V DC (1.99 W)
Communication & Power
Communication port
RS-232 supporting DF1 full-duplex
Optional memory module
Supports EEPROM modules (8 K bytes, 64 K bytes)
Physical & Environmental
Display
2-line × 16-character LCD
Keypad
30 rubber/carbon keys (color-coded)
Operating temperature
0 to 50 °C (32 to 122 °F)
Storage temperature
-20 to 60 °C (-4 to 140 °F)
Humidity
5 to 95 % (non-condensing)
Weight
0.3 kg (0.6 lb)
Dimensions
Approx. 94.48 mm × 172.21 mm × 76.45 mm (3.72 × 6.78 × 3.01 in)
Certifications
UL Listed
