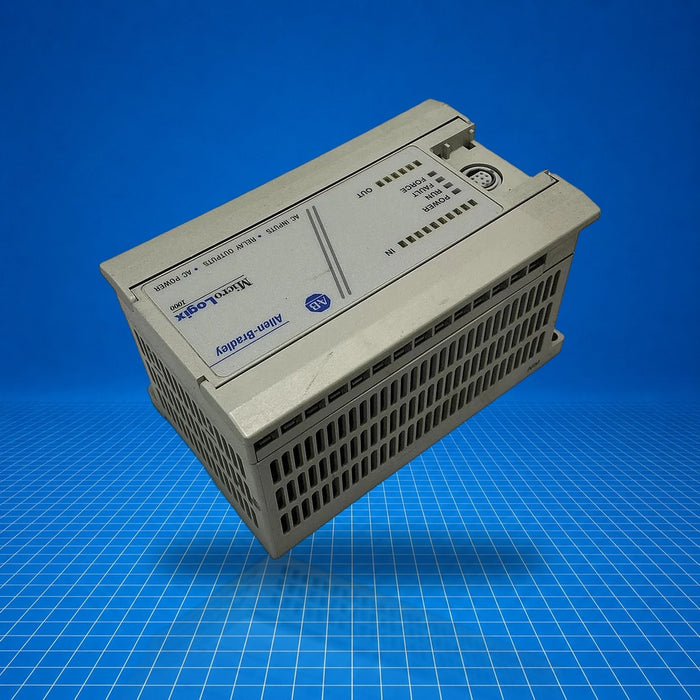

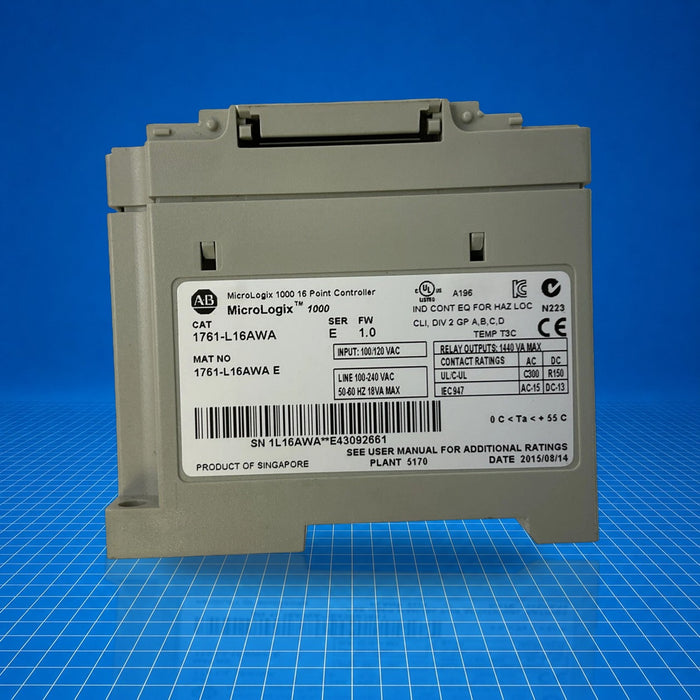

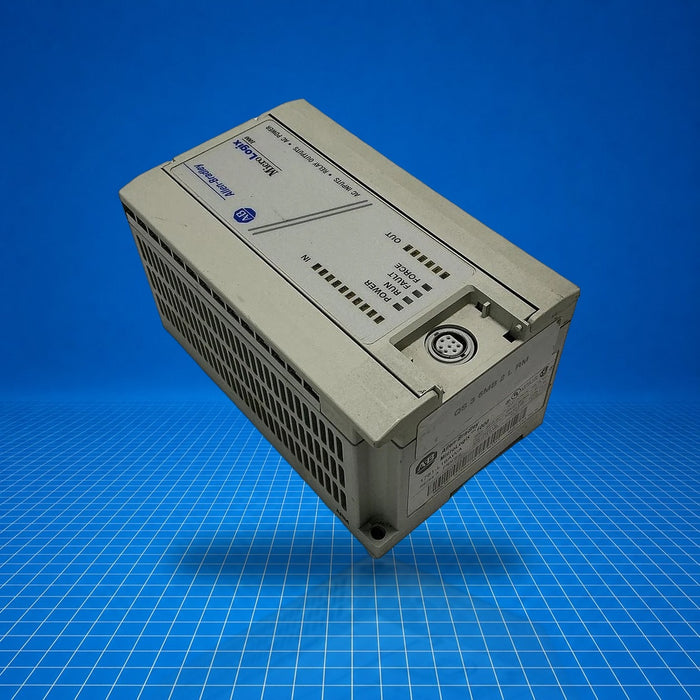

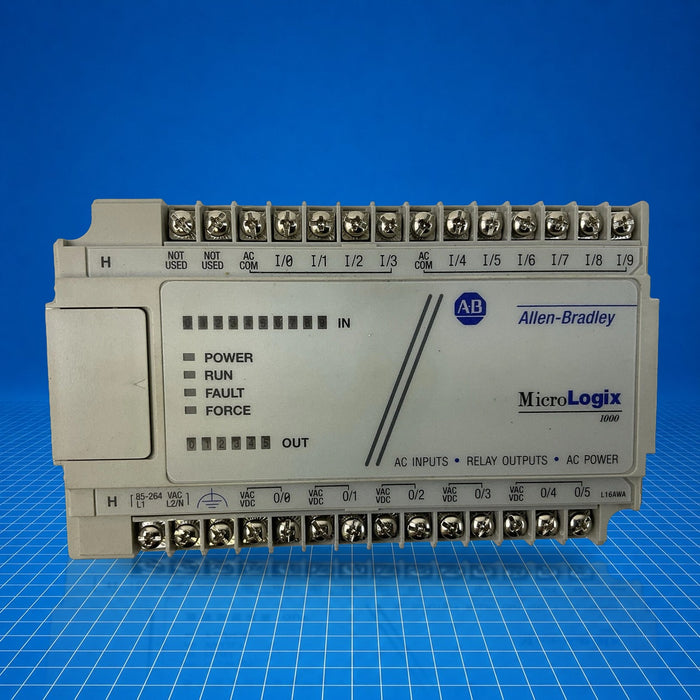

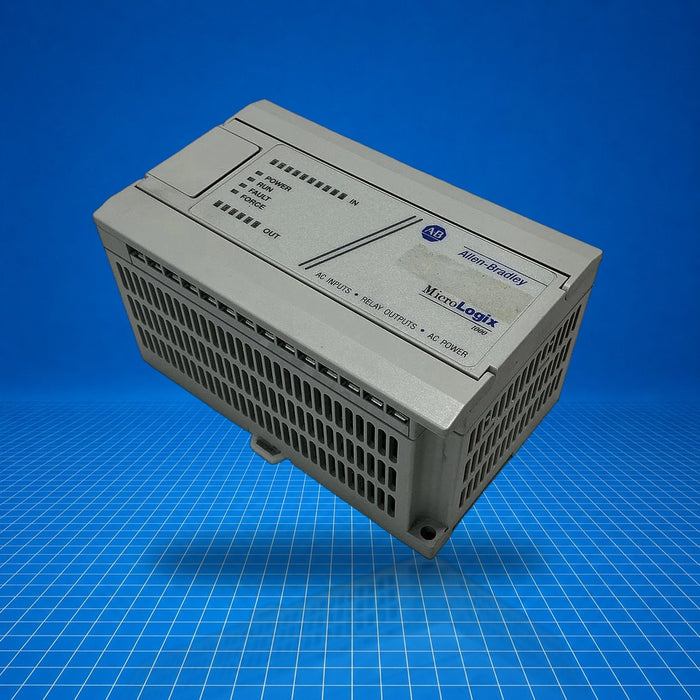

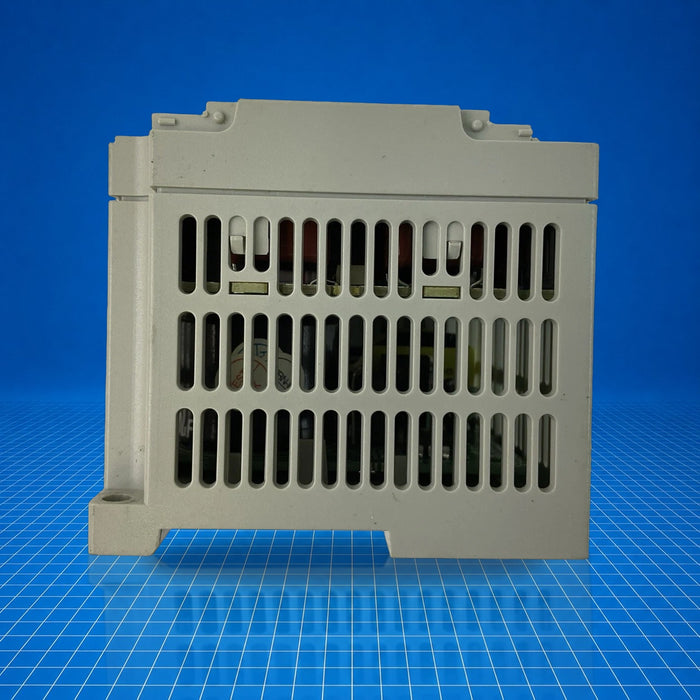

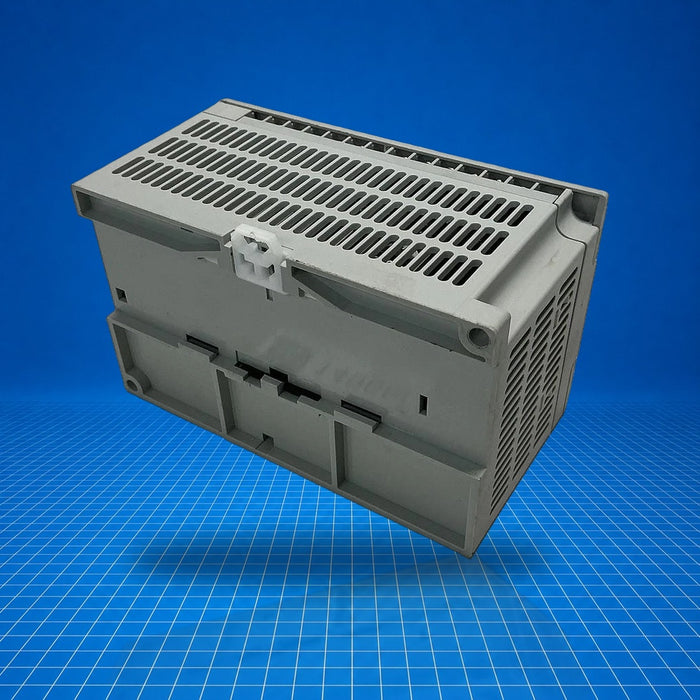

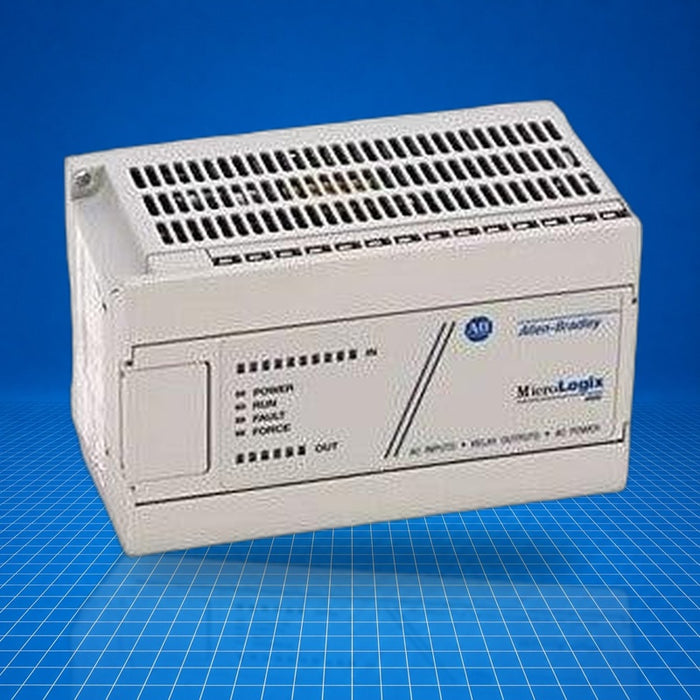

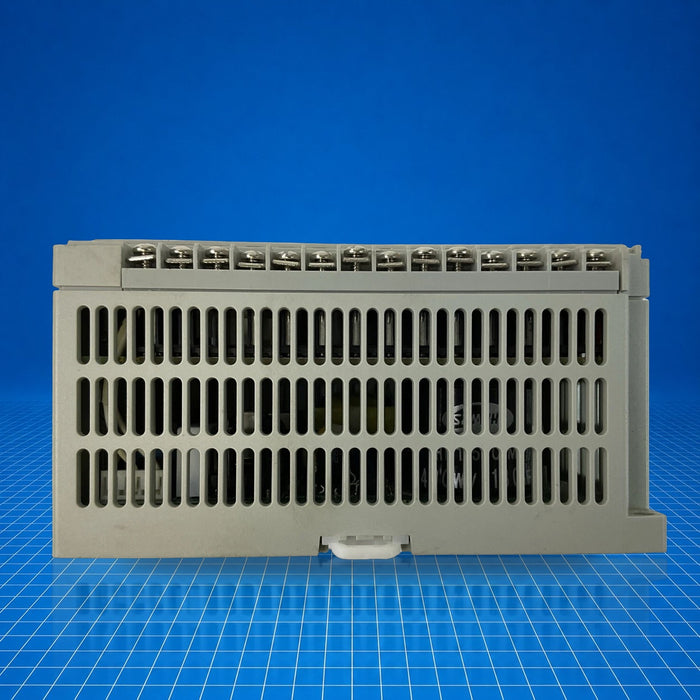

Product image is representative; revision or series may vary.
Contact us to request a specific version.

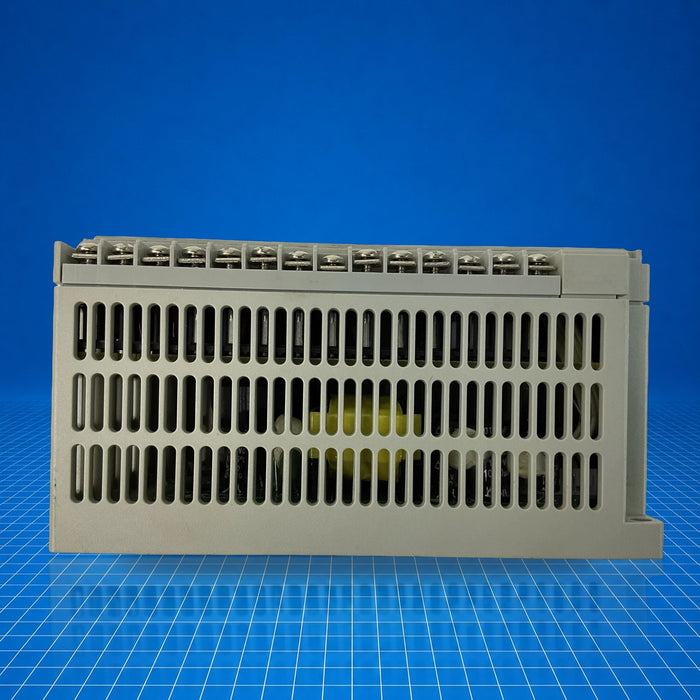

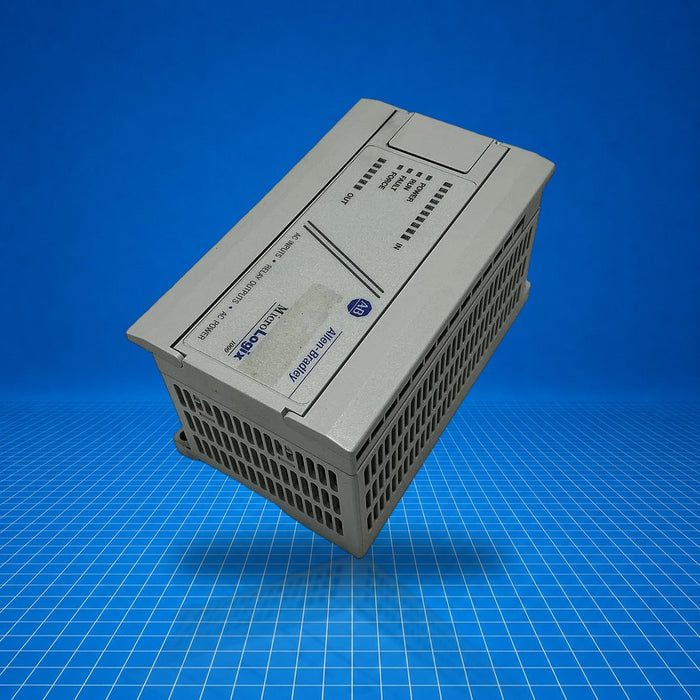

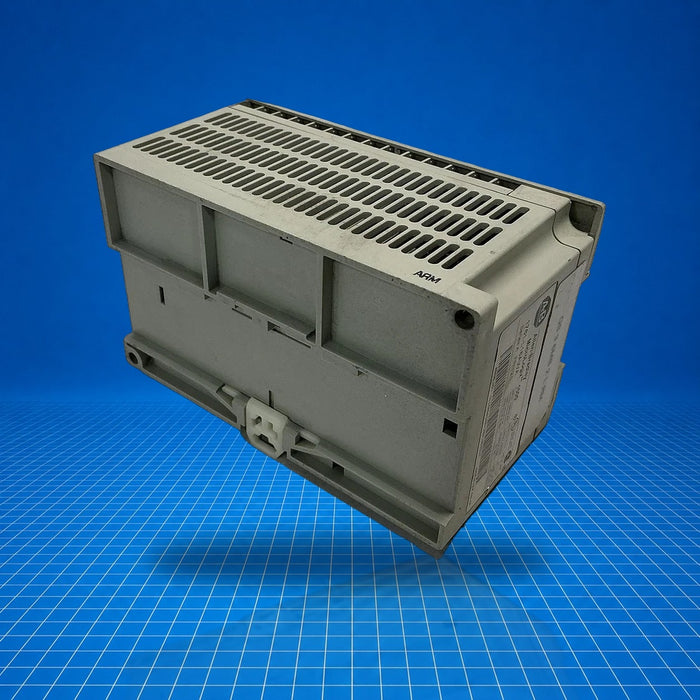

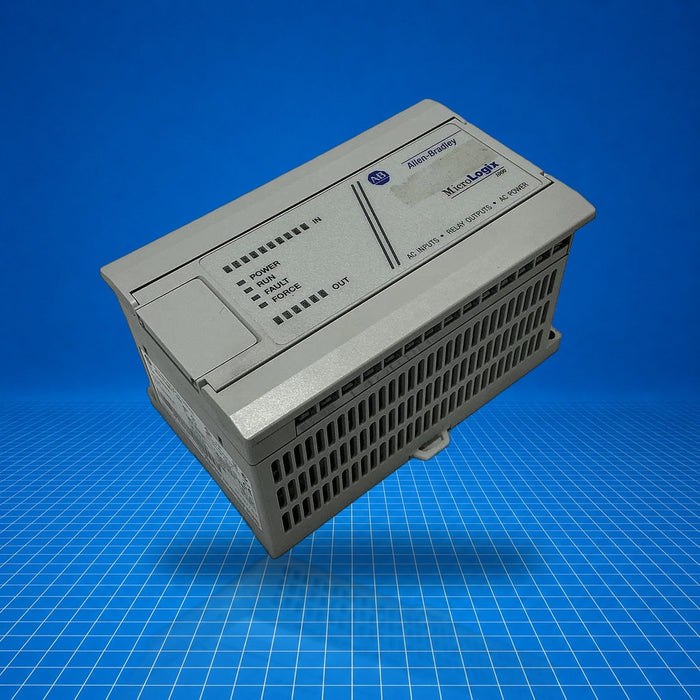

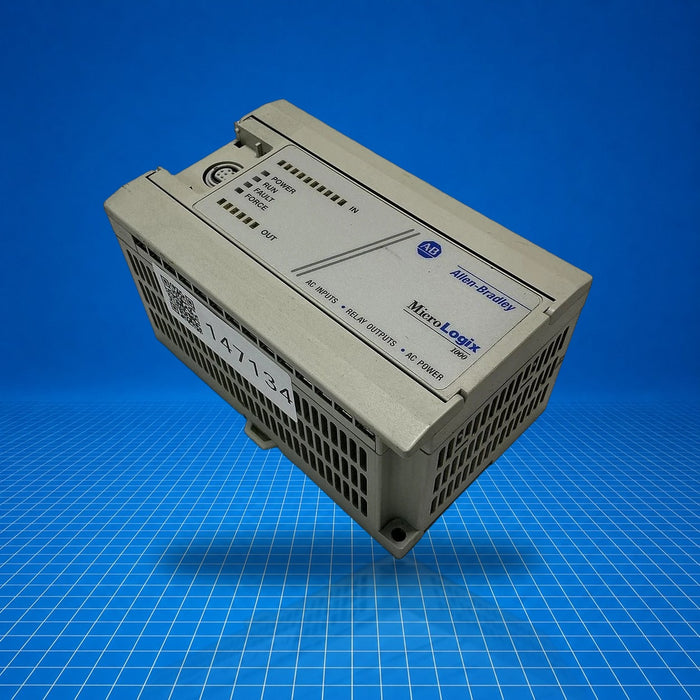

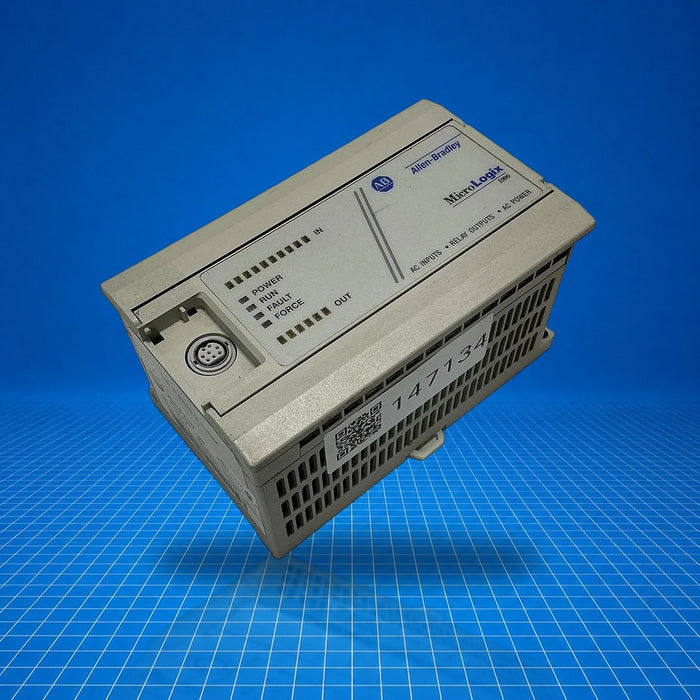

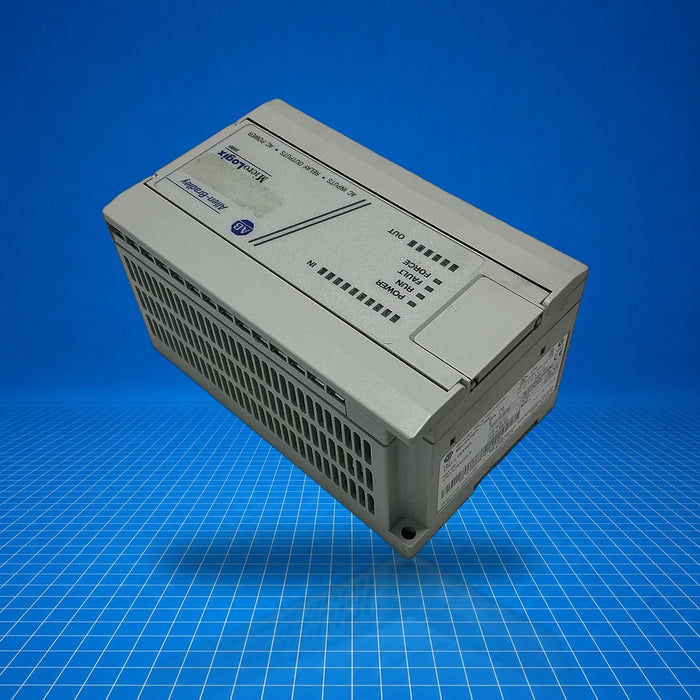

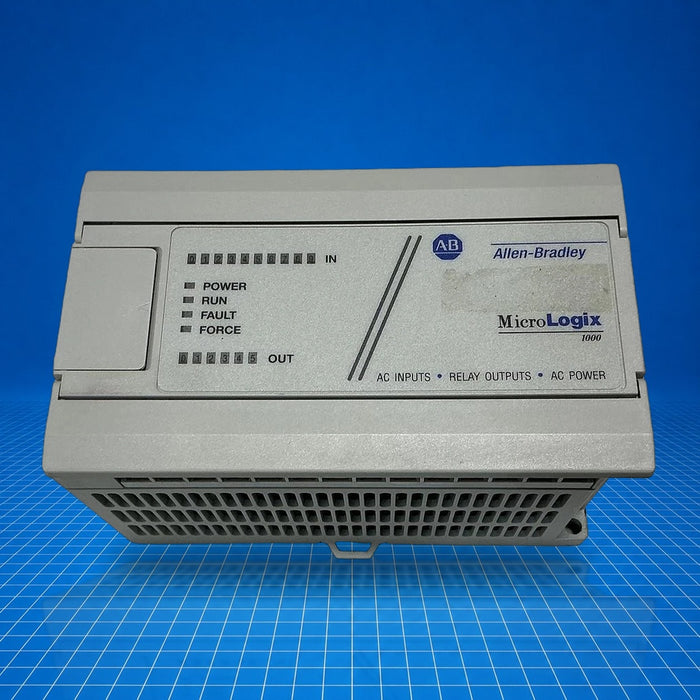

1761-L16AWA Allen-Bradley

Name: 1761-L16AWA Allen-Bradley
Brand: Allen Bradley
SKU: 1761-L16AWA
Price: 760.84 USD
Availability: InStock

$760.84 - $1,093.87

$760.84

$760.84 - $1,093.87

$760.84

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1761-L16AWA is an Allen-Bradley MicroLogix 1000 programmable logic controller. It includes ten 120 VAC discrete inputs and six relay outputs, integrated within a compact housing. It provides 1 KB of onboard memory (EEPROM), an RS-232 DF1 communication interface, and accepts 120/240 VAC power. Typically deployed as a small machine or process controller in industrial environments, 1761-L16AWA is suitable for standalone control tasks, equipment retrofit, and basic automated systems, though it is now discontinued (discontinued June 30, 2017).

Best Suited For

Small standalone machine control
Retrofit of legacy systems powered by 120 VAC
Basic discrete input/output applications
Training or educational PLC setups

Discrete inputs

10 × 120 VAC

Digital outputs

6 × relay

Memory

1 KB EEPROM (≈737 instruction words, 437 data words)

Comm interface

RS-232 (DF1)

Power supply

85-264 VAC (47-63 Hz)

Technical Specifications

I/O & Electrical

Input voltage

120 VAC

Digital output type

Relay

Number of inputs

10

Number of outputs

6

Communication & Power

Communication interface

RS-232 (DF1)

Memory size/type

1 KB EEPROM (≈737 instructions, 437 data words)

Power supply voltage

85-264 VAC, 47-63 Hz

Real input power

7 W @ 120 VAC; 8 W @ 240 VAC

Apparent input power

15 VA @ 120 VAC; 21 VA @ 240 VAC

Max inrush current

30 A for 8 ms

Physical & Environmental

Dimensions (L × W × H)

5.24 × 2.87 × 3.15 inches

Weight

1.40 lb

Operating shock

10 g

Non-operating shock

20 g

Operating vibration

2.5 g (panel mounted)

Non-operating vibration

5 g

Operating humidity

5-95% non-condensing

Storage temperature

-40 °C to +85 °C

Certifications

UL Listedc-ULusCERCMEAC

UL Listed (UL 508, Industrial Control Equipment) for programmable controllers including 1761-L16AWA; compliance with Class I, Division 2 environments when product or packaging is marked (installation instructions document includes C-UL and CE/RCM/EAC compliance as applicable).
