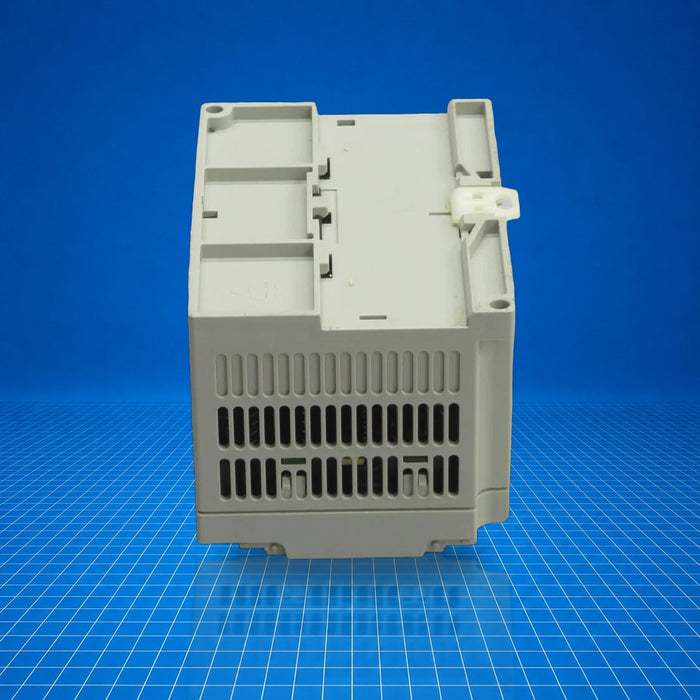

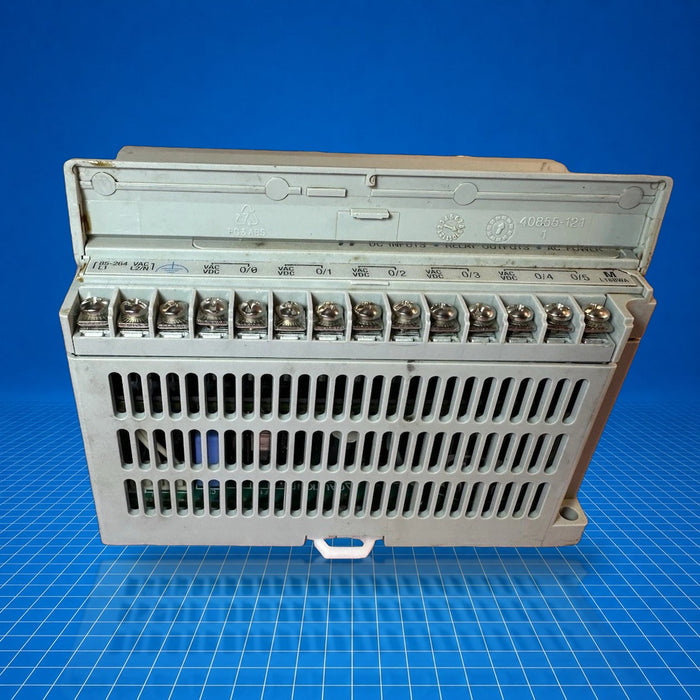

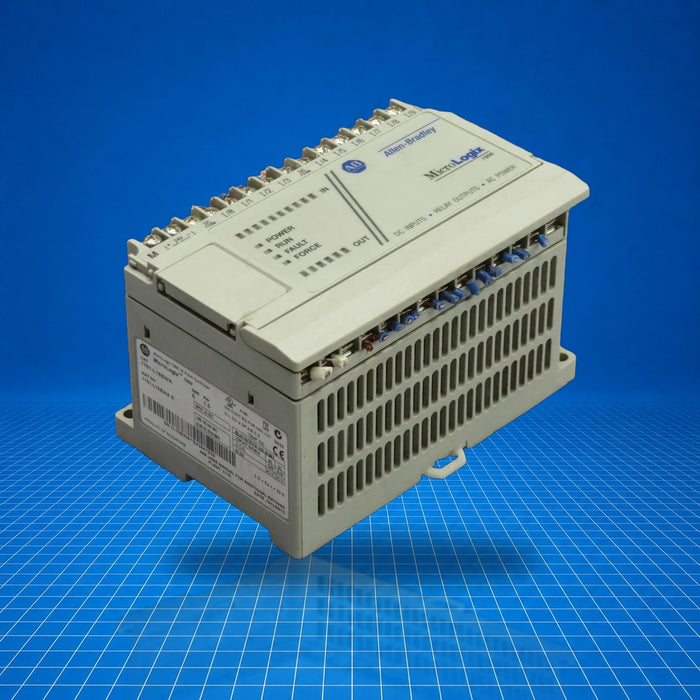

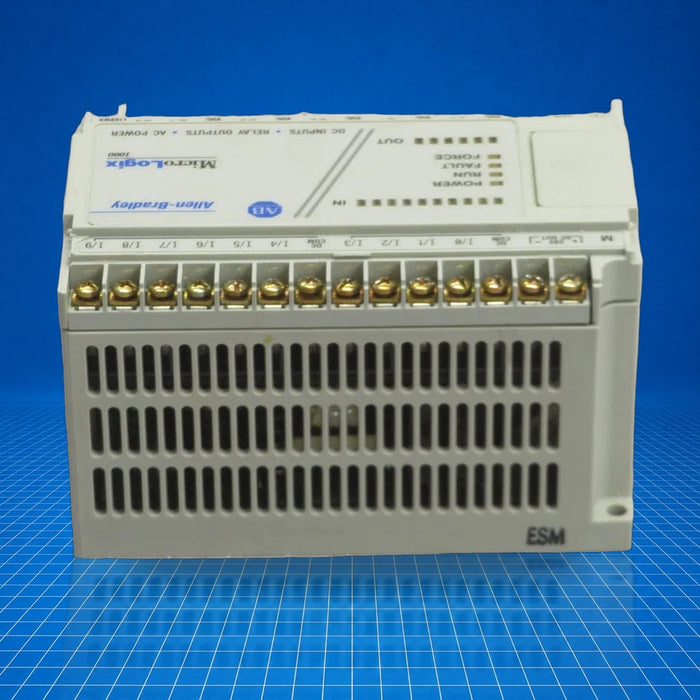

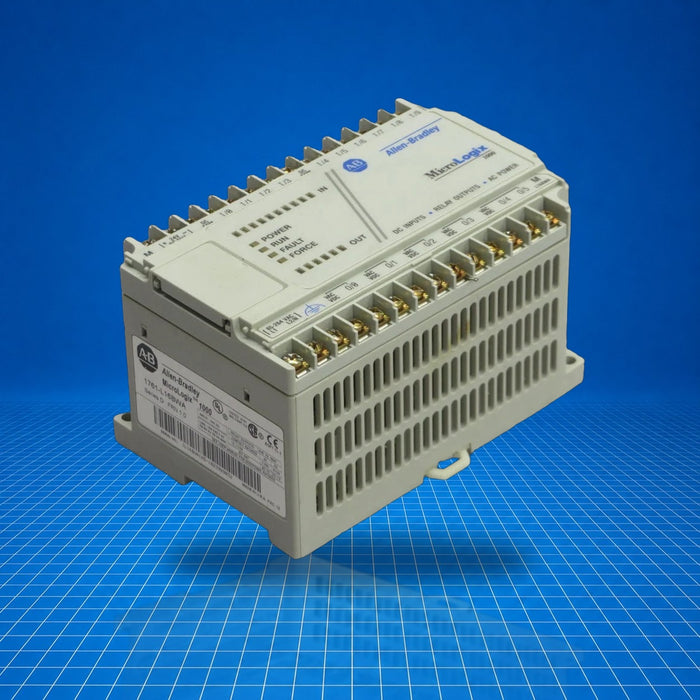

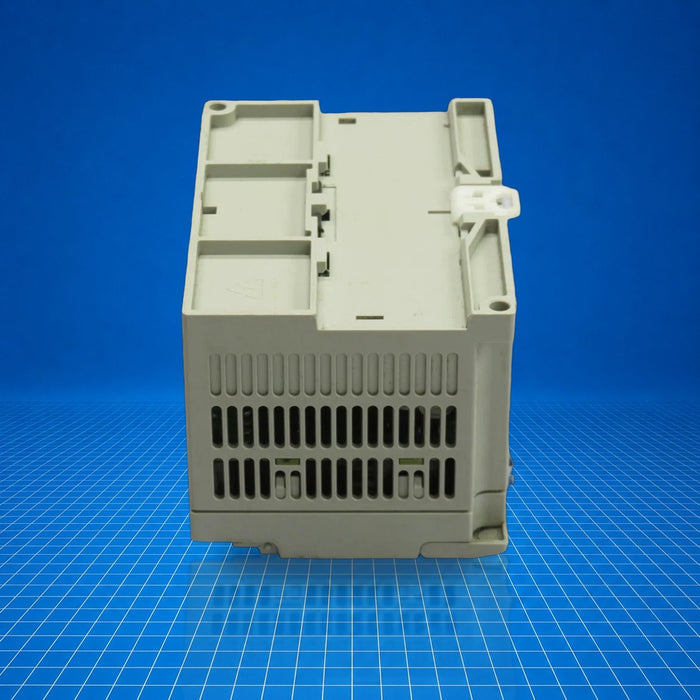

1761-L16BWA Allen-Bradley

Original price $679.96 - Original price $962.47
Original price
$679.96
$679.96 - $962.47
Current price $679.96
Surplus - Tested (With Warranty)
Need a Specific Revision?
$679.96
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$962.47
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

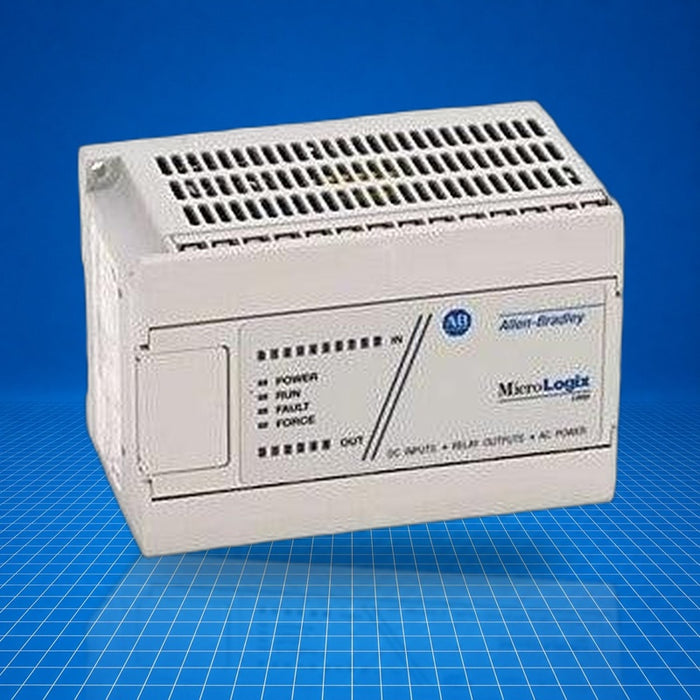

The 1761-L16BWA is a MicroLogix 1000 programmable logic controller from Allen-Bradley. It provides 10 discrete 24 V DC inputs and six relay outputs, powered from 120-240 V AC, with 1 KB of EEPROM for program and data. Communication is via DF1 over RS-232. It serves as a compact controller for small-scale industrial control tasks such as machine sequencing, basic logic and timing operations. This controller is discontinued as of June 30, 2017, but remains in legacy installations.

Best Suited For

  • Small standalone machine control
  • Basic logic and timing sequences
  • Retrofit of legacy MicroLogix 1000 systems
  • Educational or bench-top PLC training
I/O points
16 points (10 inputs, 6 relay outputs)
Power supply
120-240 V AC
Memory
1 KB EEPROM
Communication
DF1 via RS-232
Status
Discontinued (June 30 2017)

Technical Specifications

I/O & Electrical

Digital inputs
10 × 24 V DC
Relay outputs
6 relay outputs
Master control relay
Yes

Communication & Power

Input voltage
120-240 V AC
Memory
1 KB EEPROM
Communication ports
DF1 via RS-232

Physical & Environmental

Dimensions
4.72 × 2.87 × 3.15 inches
Isolation
1 500 V AC
Operating shock
10 G

Certifications

UL Listed
