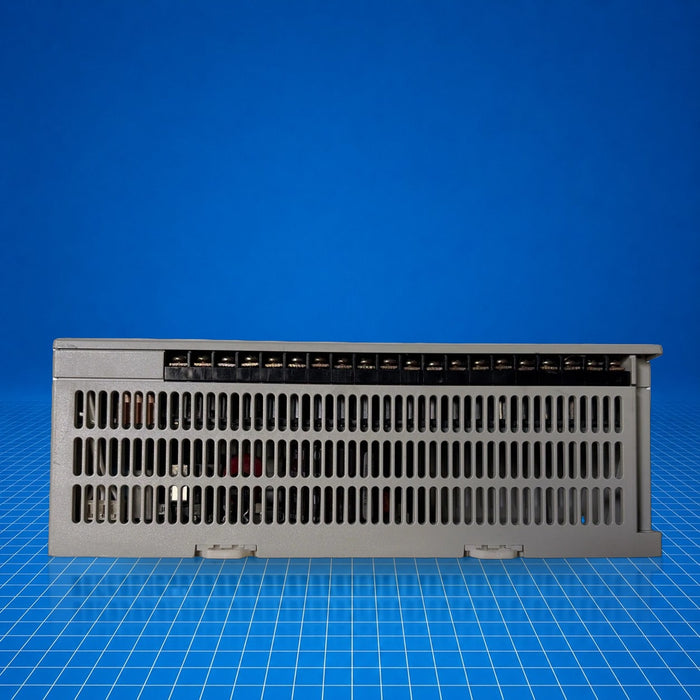

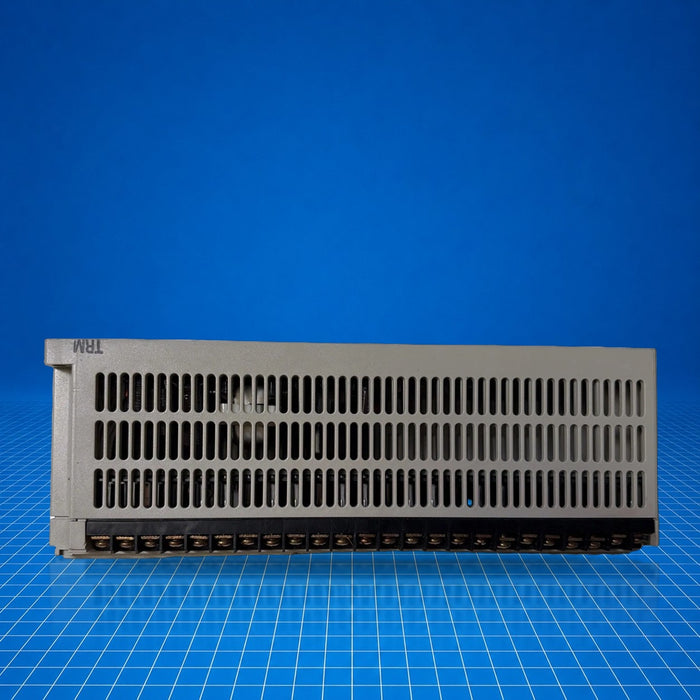

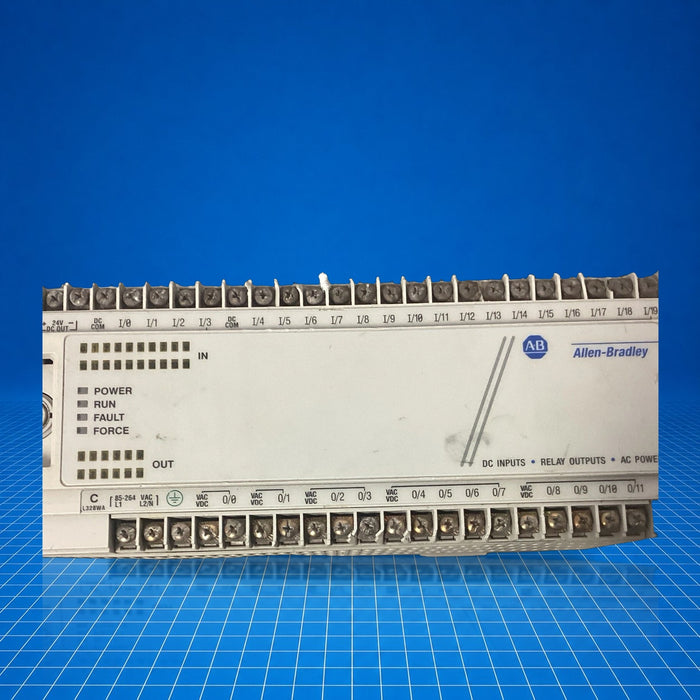

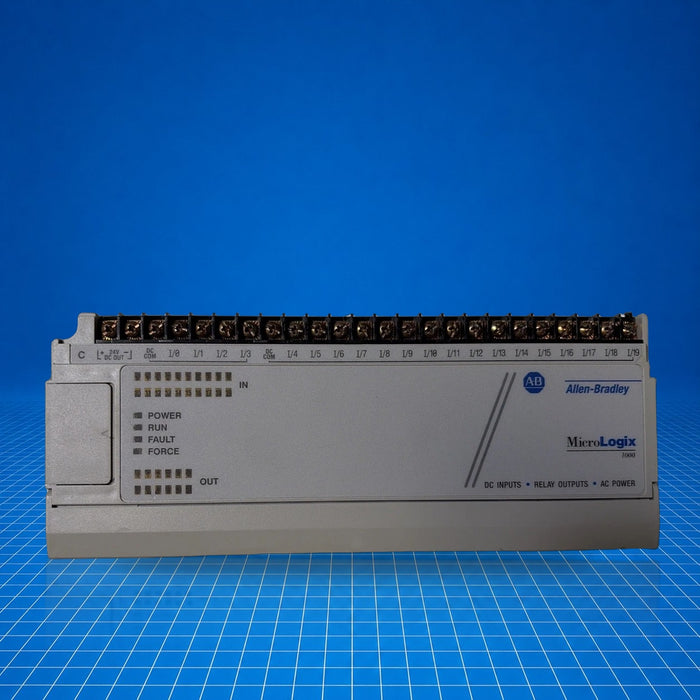

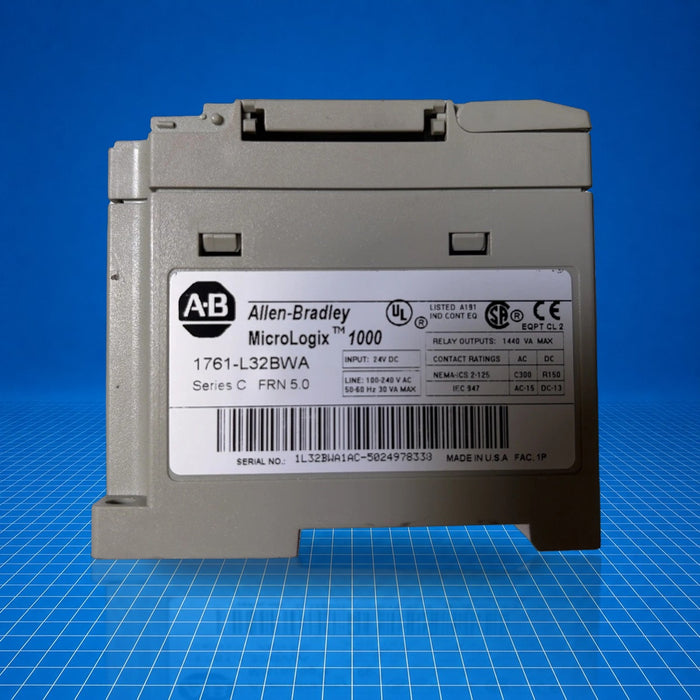

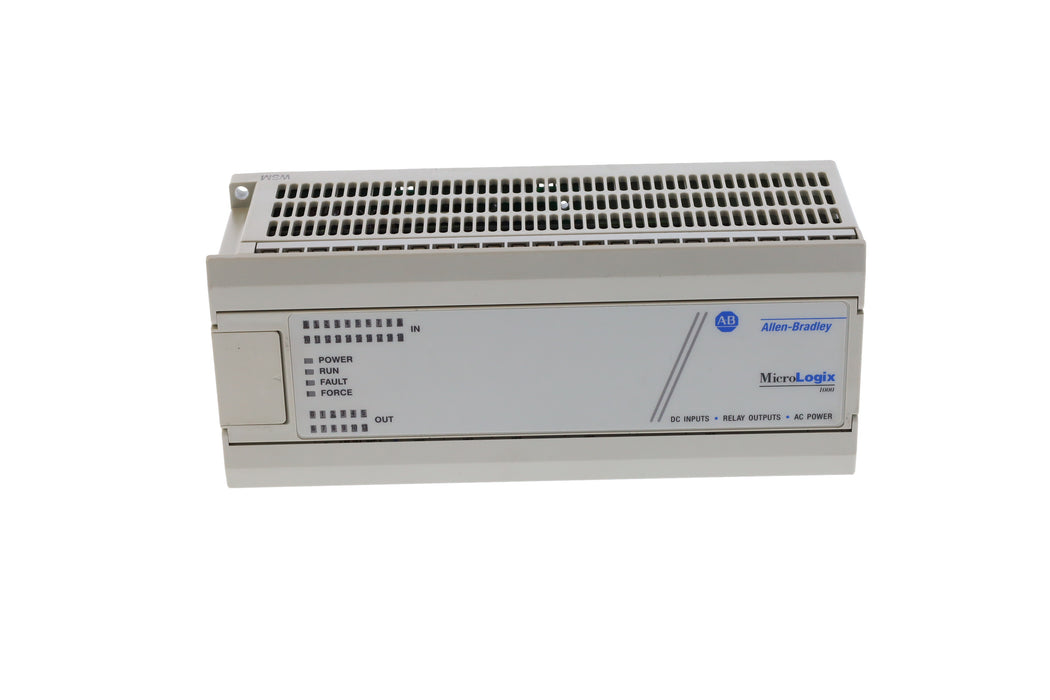

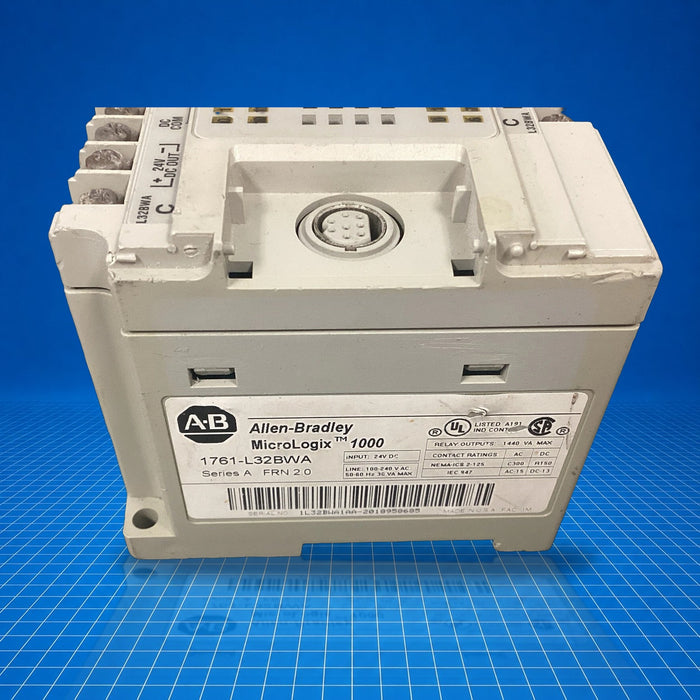

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1761-L32BWA Allen-Bradley

Name: 1761-L32BWA Allen-Bradley
Brand: Allen Bradley
SKU: 1761-L32BWA
Price: 440.0 USD
Availability: InStock

$440.00 - $818.87

$440.00

$440.00 - $818.87

$440.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1761-L32BWA is an Allen-Bradley MicroLogix 1000 series programmable logic controller (PLC) featuring 32 integrated I/O points. It includes 20 discrete 24 V DC inputs and 12 relay outputs, on-board RS-232 communication using DF1 protocol, and an embedded power supply for 120-240 V AC. It is typically applied in compact industrial control systems for standalone machines, I/O consolidation, and legacy system maintenance. This series is discontinued.

Best Suited For

Standalone small machinery control
Legacy MicroLogix 1000 system replacement
Simple discrete I/O control tasks
Field-mounted OEM equipment

Total I/O points

32

Input type

20 × 24 V DC

Output type

12 × relay

Power supply

120-240 V AC

Technical Specifications

I/O & Electrical

Digital inputs

20 × 24 V DC, sinking or sourcing

Digital outputs

12 × relay outputs (up to 125 V DC / 240 V AC)

Communication & Power

Communication port

RS-232, DF1 protocol

Memory

1 KB (≈ 737 instruction, 437 data words) EEPROM

Power supply voltage

85-264 V AC, 47-63 Hz

Physical & Environmental

Operating temperature

0 °C to +55 °C horizontal; 0 °C to +40 °C vertical

Storage temperature

-40 °C to +85 °C

Vibration

Operating: 5 Hz-2 kHz, 0.381 mm/2.5 g; Non-operating: 5 Hz-2 kHz, 0.762 mm/5 g

Shock

Operating: 10 g (DIN-rail), Non-operating: 20 g

Mounting

DIN-rail or screw, 2 in clearance each side

Certifications

UL Listed (Class I, Div 2, Groups A-D), C-UL Class I Div 2 A-D, CE/RCM/EAC compliant; IEC environmental immunity per Installation Instructions
