1762-IF2OF2 Allen-Bradley

Name: 1762-IF2OF2 Allen-Bradley
Brand: Allen Bradley
SKU: 1762-IF2OF2
Price: 480.0 USD
Availability: InStock

$480.00 - $480.00

$480.00

$480.00 - $480.00

$480.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

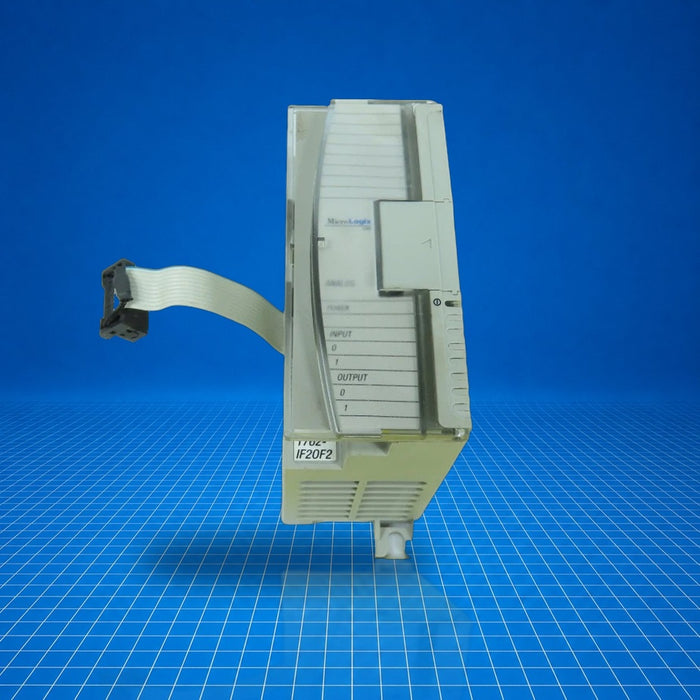

The 1762-IF2OF2 is an Allen-Bradley MicroLogix 1200 series analog combination module featuring two analog inputs and two analog outputs. It integrates into MicroLogix 1200 controllers to facilitate analog signal interfacing for process control tasks. The module supports both voltage and current signals (e.g. 0-10 V and 4-20 mA) with configurable I/O, making it suitable for small-scale industrial applications like pump control, temperature monitoring, and proportional valve actuation using MicroLogix logic systems. 1762-IF2OF2 provides diagnostic LED indication for module status.

Best Suited For

MicroLogix 1200 expansions requiring mixed analog I/O
Applications needing both voltage and current analog interfacing
Panel or DIN-rail mounting in machinery control panels
Environmental monitoring and control loops with MicroLogix

Analog I/O Channels

2 inputs, 2 outputs

Input resolution

12 bit

Output update time

Typical 4.5 ms

Operating temperature

-20 … 65 °C

Technical Specifications

I/O & Electrical

Number of inputs

2 differential (unipolar)

Number of outputs

2 single-ended (unipolar)

Input types supported

Voltage and current, configurable

Output types supported

Voltage and current, configurable

Resolution (inputs)

12 bit

A/D converter type

Successive approximation

D/A converter type

Resistor string

Non-linearity (full scale)

< ±0.59 % (Series B)

Typical overall accuracy

±1.17 % full scale @ -20…65 °C; ±0.5 % @ 25 °C

Input impedance (voltage)

200 KΩ

Common mode voltage range

-27 to 27 V

Open/short-circuit protection

Continuous

Output protection

±32 mA

Resistive load, current output

0 … 500 Ω

Load range, voltage output

>1 kΩ

Reactive load, voltage output

<1 µF

Reactive load, current output

<0.1 mH

Output ripple (0-500 Hz)

< ±0.1 %

Channel diagnostics

Over/under range or open circuit by bit reporting

Communication & Power

Bus current draw, max

40 mA @ 5 V DC; 105 mA @ 24 V DC

Heat dissipation

2.6 W

Physical & Environmental

Dimensions (HxWxD)

90×40×87 mm (tabs height ≈ 110 mm)

Weight, shipping

≈ 0.53 lb (240 g)

Operating temperature

-20 … 65 °C

Storage temperature

-40 … 85 °C

Operating humidity

5 … 95 % non-condensing

Operating altitude

2000 m

Vibration (operating)

5 g @ 10-500 Hz, 0.030 in peak-to-peak

Shock (operating)

30 g

ESD immunity

EN 61000-4-2: 4 kV contact, 8 kV air, 4 kV indirect

Fast transient (burst)

IEC 1000-4-4: 2 kV @ 5 kHz

Surge immunity

IEC 1000-4-5: 1 kV

Conducted immunity

IEC 1000-4-6: 10 V @ 0.15-80 MHz

Radiated immunity

IEC 1000-4-3: 10 V/m, 80-1000 MHz

Certifications

UL Listed HazardousUL Listed

Hazardous Location: Class I, Division 2, Groups A-D (UL 1604; C-UL under CSA C22.2 No. 213). Emissions: EN 50081-2 Class A.
