1762-IT4 Allen-Bradley
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

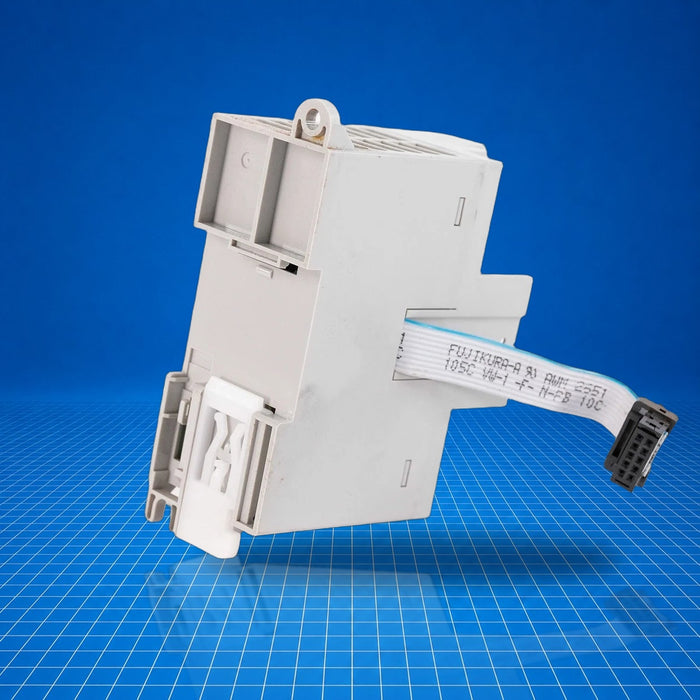

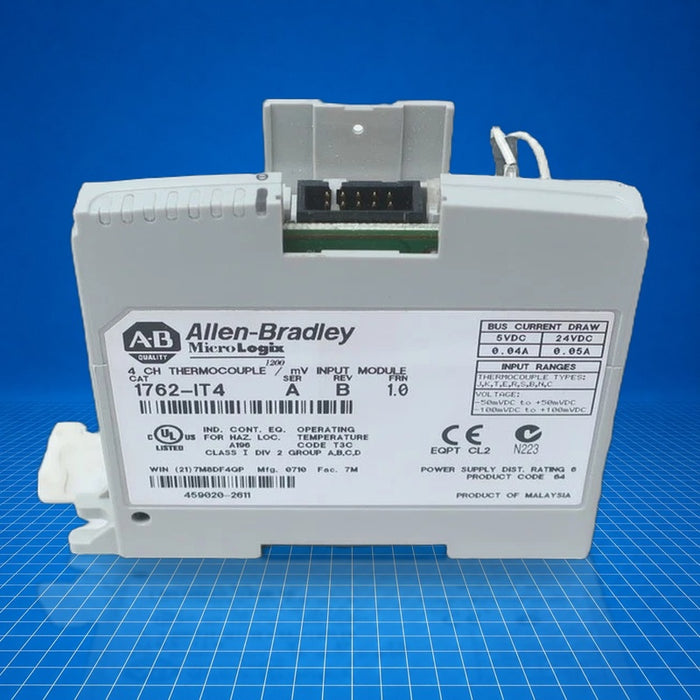

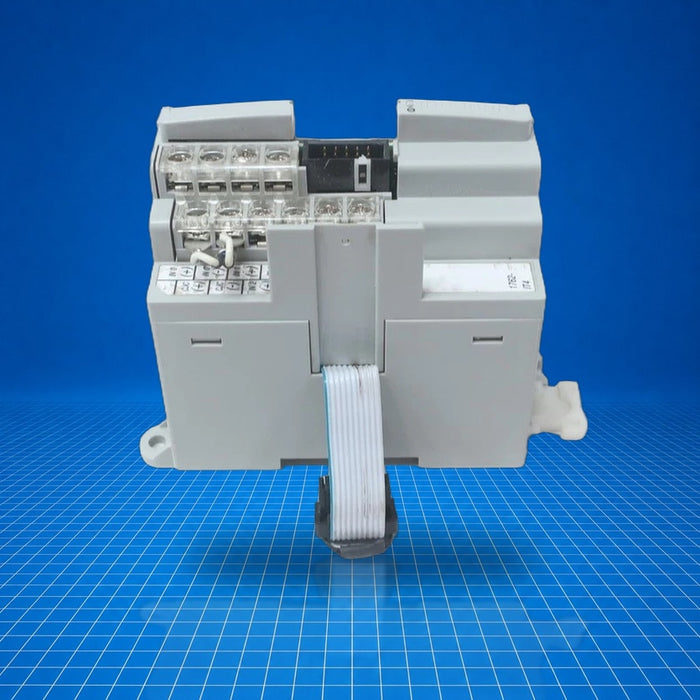

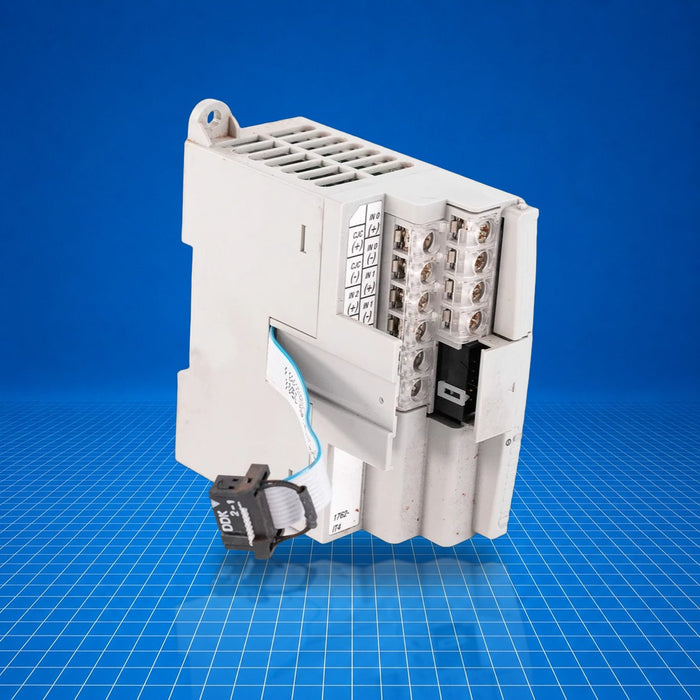

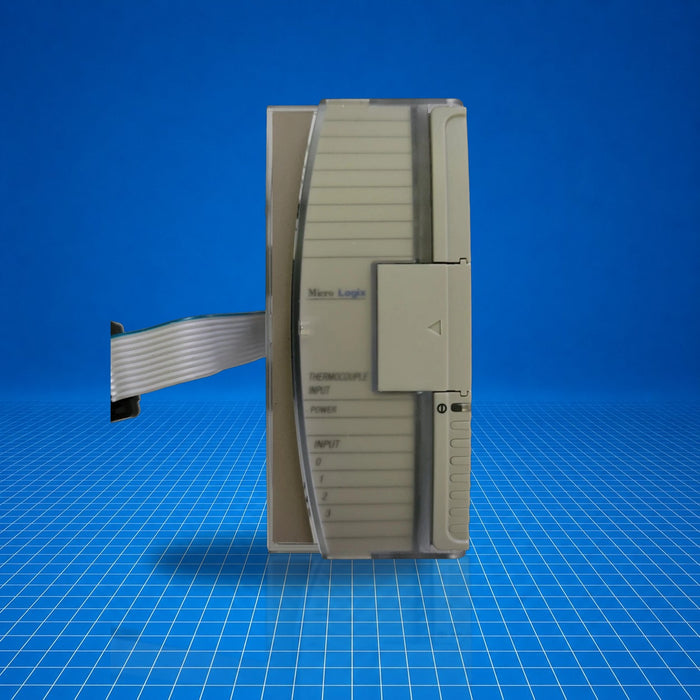

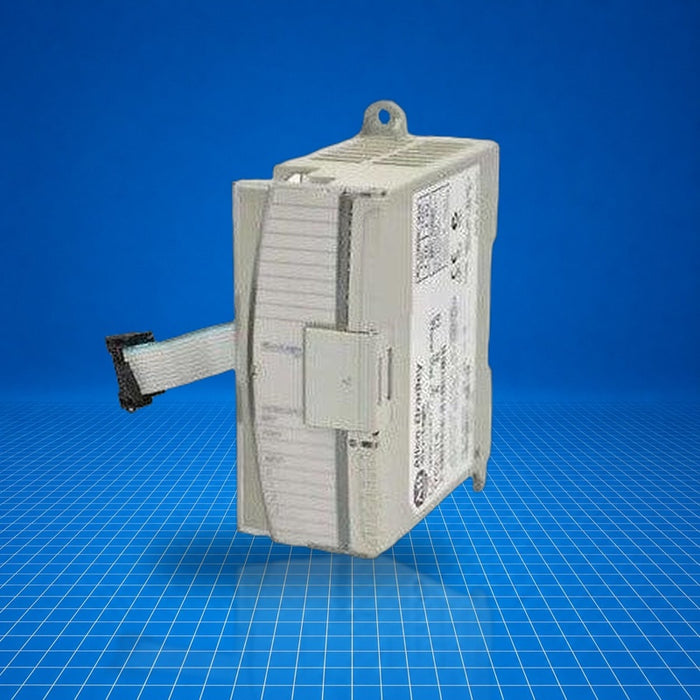

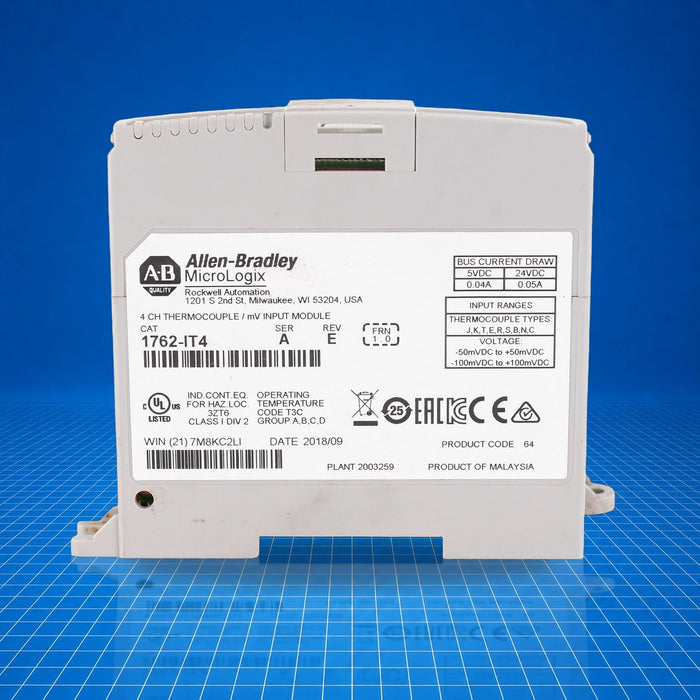

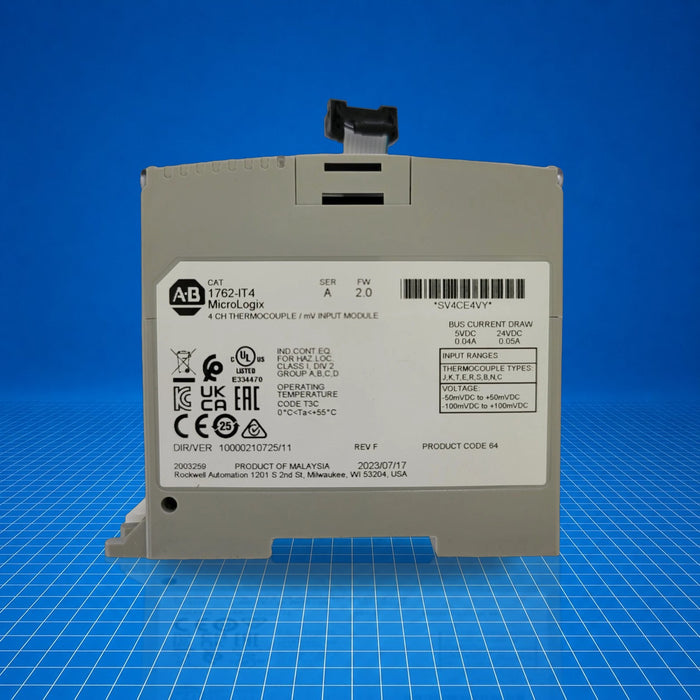

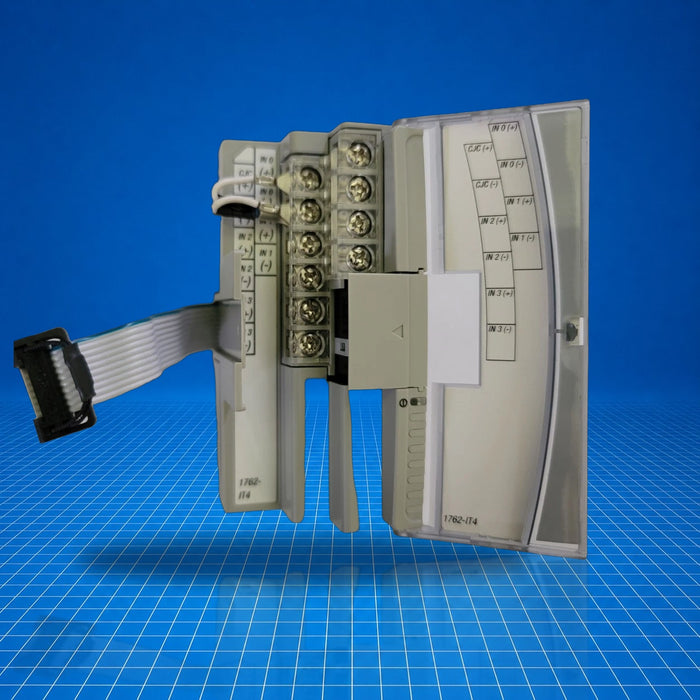

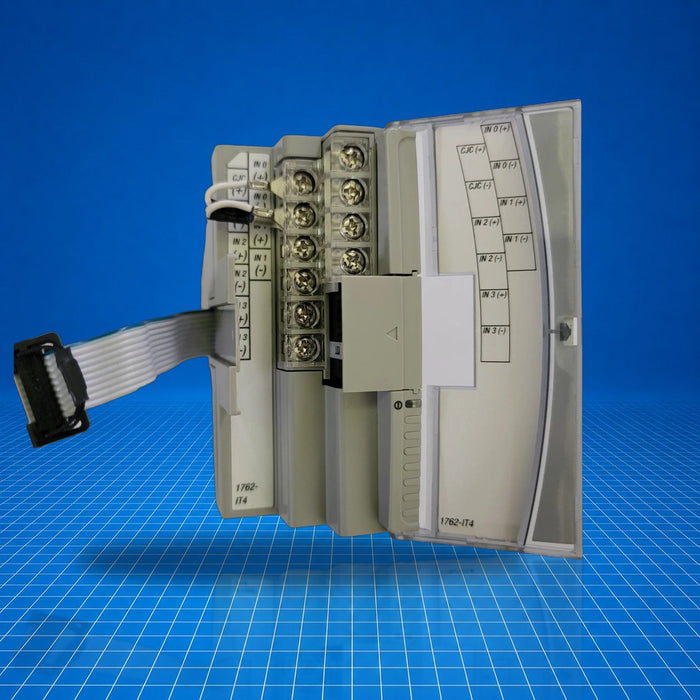

The 1762-IT4 is a MicroLogix 1200 expansion I/O module by Allen-Bradley. It provides four isolated analog input channels configurable for thermocouple or millivolt signals. The module digitizes sensor input using a delta-sigma A/D converter and integrates into CompactLogix/MicroLogix control systems. It supports multiple thermocouple types (J, K, T, E, R, S, B, N, C) and selectable input filtering. Typical applications include temperature monitoring in manufacturing lines, oven or furnace control, refractory or metal processing, and environmental chamber data acquisition. Part number 1762-IT4.
Best Suited For
- Temperature monitoring via thermocouples
- Millivolt signal acquisition
- MicroLogix 1200 expansion I/O systems
- Panel-mounted analog sensing applications
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Hazardous Location: Class I, Division 2, Groups A,B,C,D (UL 1604, C-UL under CSA C22.2 No. 213); Radiated/conducted emissions: EN50081-2 Class A.
