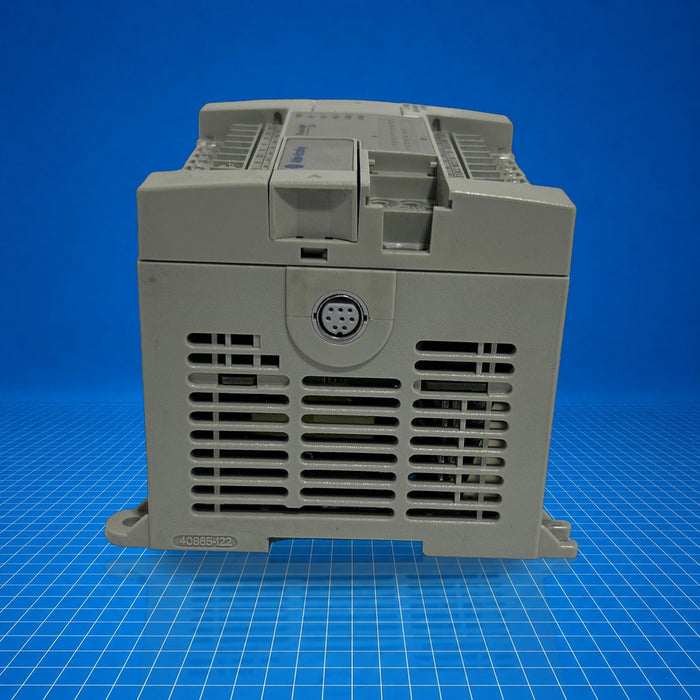

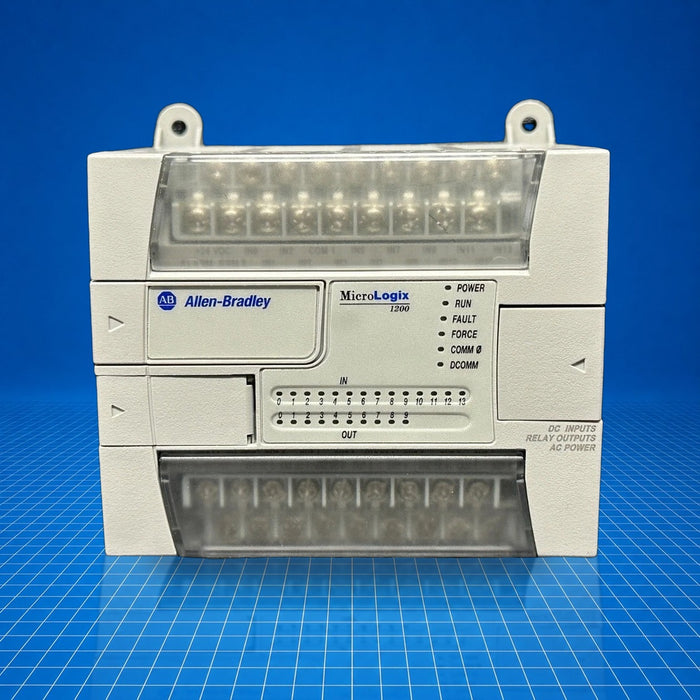

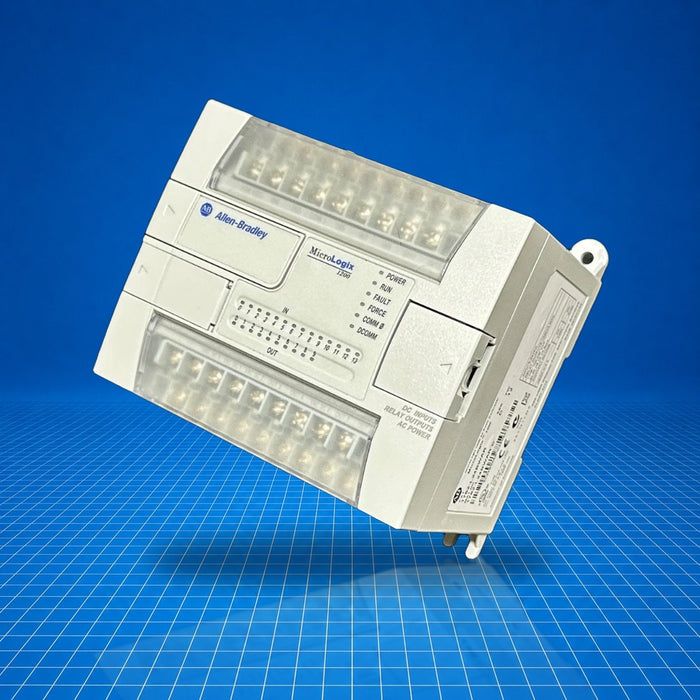

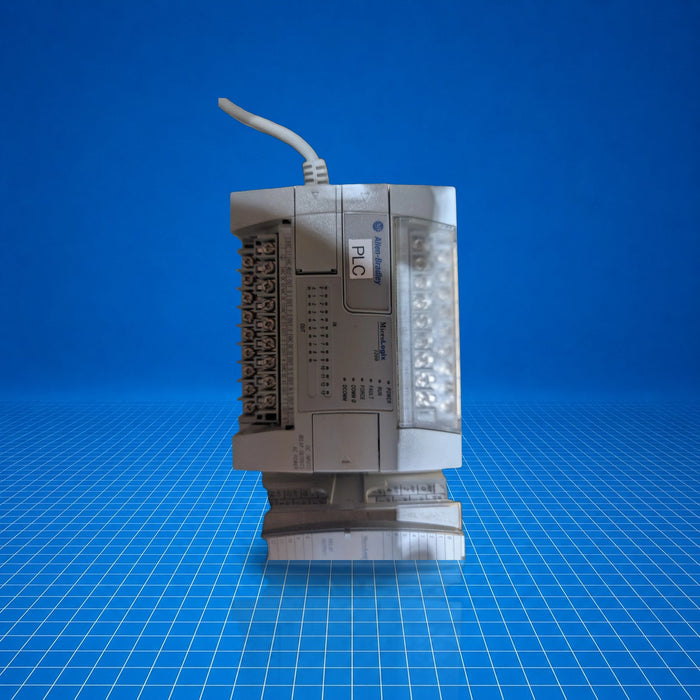

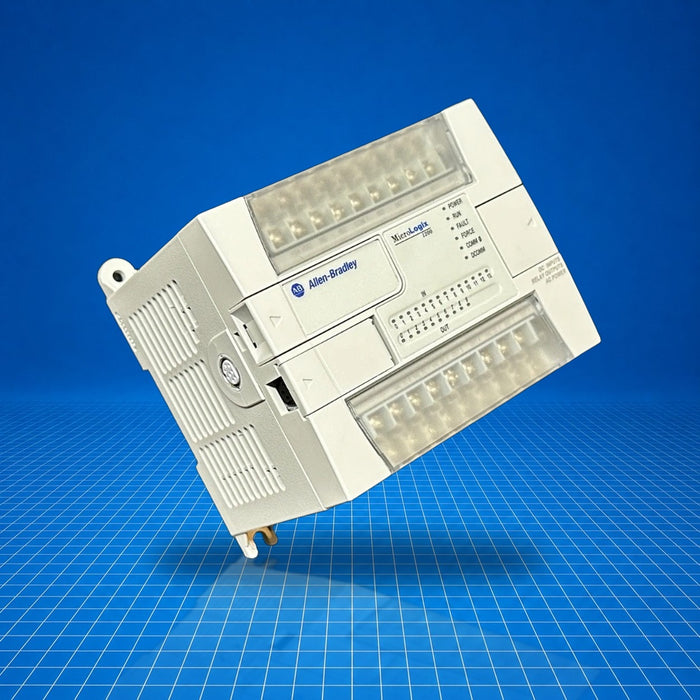

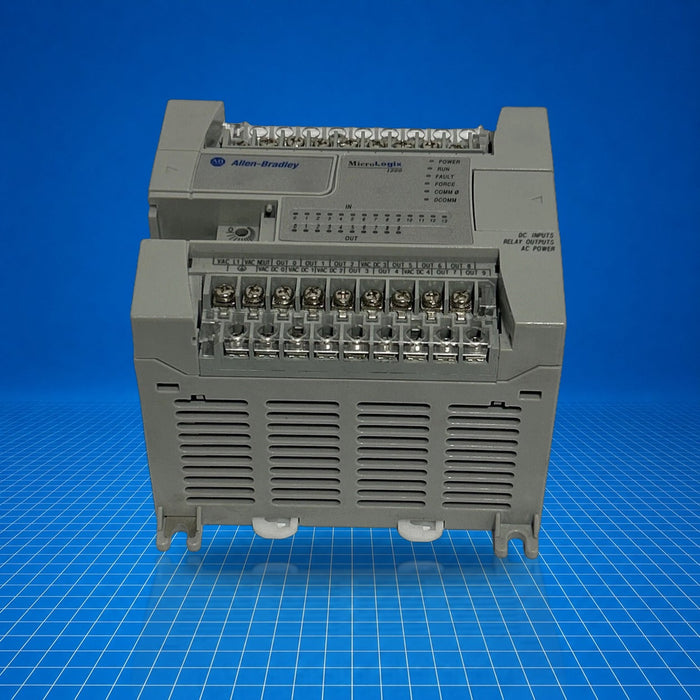

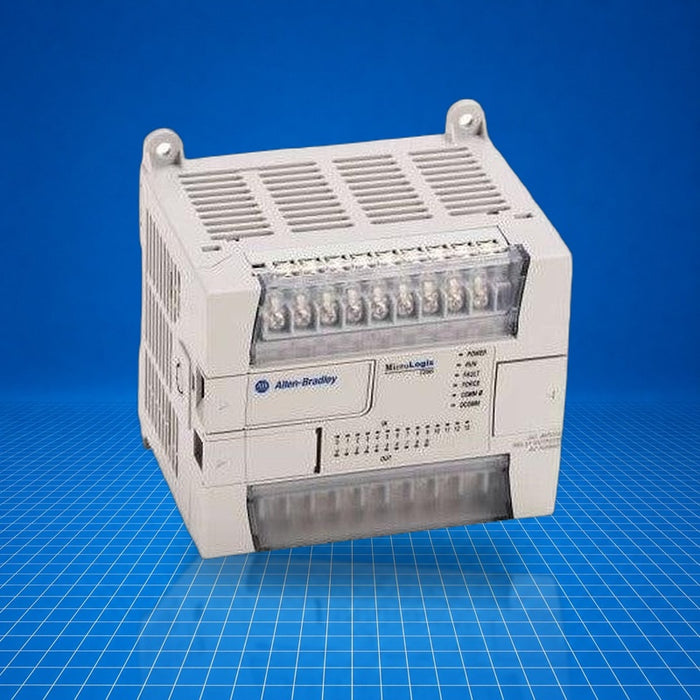

1762-L24BWAR Allen-Bradley
Original price
$600.00
-
Original price
$1,613.85
Original price
$600.00
$600.00
-
$1,613.85
Current price
$600.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

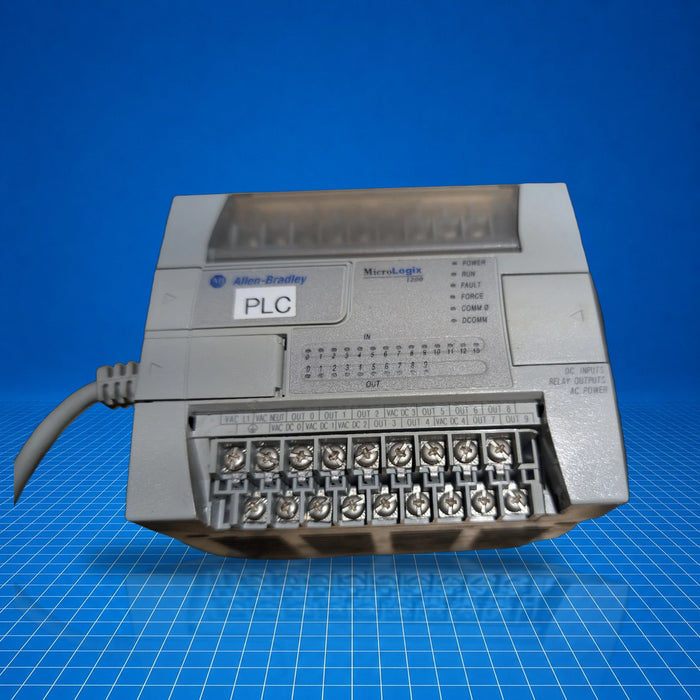

The Allen-Bradley 1762-L24BWAR is a MicroLogix 1200 series embedded I/O programmable controller featuring 24V DC power and a dedicated Programming/HMI port. It provides 10 standard and 4 fast 24 V DC inputs alongside 10 relay outputs. With onboard 6 KB memory and dual serial ports (RS-232C), it fits compact panel installations for discrete control tasks in machines, packaging, or OEM equipment. 1762-L24BWAR integrates communication via DF1, DH-485, Modbus RTU, and ASCII protocols.
Best Suited For
- Compact machine discrete I/O control
- Applications requiring fast 24 V DC inputs
- Installations needing simultaneous programming and HMI connection via Programming/HMI port
- Legacy systems using DF1, DH-485 or Modbus RTU networks
Standard DC Inputs
10 × 24 V DC
Fast DC Inputs
4 × 24 V DC
Relay Outputs
10
Onboard Memory
6 KB
Technical Specifications
I/O & Electrical
Standard inputs
10 × 24 V DC
Fast inputs
4 × 24 V DC
Outputs
10 relay
Communication & Power
Power supply
24 V DC
Communication protocols
DF1, DH-485, Modbus RTU, ASCII
Comm ports
2 × RS-232C (includes Programming/HMI port)
Physical & Environmental
Dimensions (H×W×D)
90 mm × 110 mm × 87 mm
Weight
0.9 kg (2.0 lbs)
Heat dissipation
15.7 W
Input voltage range
24 V DC (-15%, +10%), Class 2 SELV

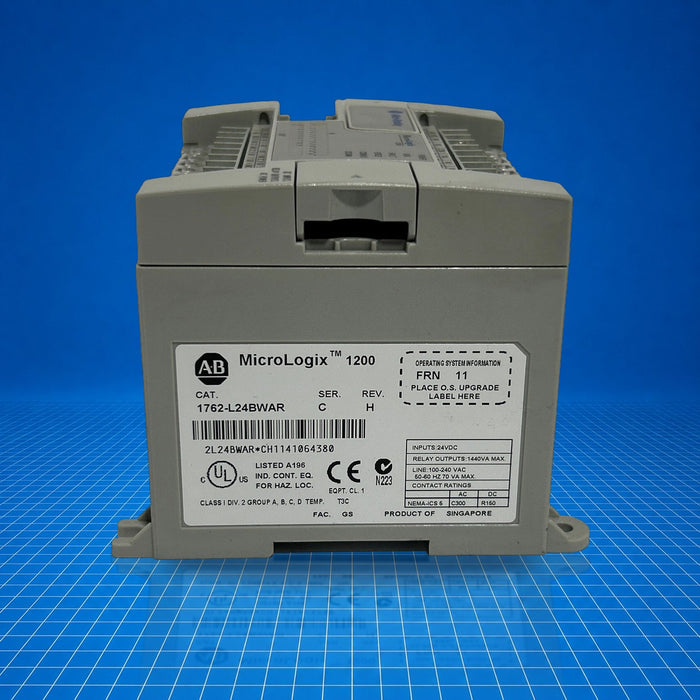

Certifications
UL ListedCSA C22.2Class I Div 2
Certified for use in Class I, Division 2, Groups A, B, C, D hazardous locations; UL 508, CSA C22.2 No. 142 industrial control equipment.
