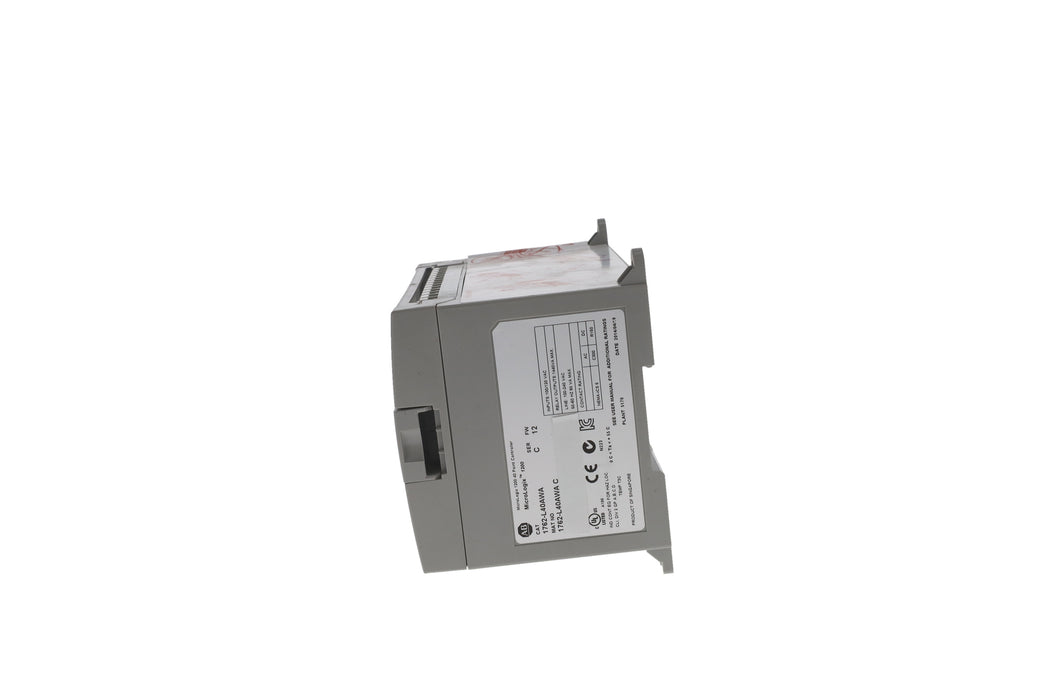

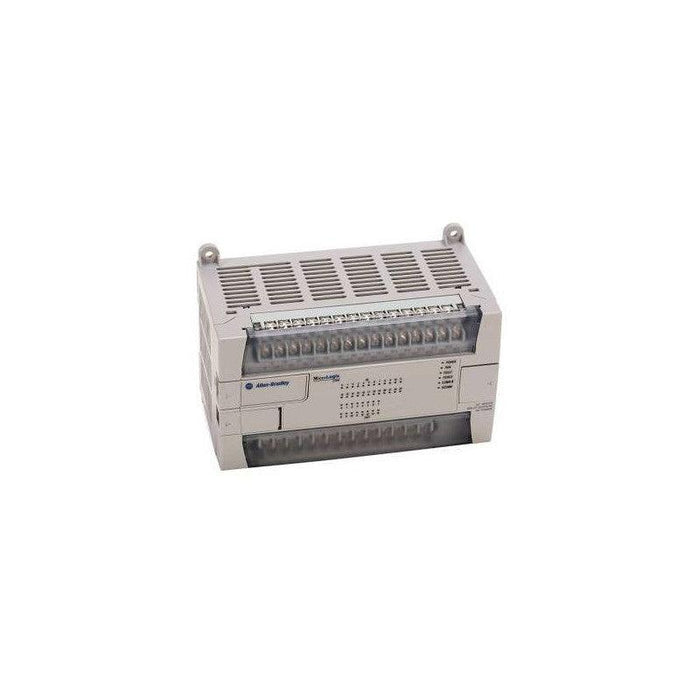

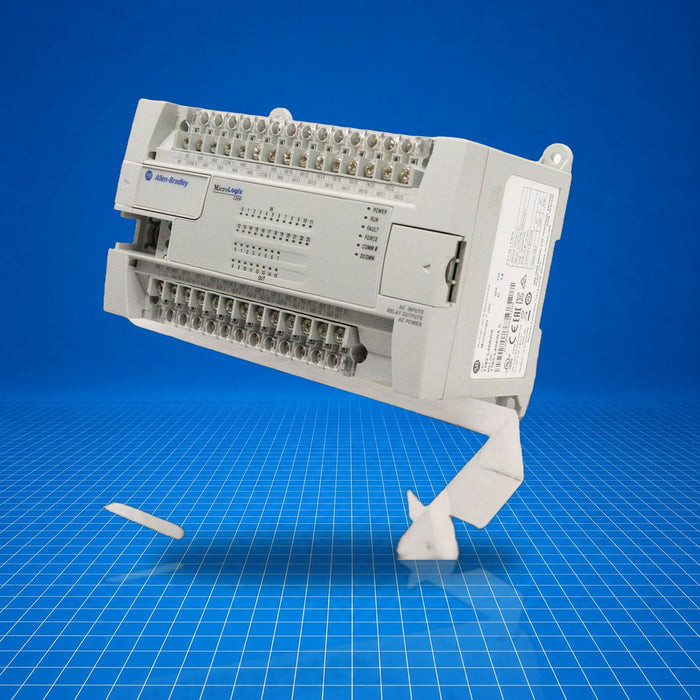

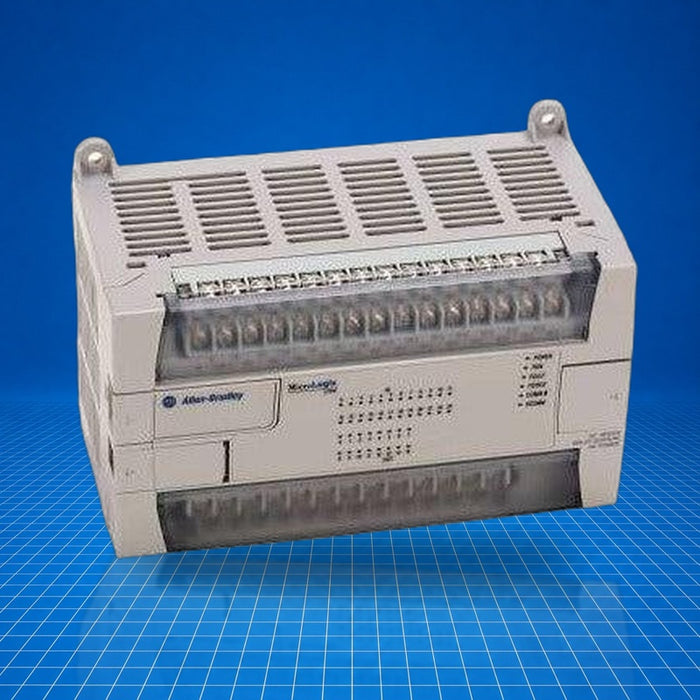

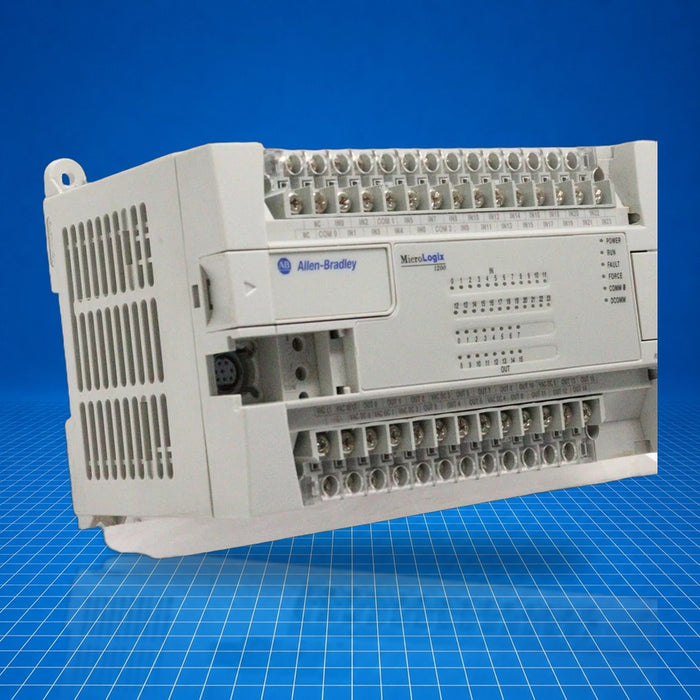

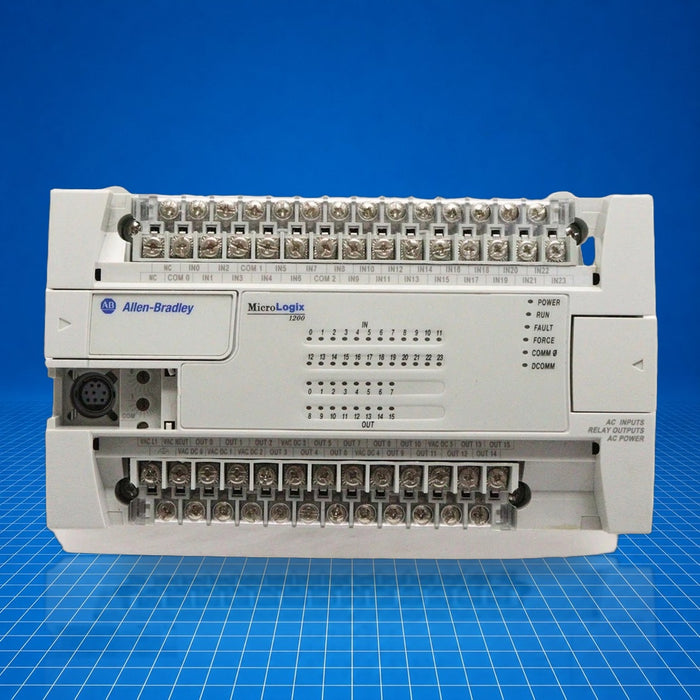

1762-L40AWA Allen-Bradley
Original price
$2,437.75
-
Original price
$3,300.00
Original price
$2,437.75
$2,437.75
-
$3,300.00
Current price
$2,437.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1762-L40AWA is a MicroLogix 1200 series programmable controller by Allen-Bradley. It integrates 24 AC digital inputs and 16 relay outputs, operating on 120 / 240 V AC input power at 47-63 Hz. The controller distributes control logic, interfaces with field devices (e.g. limit switches, solenoids), and supports communications via DH-485 and Modbus. It is typically used in industrial applications such as multi-zone conveyor systems, packaging machines, and AC-based machine control systems.
Best Suited For
- AC-based sensing and actuation (24 × 120 V AC inputs)
- Relay control of external loads (16 relay outputs)
- Medium-size machine control (e.g. conveyors, machine tools)
- Environments requiring DH-485 or Modbus communication
Digital inputs
24 × 120 V AC
Relay outputs
16
Input power
120-240 V AC, 47-63 Hz
Heat dissipation
21 W
Inrush current
25 A for 8 ms @ 120 V AC; 40 A for 4 ms @ 240 V AC
Technical Specifications
I/O & Electrical
Digital inputs
24 × 120 V AC (79-132 V AC on-state)
Relay outputs
16
On-state voltage range (inputs)
79-132 V AC
Off-state voltage (inputs)
0-20 V AC
On-state current (inputs)
12 mA @ 120 V AC
Off-state leakage current (inputs)
2.5 mA max.
Inrush current
25 A for 8 ms @ 120 V AC; 40 A for 4 ms @ 240 V AC
Communication & Power
Input power
100-240 V AC (-15%, +10%) @ 47-63 Hz
Power consumption / heat dissipation
21 W
Communication protocols
DH-485, Modbus
Physical & Environmental
Dimensions (H×W×D)
90 × 160 × 87 mm
Weight
1.1 kg (2.4 lbs)
Operating temperature
per standard MicroLogix 1200 (consult instruction manual)
Certifications
UL ListedCSA
UL 508 (Industrial Control Equipment) and CSA C22.2 No. 142 for hazardous locations, Class I, Division 2 Groups A, B, C, D.
