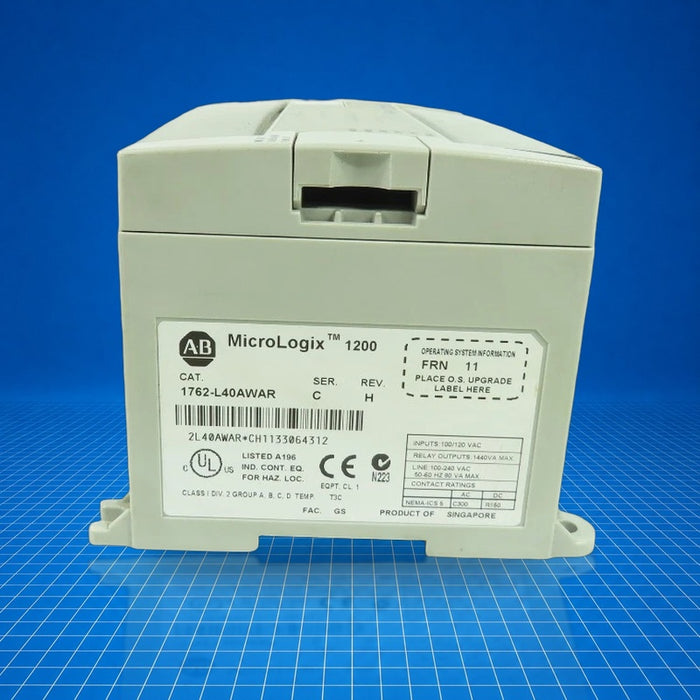

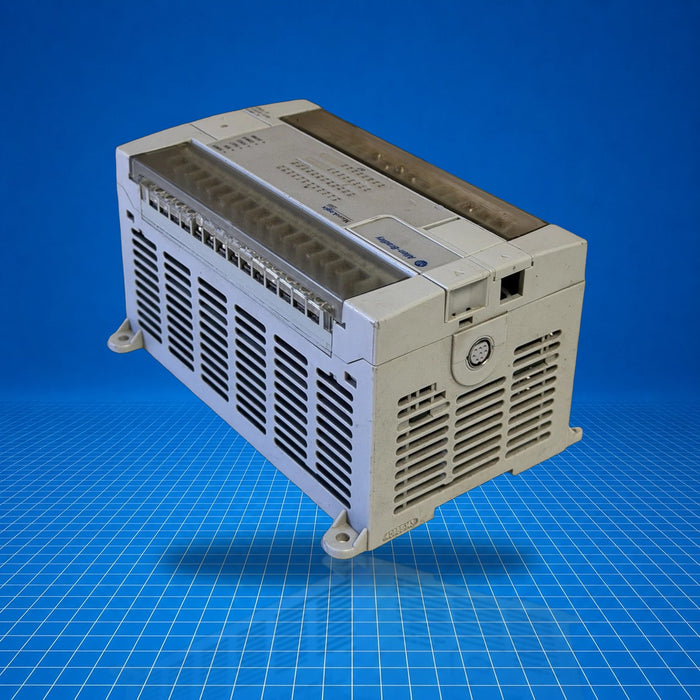

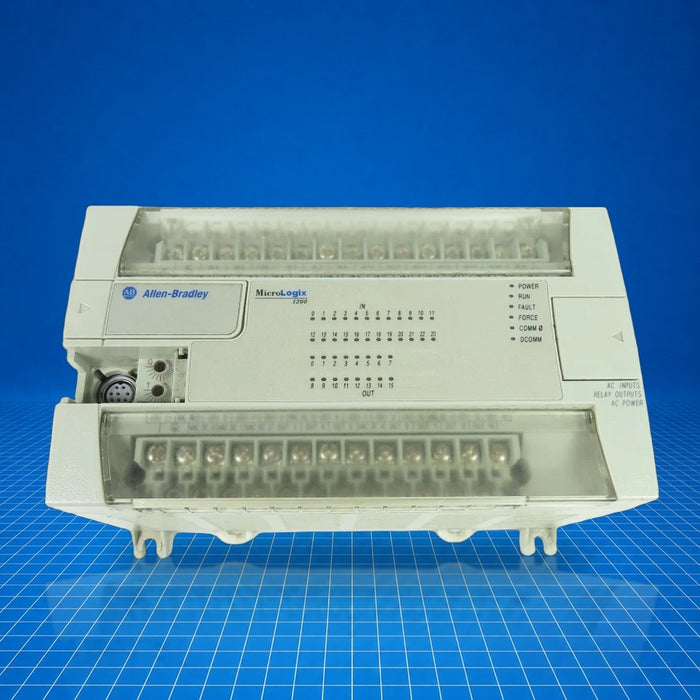

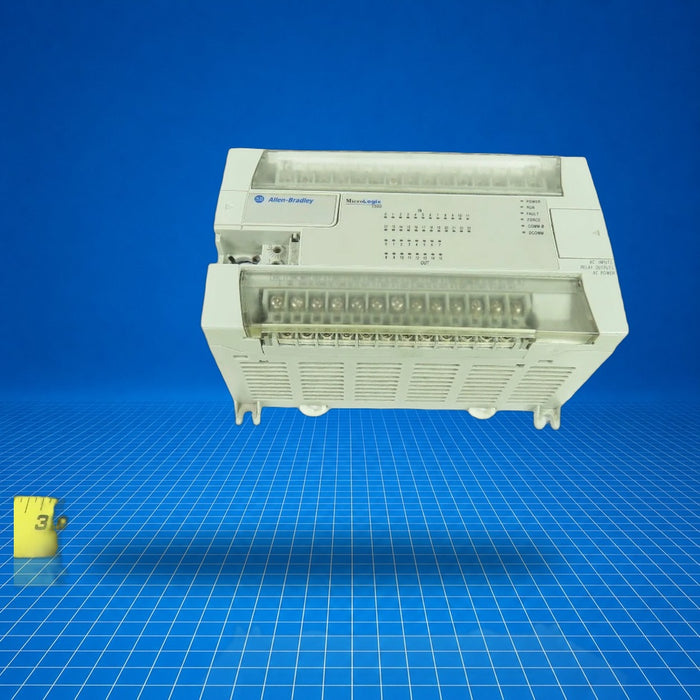

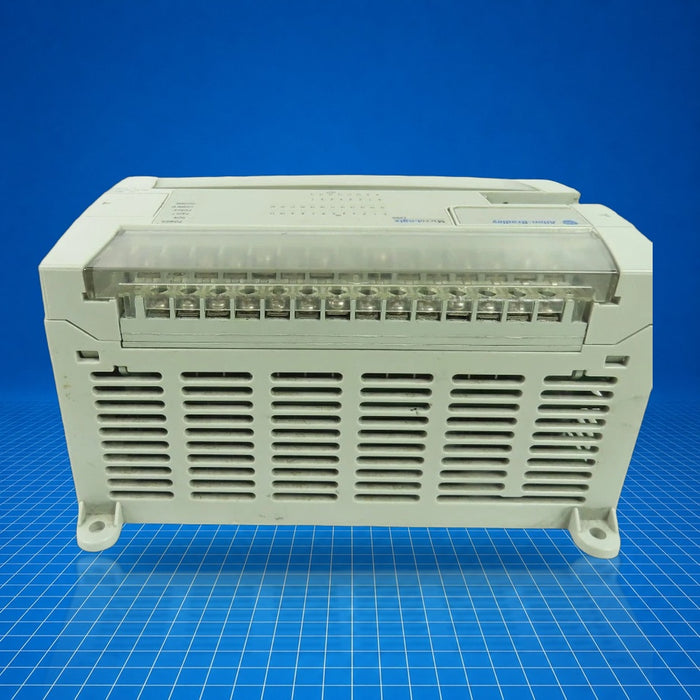

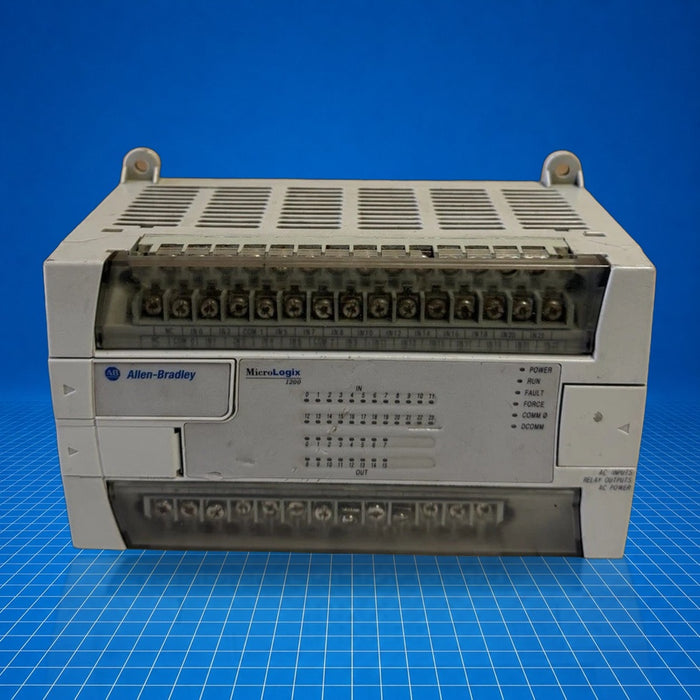

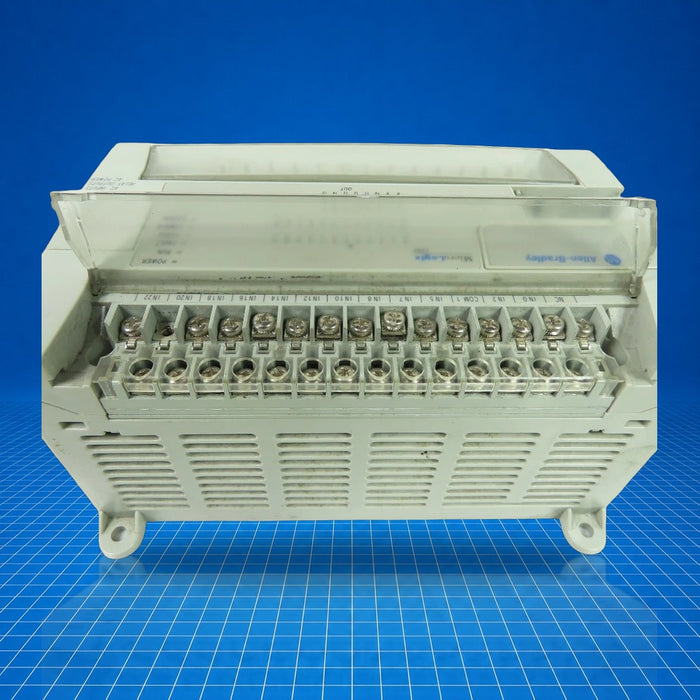

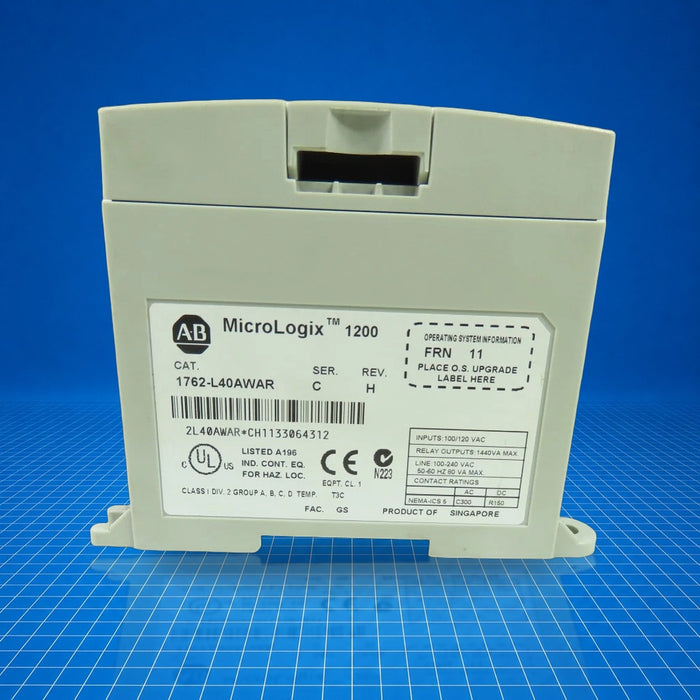

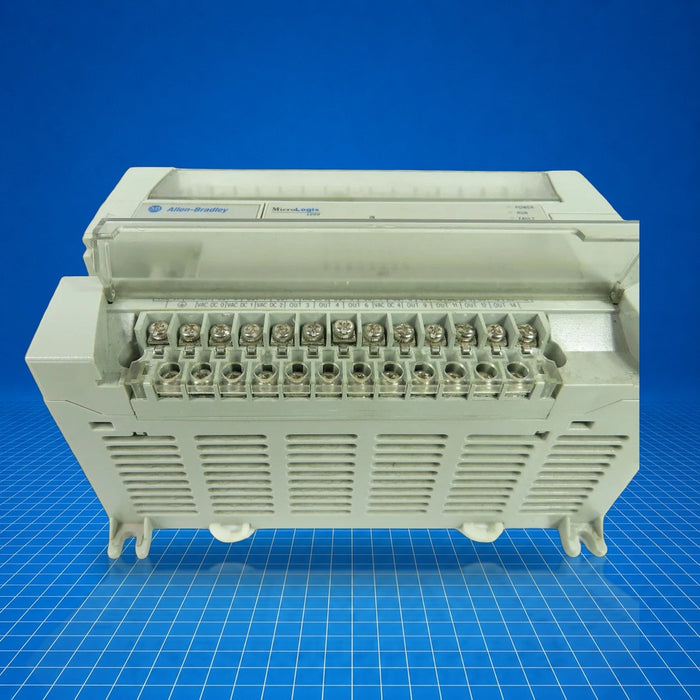

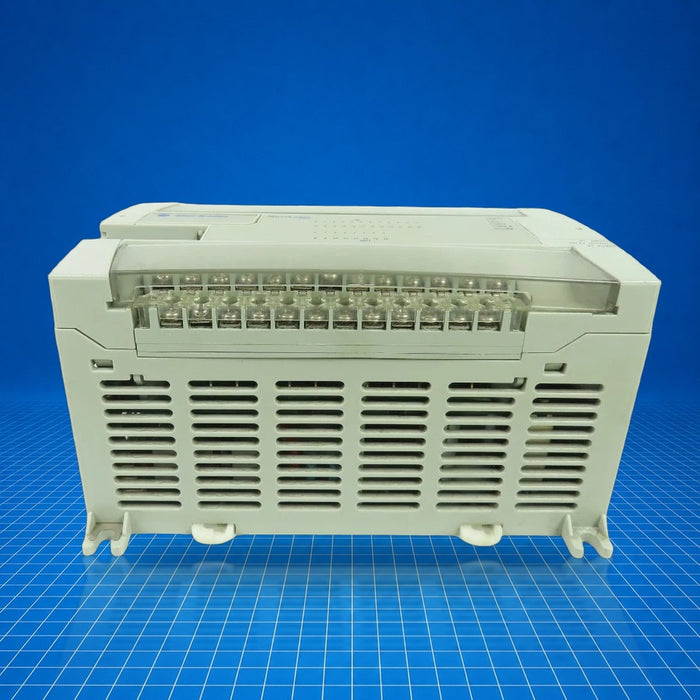

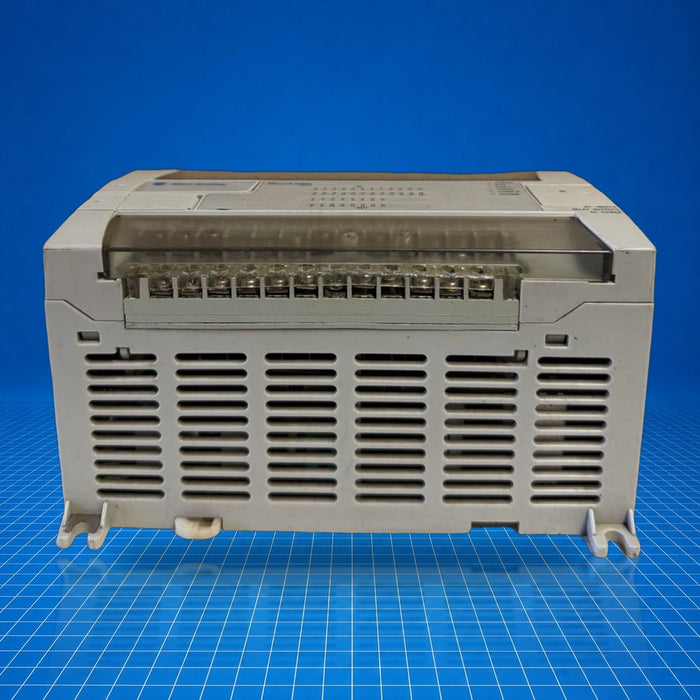

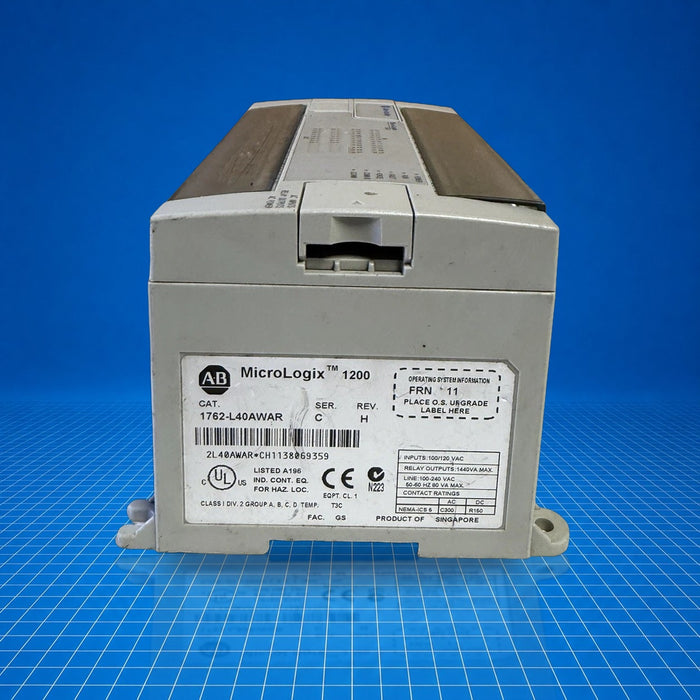

1762-L40AWAR Allen-Bradley
Original price
$1,970.61
-
Original price
$12,622.50
Original price
$1,970.61
$1,970.61
-
$12,622.50
Current price
$1,970.61
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1762-L40AWAR is a MicroLogix 1200 series programmable logic controller by Allen-Bradley designed for embedded discrete control. It integrates 24 120 V AC digital inputs and 16 relay outputs, plus dual serial communication ports supporting DF1, DH-485, Modbus RTU, and ASCII, and includes a programming/HMI port. It serves as a compact standalone controller in mid-level industrial control systems, including machine control, conveyor logic, or process monitoring applications. 1762-L40AWAR provides base I/O and expandable capability via 1762 expansion modules. Part number: 1762-L40AWAR.
Best Suited For
- Standalone machine control with AC field devices
- Conveyor or multi-zone limit switch logic
- Process monitoring with relay actuation
- Small-scale systems requiring serial protocol interfacing
Digital inputs
24 × 120 V AC
Relay outputs
16
Communication ports
2 serial (DF1, DH-485, Modbus RTU, ASCII)
Memory
6 KB
Status
Discontinued (as of Oct 31 2021)
Technical Specifications
I/O & Electrical
Digital inputs
24 x 120 V AC
Outputs
16 relay
Input voltage range
120 V AC; 85-265 V AC
Relay contact rating
24-125 V DC; 120-240 V AC
Communication & Power
Communication protocols
DF1, DH-485, Modbus RTU, ASCII
Communication ports
2 serial ports (one embedded, one programming/HMI)
Memory
6 KB
Power consumption
82 VA
Inrush current
25 A for 8 ms @120 V AC; 40 A for 4 ms @240 V AC
Physical & Environmental
Operating temperature
0 °C to 55 °C
Weight
1.00 lb (0.45 kg)
Dimensions
Depth 87 mm; Height 90 mm (manufacturer)
