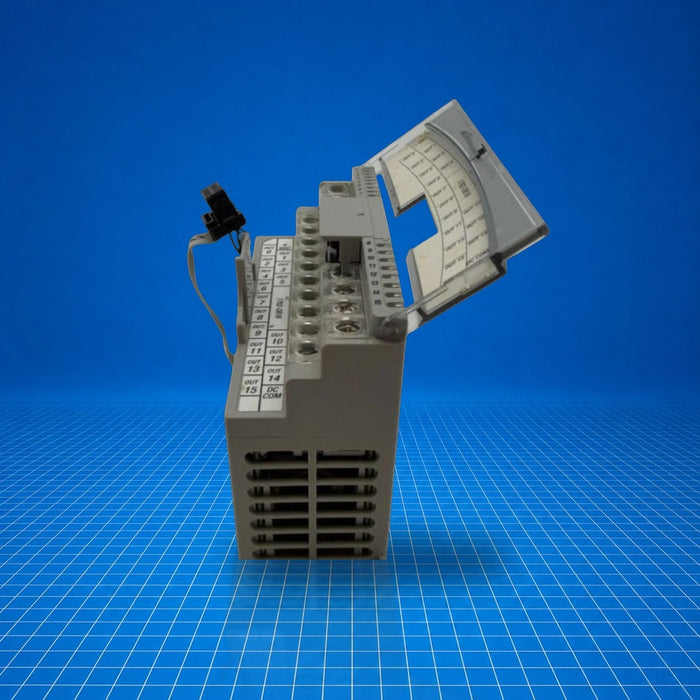

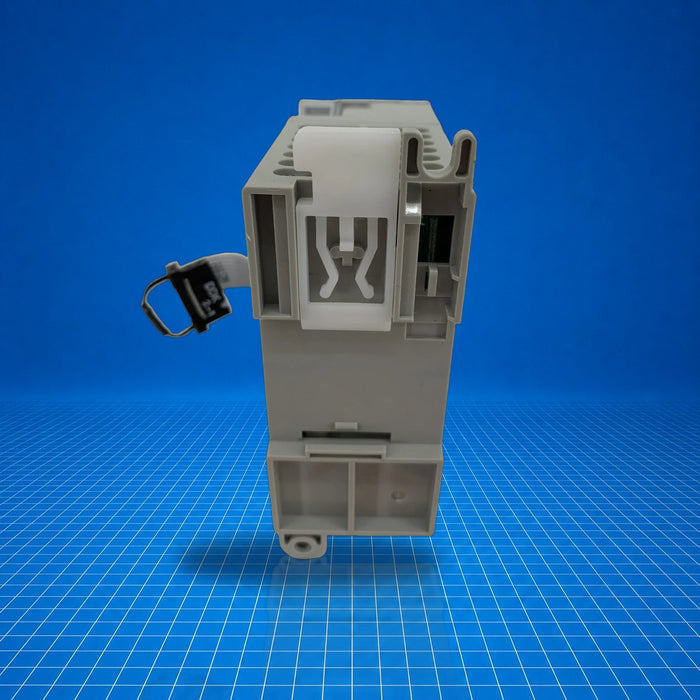

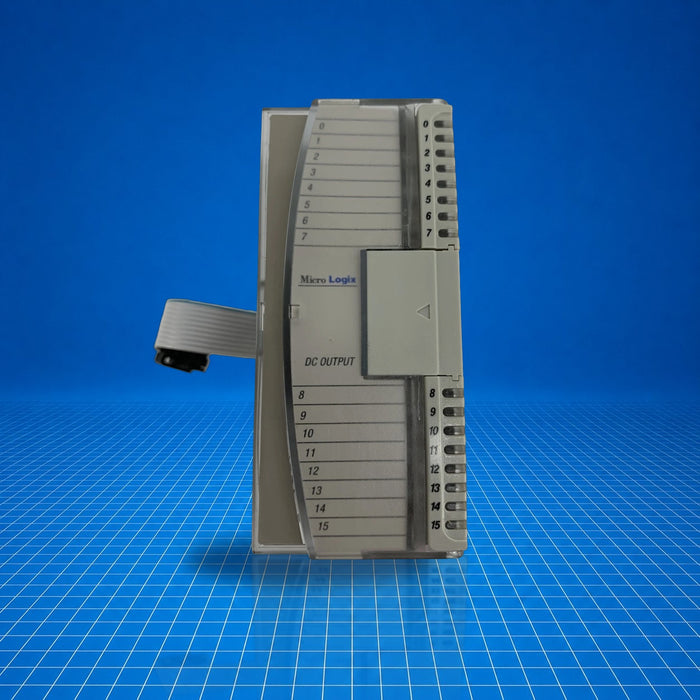

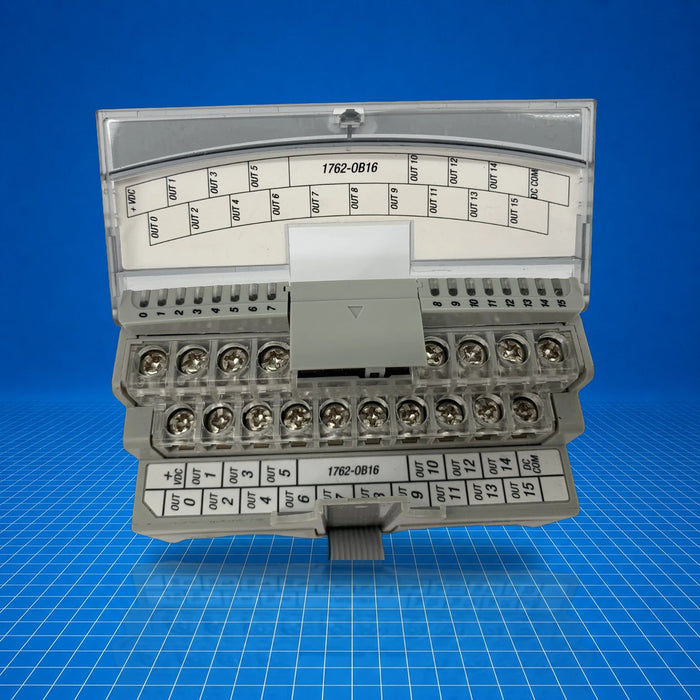

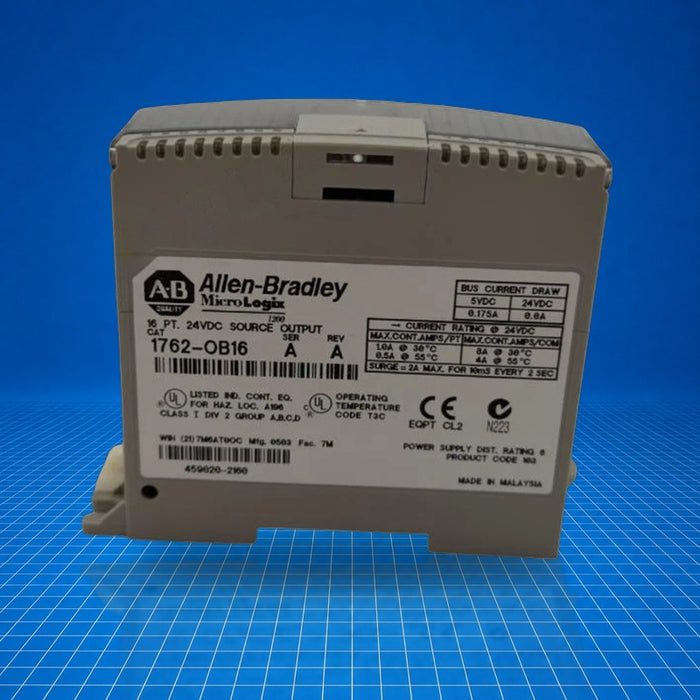

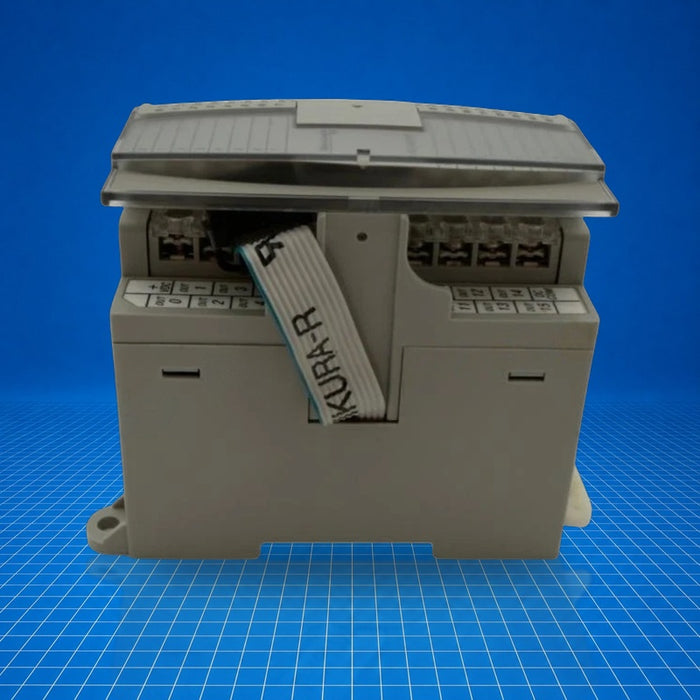

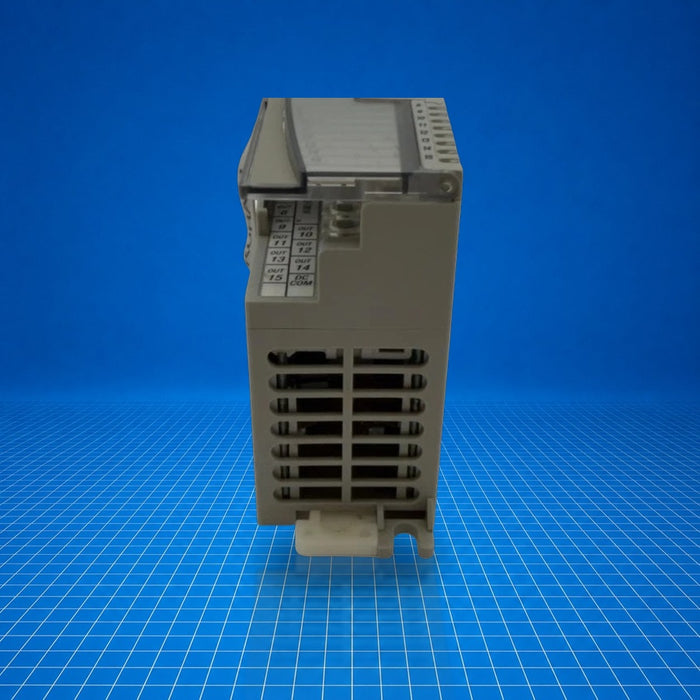

1762-OB16 Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1762-OB16 Allen-Bradley

$450.00 - $540.00
$450.00
$450.00 - $540.00
$450.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$450.00
5 in stock
New / Open-Box Surplus
Need a Specific Revision?
$540.00
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (5) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

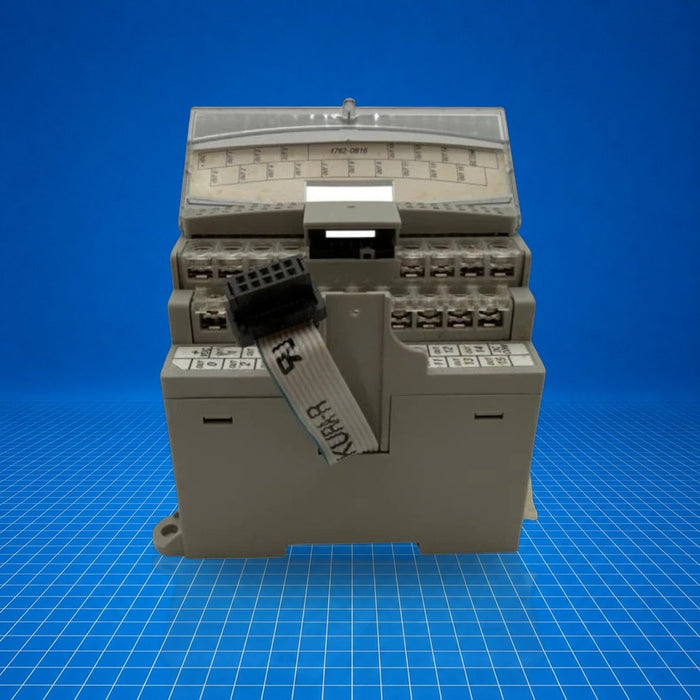

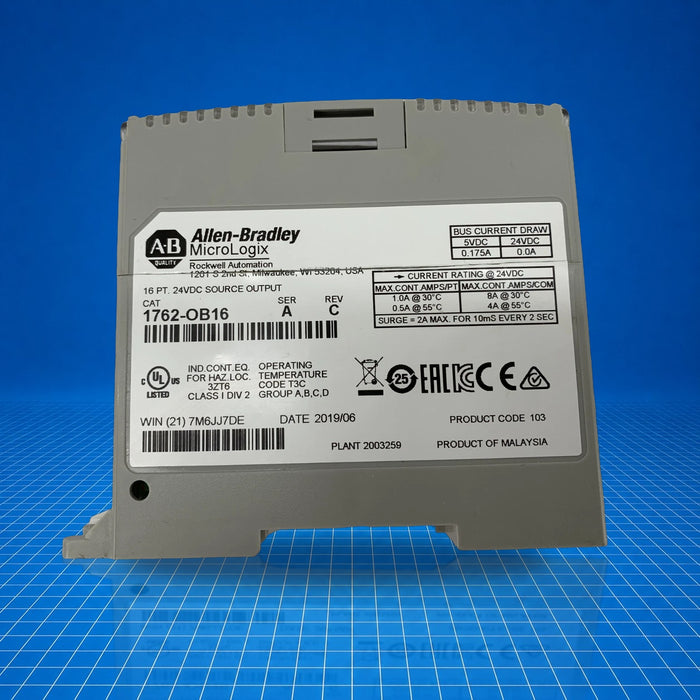

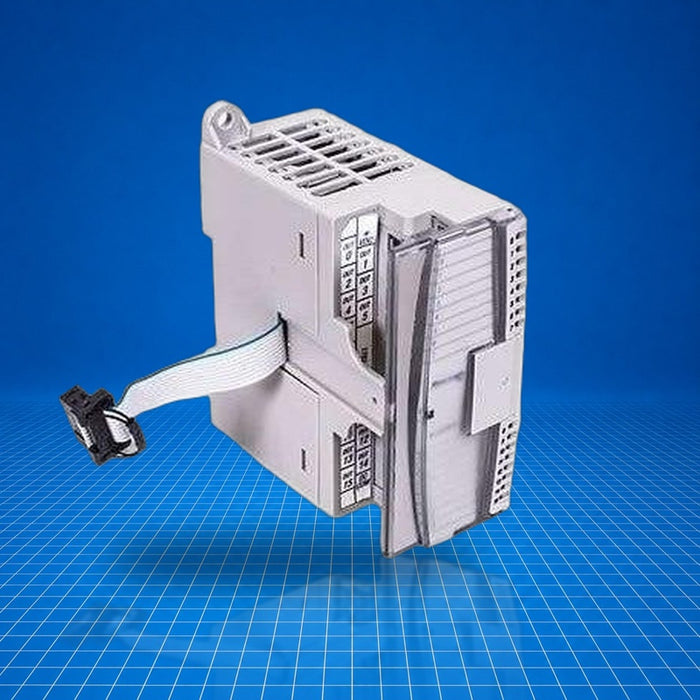

The 1762-OB16 is an Allen-Bradley MicroLogix 1200 expansion module providing sixteen 24 V DC source-type digital outputs. It extends the I/O capacity of MicroLogix 1100/1200/1400 controllers by supplying sixteen individually controlled outputs. Typical uses include activating indicators, drive enable circuits, solenoids, and other DC-powered actuators in industrial control panels and machine control applications. Part number 1762-OB16 integrates into the MicroLogix 1200 platform and mounts on DIN rail or panel as part of a modular I/O system.

Best Suited For

  • MicroLogix 1200 controller expansion
  • Driving DC actuators and indicators
  • Control systems requiring 16 discrete source outputs
  • Panel-mounted modular control installations
Digital outputs
16
Voltage range
20.4…26.4 V DC
Max continuous current/module (30 °C)
8 A
Heat dissipation (max)
2.9 W @ 30 °C
Operating temperature
-20…65 °C

Technical Specifications

I/O & Electrical

Number of outputs
16
Output type
24 V DC source, solid-state
Operating voltage
20.4…26.4 V DC
On-state voltage drop, max
1.0 V DC
Off-state leakage current, max
1.0 mA
On-state current, min
1.0 mA
Continuous current per point, max
1.0 A @ 30 °C; 0.5 A @ 55 °C
Continuous current per common/module, max
8 A @ 30 °C; 4 A @ 55 °C
Surge current, max
2.0 A (repeatable every 2 s for 10 ms)
Bus current draw, max
175 mA @ 5 V DC (0.88 W)
Heat dissipation, max
2.9 W @ 30 °C; 2.1 W @ 55 °C
Signal delay (resistive load)
On delay: 0.1 ms; Off delay: 1.0 ms

Communication & Power

Bus current draw
175 mA @ 5 V DC (0.88 W)

Physical & Environmental

Width
40.4 mm
Height
90 mm
Depth
87 mm
Weight
235 g
Operating temperature
-20…65 °C
Storage temperature, min
-40 °C
Operating humidity
5…95 % non-condensing
Shock (operating)
30 G panel-mounted, 3 pulses per axis; relay ops: 7 G
Vibration (operating)
10…500 Hz, 5 G, 0.030 in. peak-to-peak, 2 hr per axis; relay ops: 1.5 G
Altitude
up to 2000 m

Certifications

UL Listed Hazardous Location Class I Div 2C-ULEMC IEC rated

Hazardous Location, Class I Division 2 Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213). EMC immunity per IEC 1000-4-2/-3/-4/-5/-6 and emissions EN50081-2 Class A.

1-Year Warranty

Every tested unit is backed by our free 1-year PLC Department warranty, direct from us.

Fast Shipping

Free ground shipping. Orders by 1 PM CST ship same-day, with overnight available.

USA Stock

Sourced and shipped from Texas, USA. Never anonymous overseas marketplace stock.

30-Day Returns

Hassle-free RMA. If the part is not right for your application, send it back within 30 days.

Reseller Options →

Resellers welcome. Reach out for volume pricing and we will get you set up.

Talk to a Real Person

Fast answers on stock, revisions, and shipping. (833) 800-7748 or live chat.
