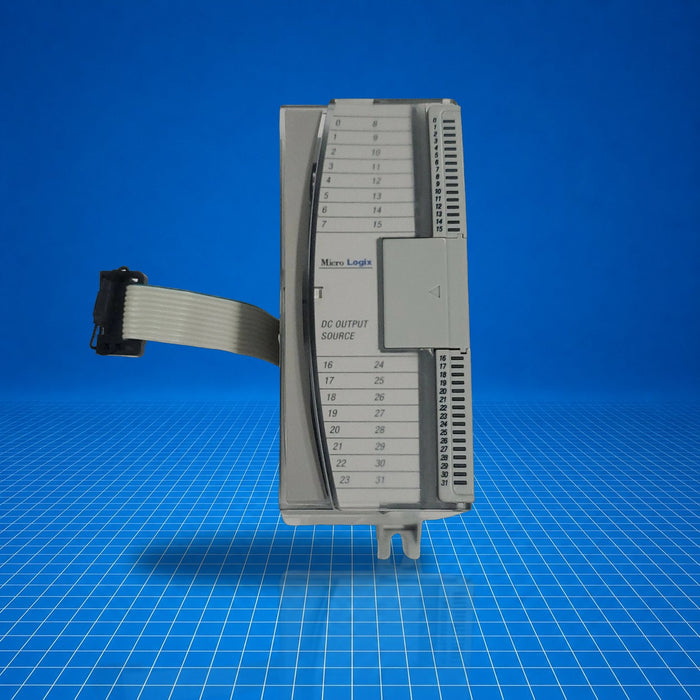

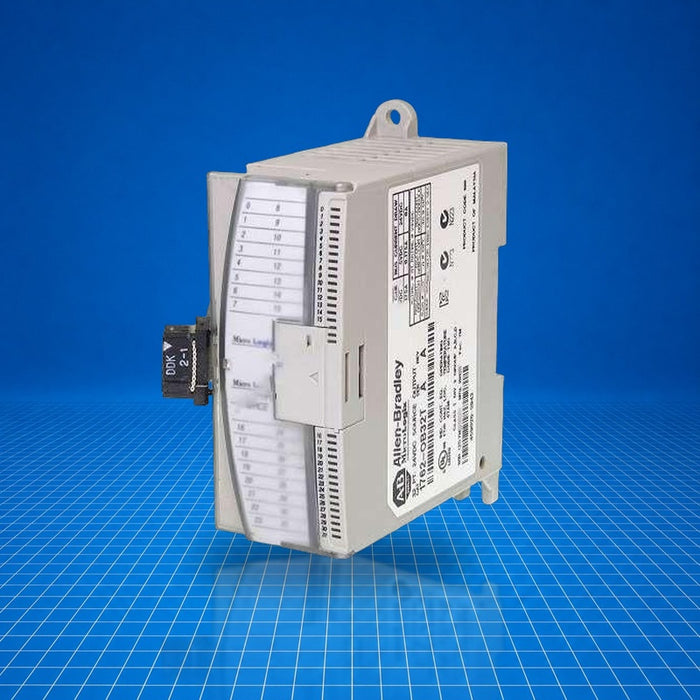

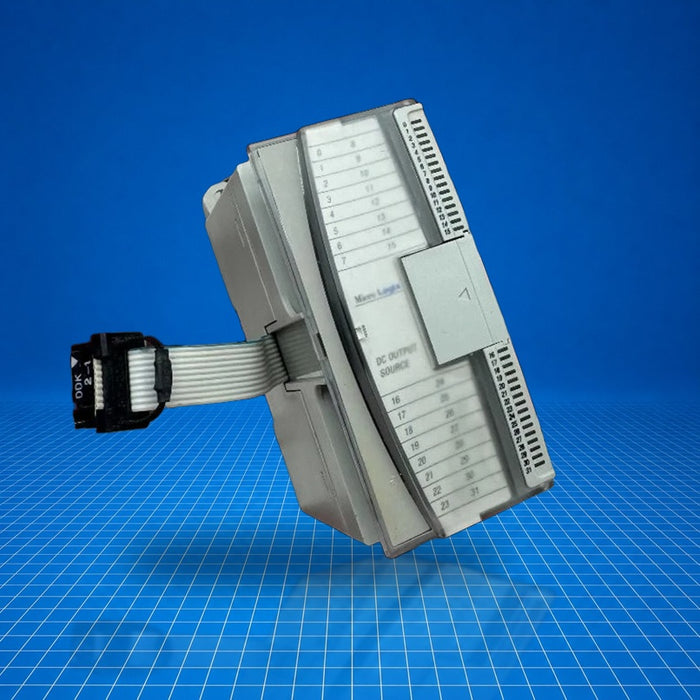

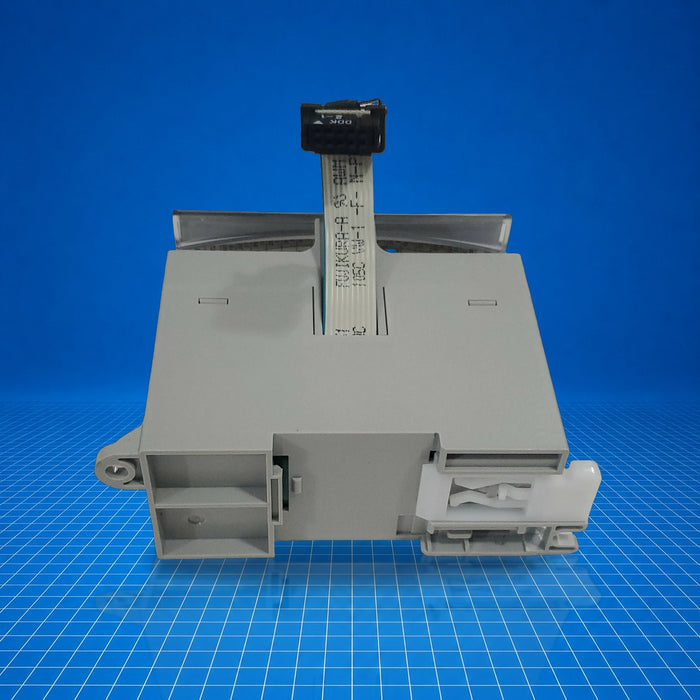

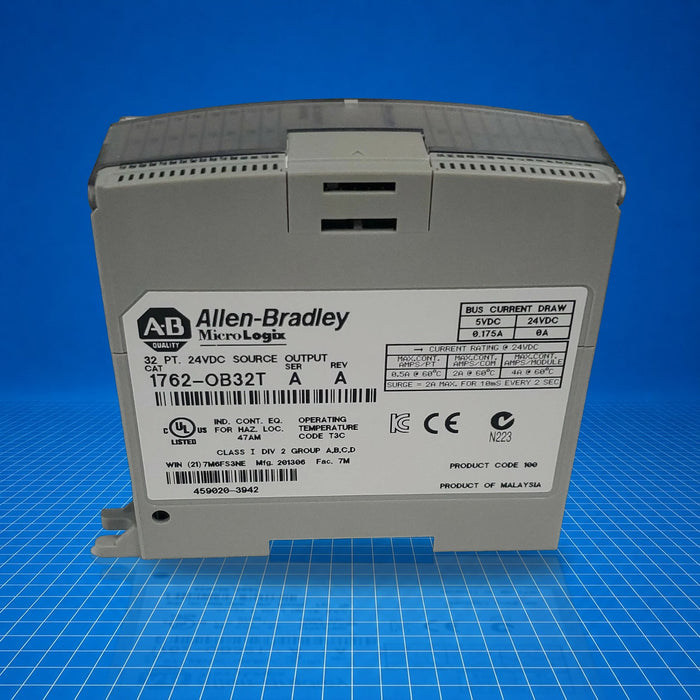

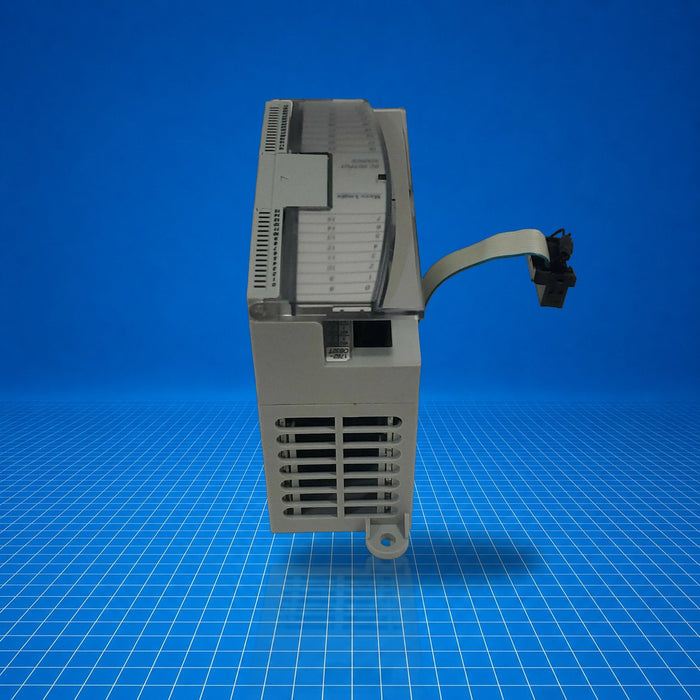

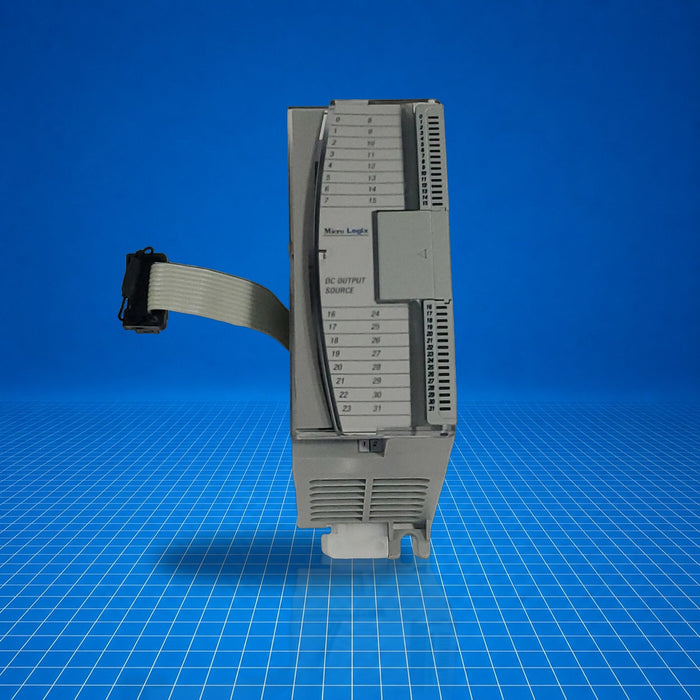

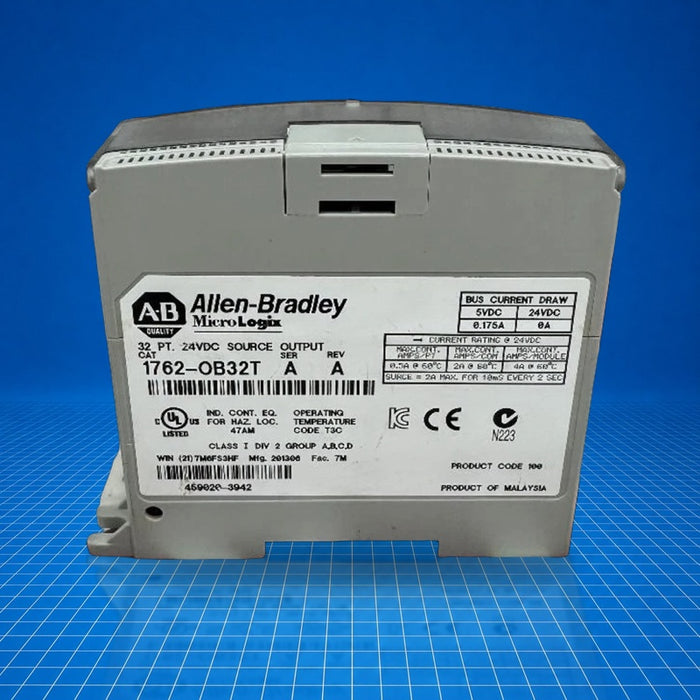

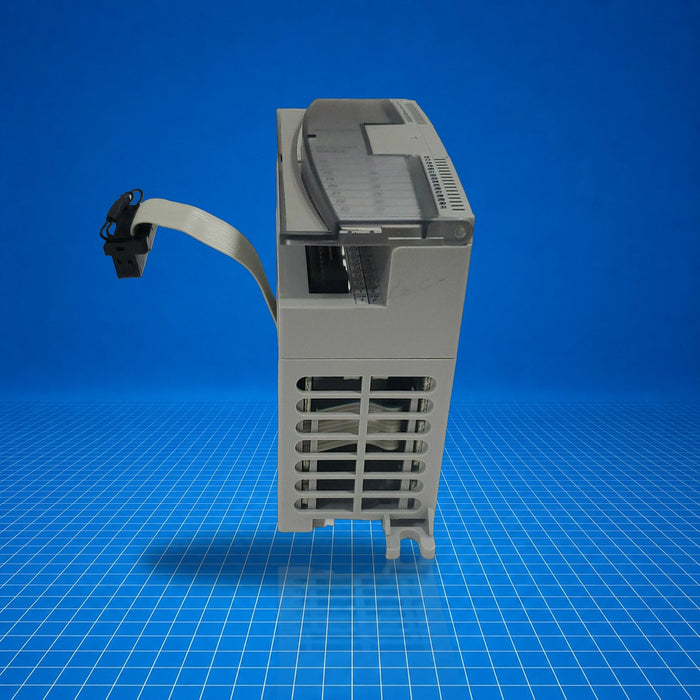

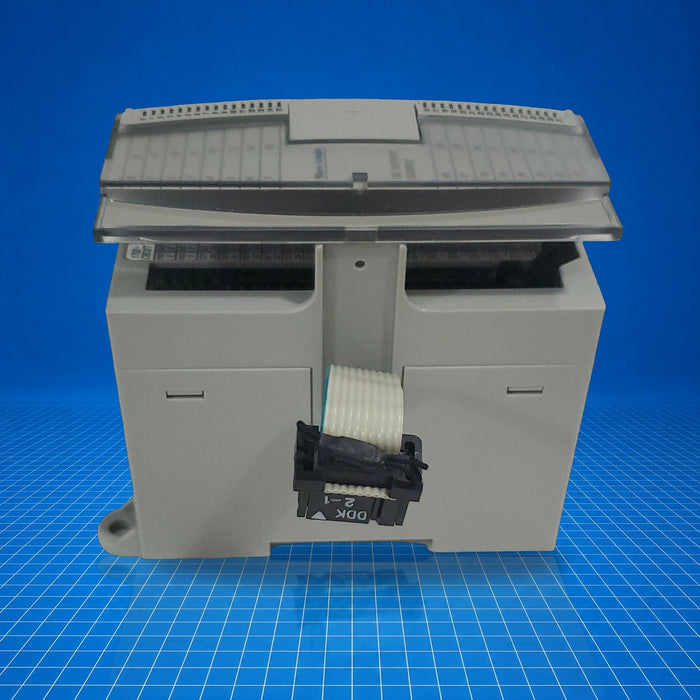

1762-OB32T Allen-Bradley

Name: 1762-OB32T Allen-Bradley
Brand: Allen Bradley
SKU: 1762-OB32T
Price: 598.4 USD
Availability: InStock

$598.40 - $1,585.00

$598.40

$598.40 - $1,585.00

$598.40

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1762-OB32T is an Allen-Bradley MicroLogix 1200 family expansion module providing 32 discrete sourcing outputs at 24 V DC. It integrates into MicroLogix 1200 controller racks to expand digital output capacity. Each module contains two isolated output groups (16 points each) and is designed for moderate-load control tasks in industrial environments such as conveyor controls, pilot devices, valve and actuator switching, or interface tasks to auxiliary equipment. 1762-OB32T acts as a solid-state output stage in automation systems.

Best Suited For

Adding multiple 24 V DC outputs on MicroLogix 1200 systems
Switching loads requiring up to 0.5 A per channel
Applications needing group-level isolation (two groups of 16 outputs)
Industrial control panels in Class I Div 2 areas

Number of outputs

32

Output voltage range

10.2-26.4 V DC

Continuous current per channel

0.5 A @ 60 °C

Continuous current per module

4.0 A @ 60 °C

Isolation (backplane)

1200 V AC for 2 s or 1697 V DC for 2 s

Technical Specifications

I/O & Electrical

Number of outputs

32

Output configuration

Sourcing, two isolated groups of 16 points

Output voltage range

10.2-26.4 V DC

Continuous current per channel, max

0.5 A @ 60 °C

Continuous current per group, max

2.0 A @ 60 °C

Continuous current per module, max

4.0 A @ 60 °C

Surge current, max

2.0 A (repeatable every 2 s for 10 ms @ 60 °C)

On-state current, min

1 mA

Off-state leakage current, max

0.1 mA @ 26.4 V DC

On-state voltage drop, max

0.3 V DC @ 0.5 A

Communication & Power

Bus current draw, max

175 mA @ 5 V DC

Heat dissipation, max

3.4 W @ 26.4 V DC

Physical & Environmental

Operating temperature

-20 … 60 °C (-4 … 140 °F)

Storage temperature

-40 … 85 °C (-40 … 185 °F)

Operating humidity

5 … 95 % non-condensing

Shock, operating

30 G (panel mounted, 3 pulses per axis)

Vibration, operating

5 G @ 10…500 Hz, 0.030 in p-p

Altitude, max operating

2000 m

Weight

200 g

Certifications

UL Listedc-ULusHazLoc Class I Div 2

Suitable for Hazardous Location Class I, Division 2, Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213, ANSI/ISA-12.12.01); EMI/EMC immunity and emission standards as per IEC/EN-61000-4 series and EN50081-2 Class A.
