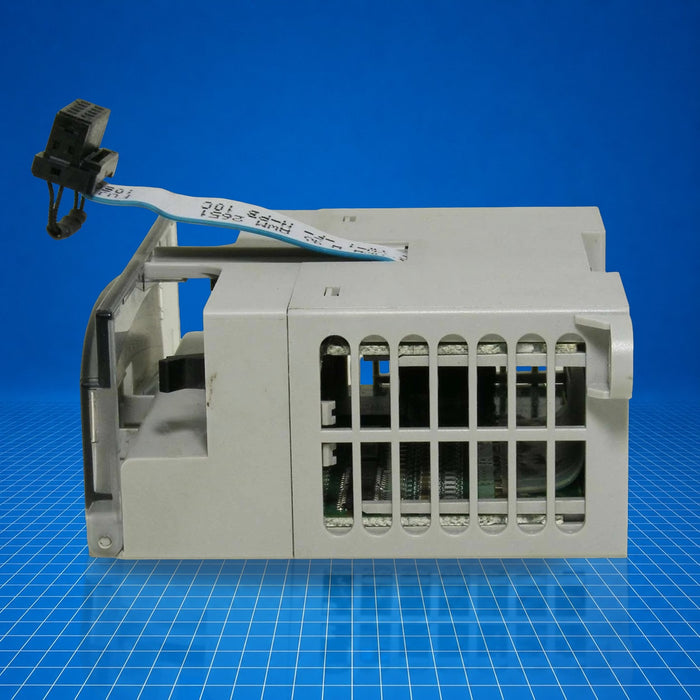

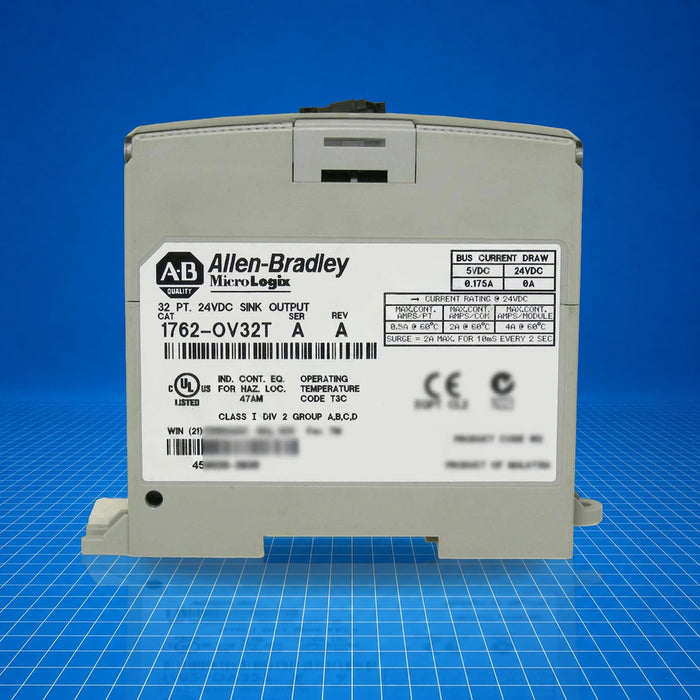

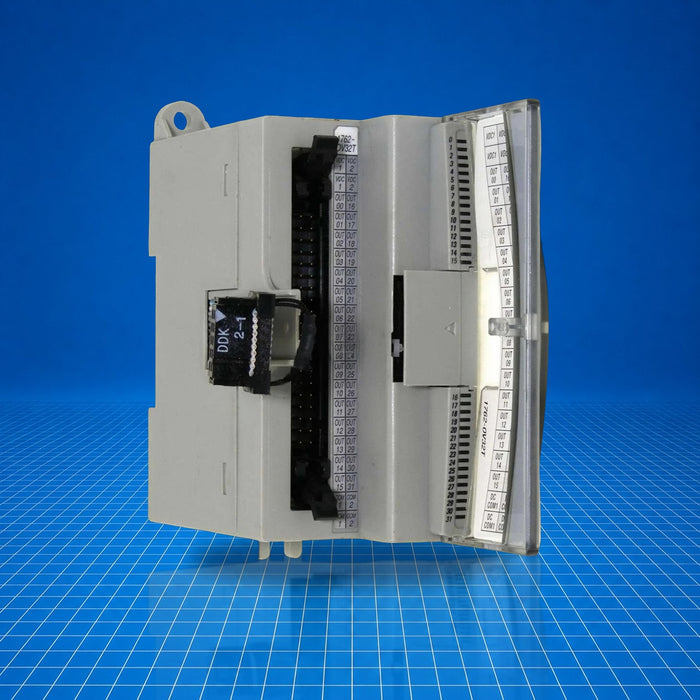

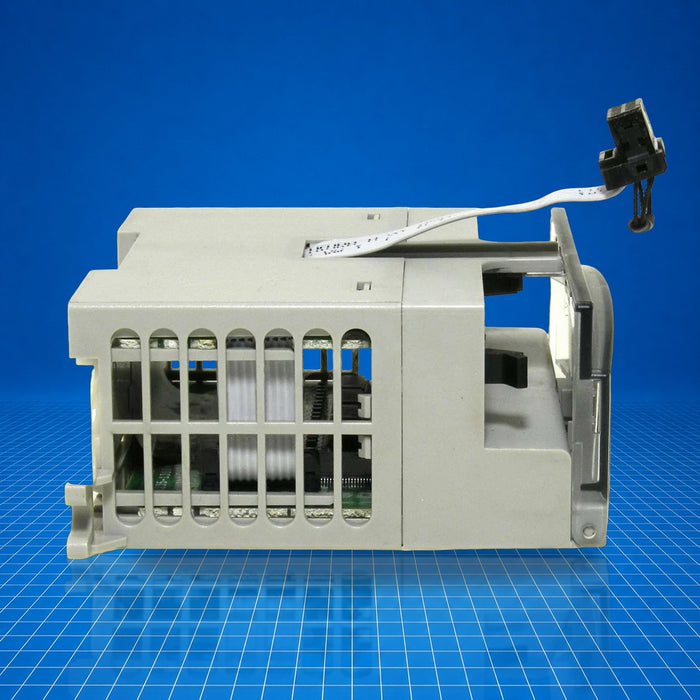

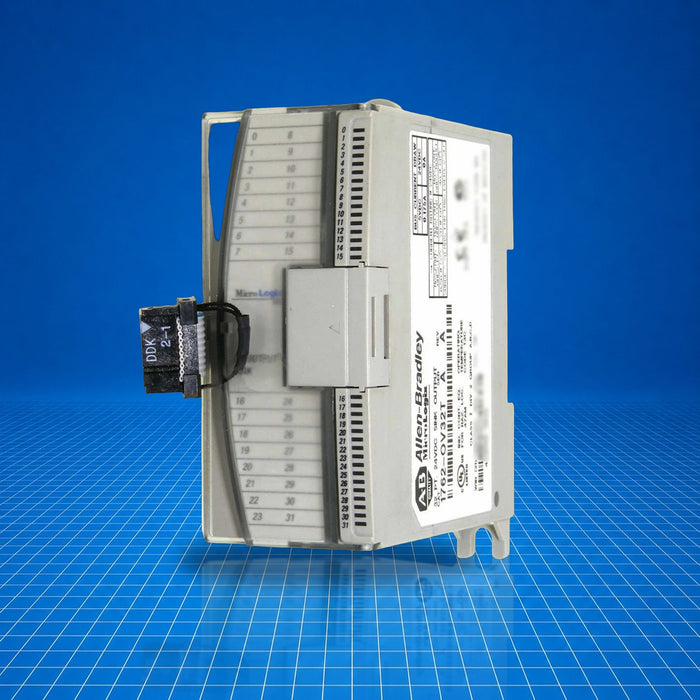

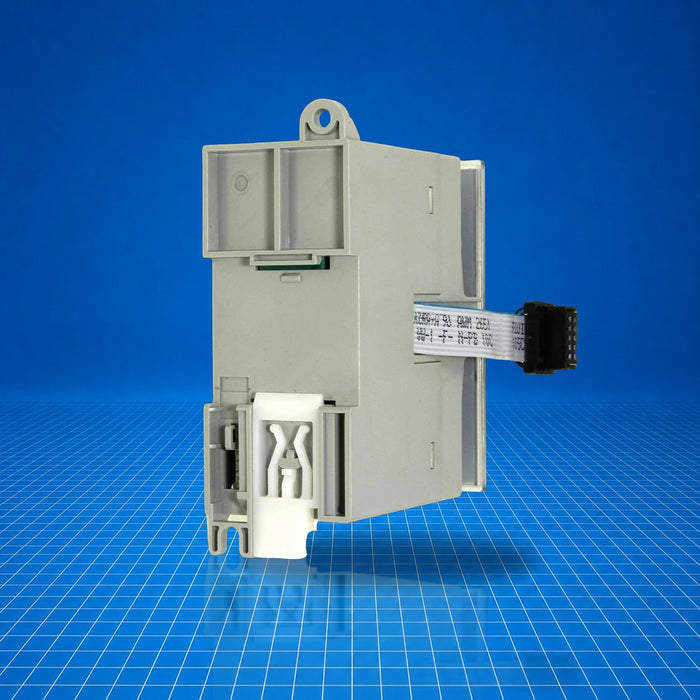

1762-OV32T Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1762-OV32T Allen-Bradley

$0.00 - $609.73
$609.73
$0.00 - $609.73
$609.73
Surplus - Tested (With Warranty)
Need a Specific Revision?
$609.73
5 in stock
New / Open-Box Surplus
Get Pricing ~5 mins
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (5) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1762-OV32T is an Allen-Bradley MicroLogix 1200 series expansion module providing 32 discrete sinking outputs (24 V DC). It functions as a digital output module for MicroLogix 1200 controllers, enabling control of external devices such as solenoids or pilot lights. Installed via the MicroLogix bus, it serves in discrete control panels, machine tooling stations, or packaging equipment requiring compact, field-expandable output capacity. 1762-OV32T integrates seamlessly into standard MicroLogix 1200 systems.

Best Suited For

  • MicroLogix 1200 discrete output expansion
  • Applications requiring 32-point 24 V DC sinking outputs
  • Discrete control in industrial automation panels
  • Compact machine control or OEM equipment
Output points
32 sinking outputs
Operating voltage range
10.2…26.4 V DC
Continuous current per point, max
0.5 A @ 60 °C
Bus current draw, max
175 mA @ 5 V DC
Heat dissipation, max
2.7 W @ 26.4 V DC

Technical Specifications

I/O & Electrical

Output type
24 V DC sinking
Number of outputs
32
On-state voltage drop, max
0.3 V DC at 0.5 A
On-state current, min
1 mA
Off-state leakage current, max
0.1 mA @ 26.4 V DC
Continuous current per point, max
0.5 A @ 60 °C
Continuous current per common, max
2.0 A @ 60 °C
Continuous current per module, max
4.0 A @ 60 °C
Surge current, max
2.0 A (once every 2 s for 10 ms @ 60 °C)
Signal delay (resistive load)
ON delay: 0.5 ms, OFF delay: 4.0 ms
Bus current draw, max
175 mA @ 5 V DC
Heat dissipation, max
2.7 W @ 26.4 V DC

Communication & Power

Operating voltage range
10.2…26.4 V DC
Bus current draw, max
175 mA @ 5 V DC

Physical & Environmental

Width
40.4 mm
Height
90 mm
Depth
87 mm
Weight
200 g
Operating temperature
-20 to 65 °C
Storage temperature
-40 °C
Operating humidity
5…95% non-condensing
Shock
Operating: 30 G panel-mounted, 3 pulses per axis; Relay ops: 7 G
Vibration
Operating: 10…500 Hz, 5 G, 0.030 in max p-p, 2 hr per axis; Relay ops: 1.5 G
Altitude
2000 m

Certifications

UL ListedHazardous Location Class I Division 2cULusCE

UL Listed (including Hazardous Location Class I Division 2, Groups A,B,C,D under UL 1604 and cUL under CSA C22.2 No. 213); CE and cUL marked under CSA C22.2 No. 142 and UL 508.
