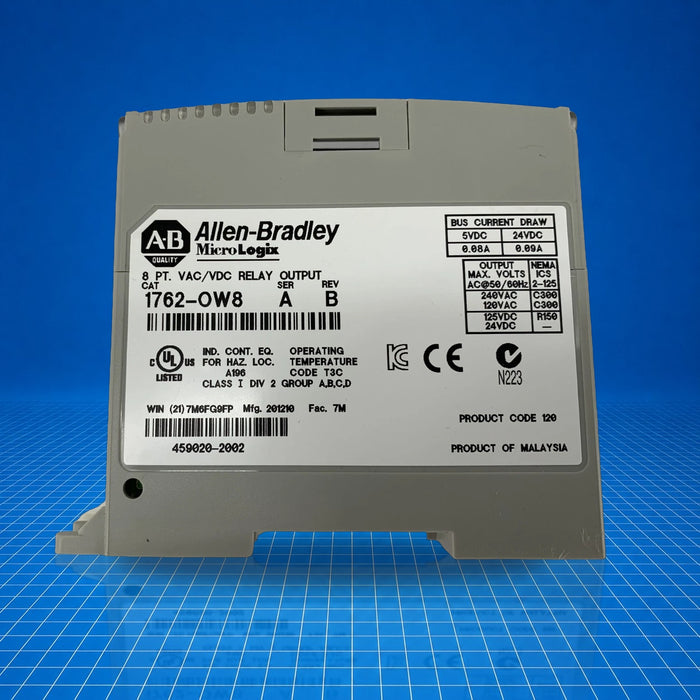

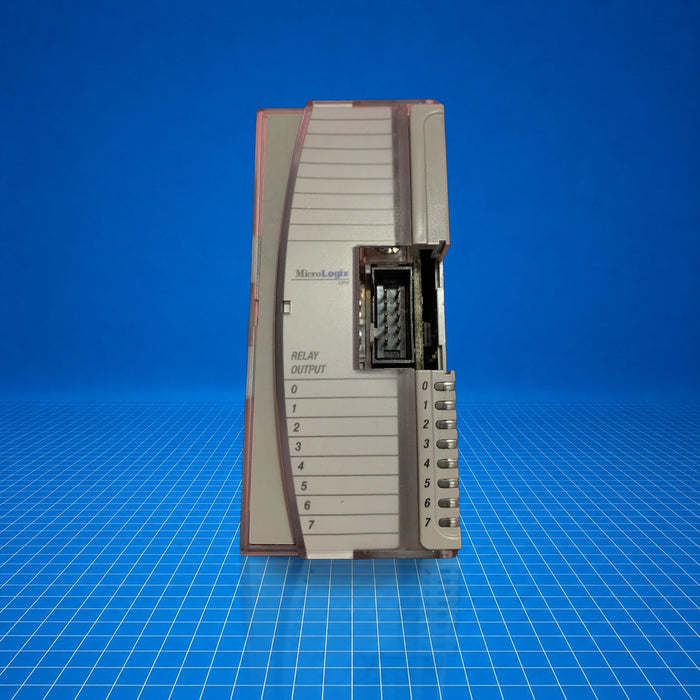

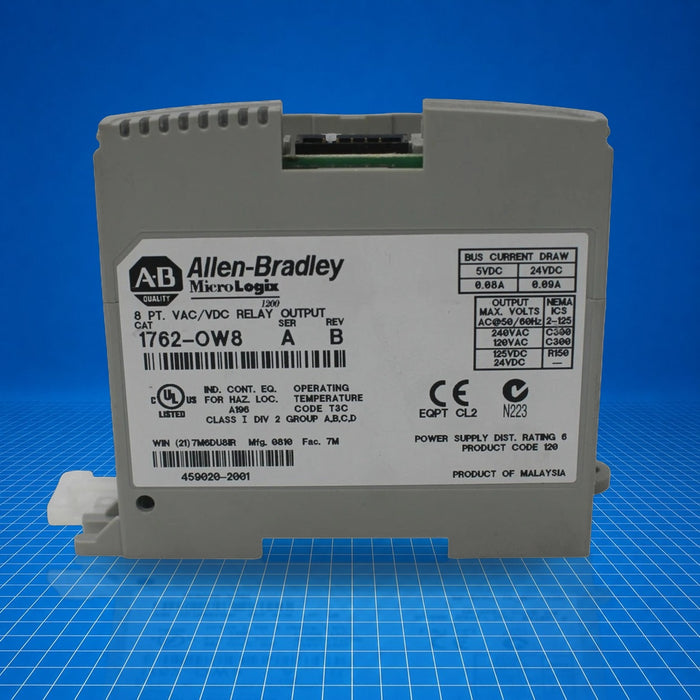

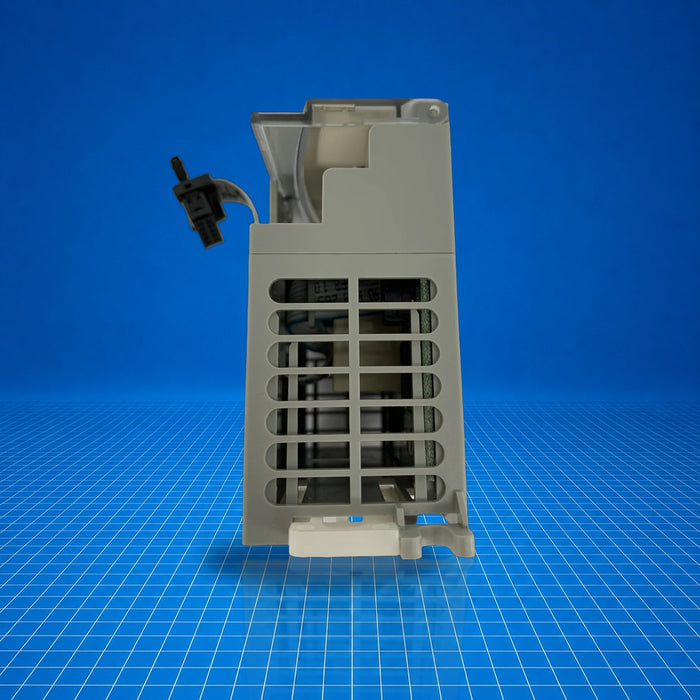

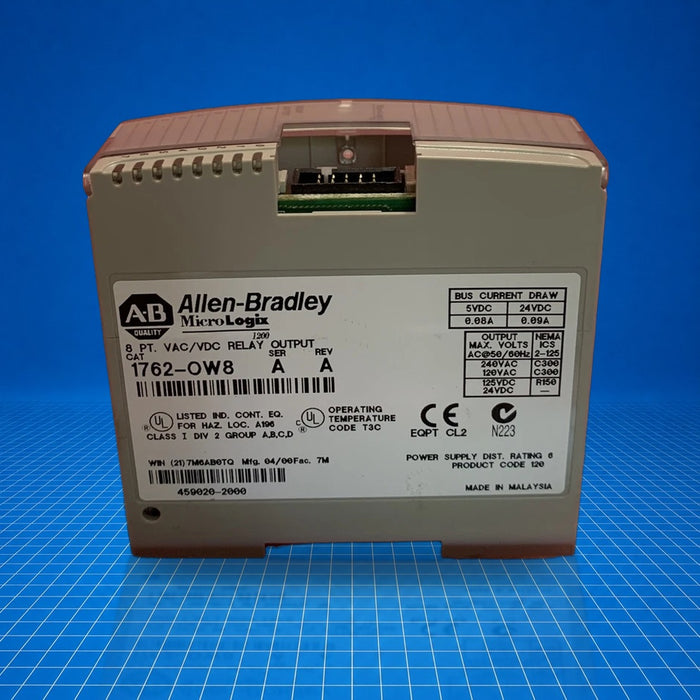

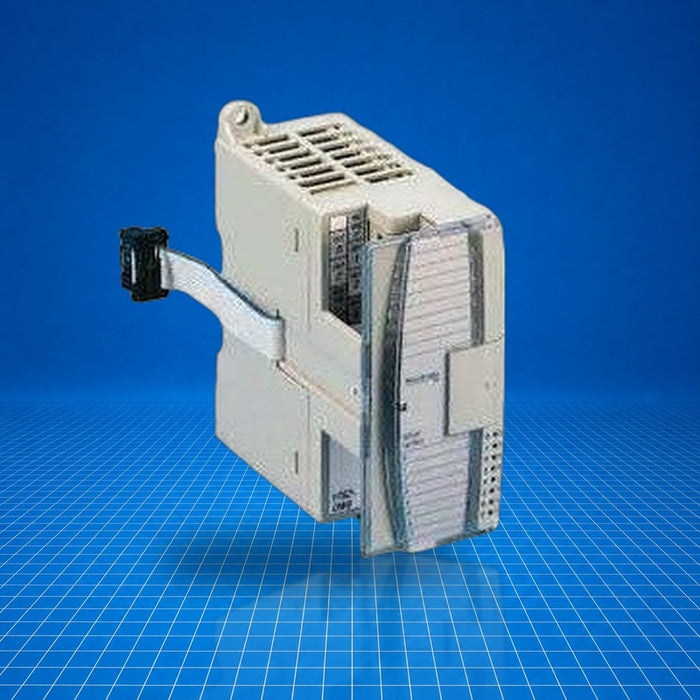

Product image is representative; revision or series may vary.
Contact us to request a specific version.

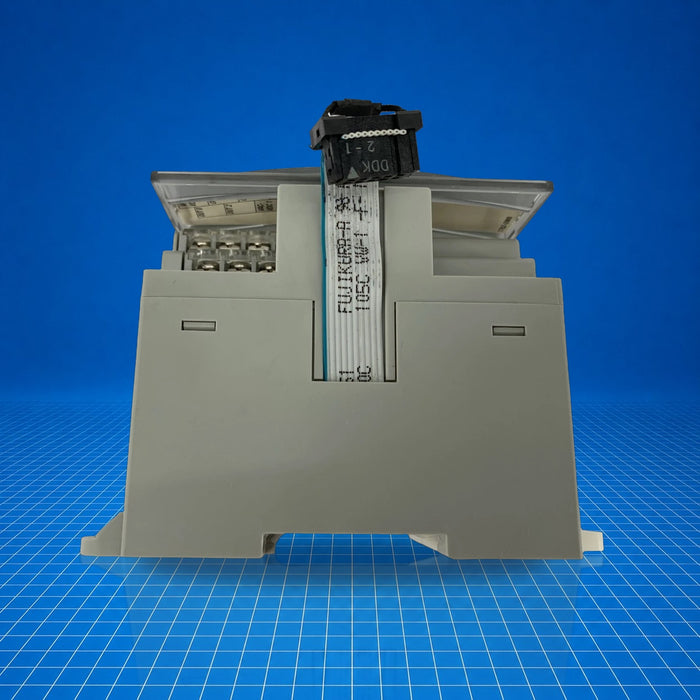

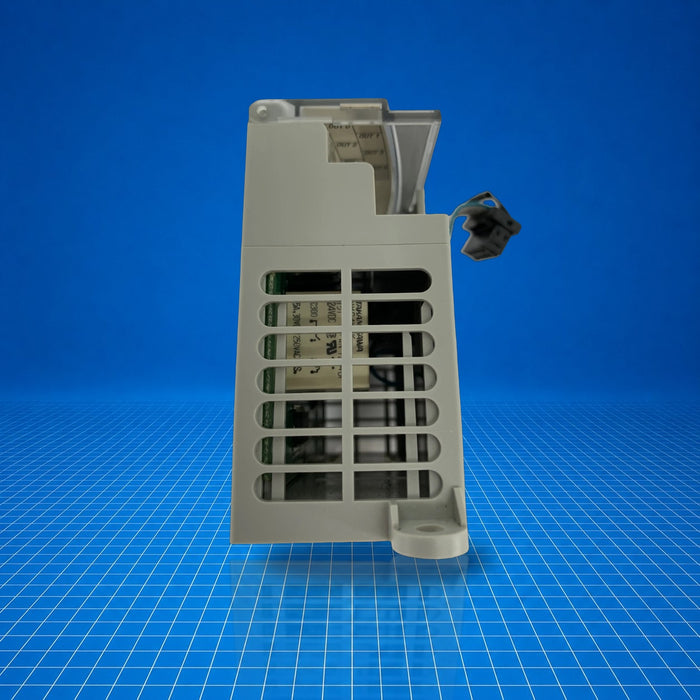

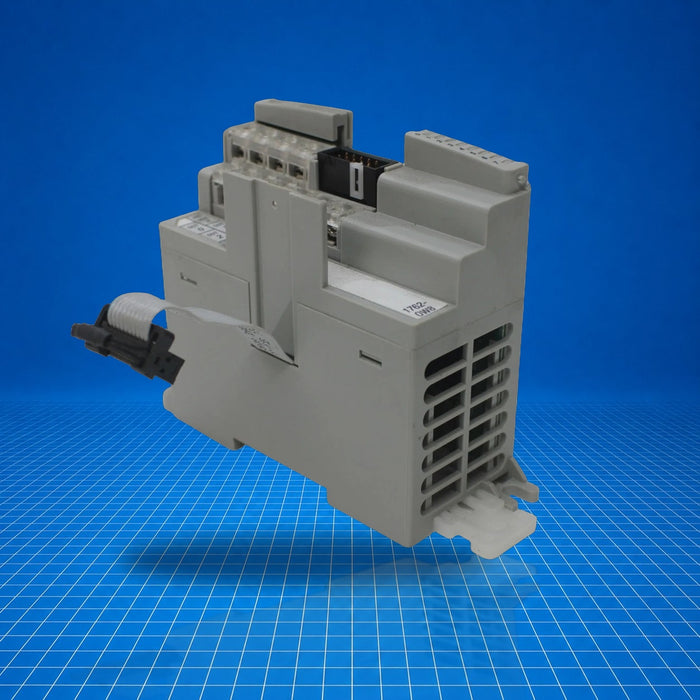

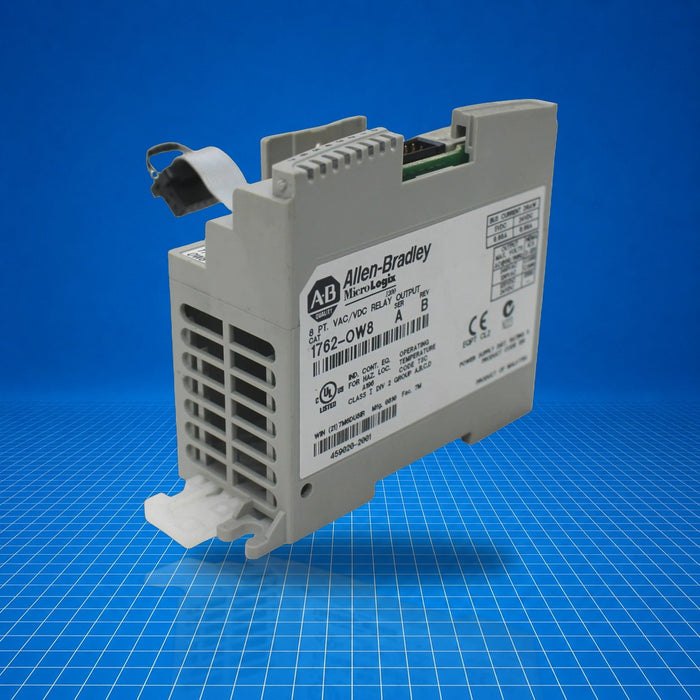

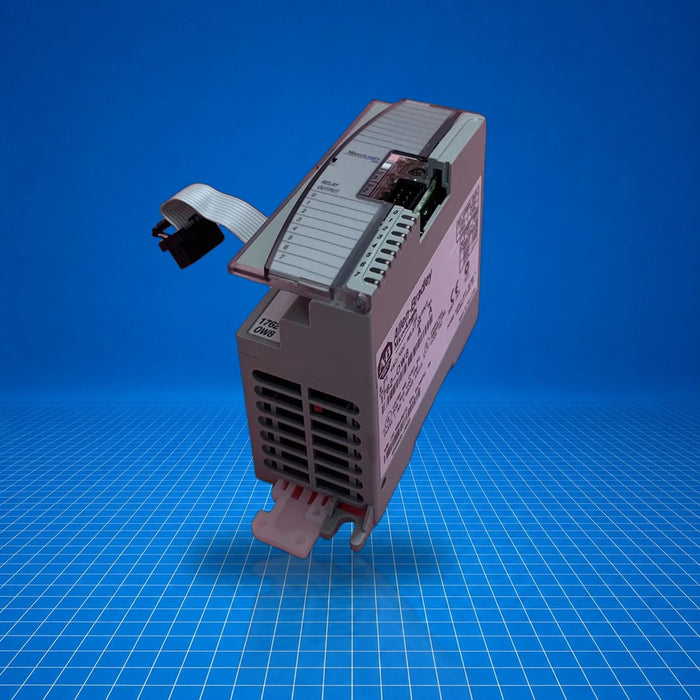

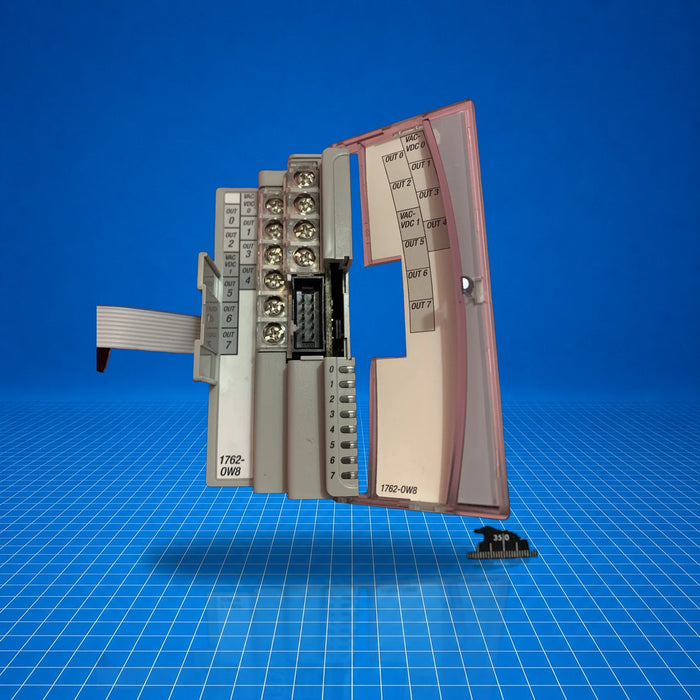

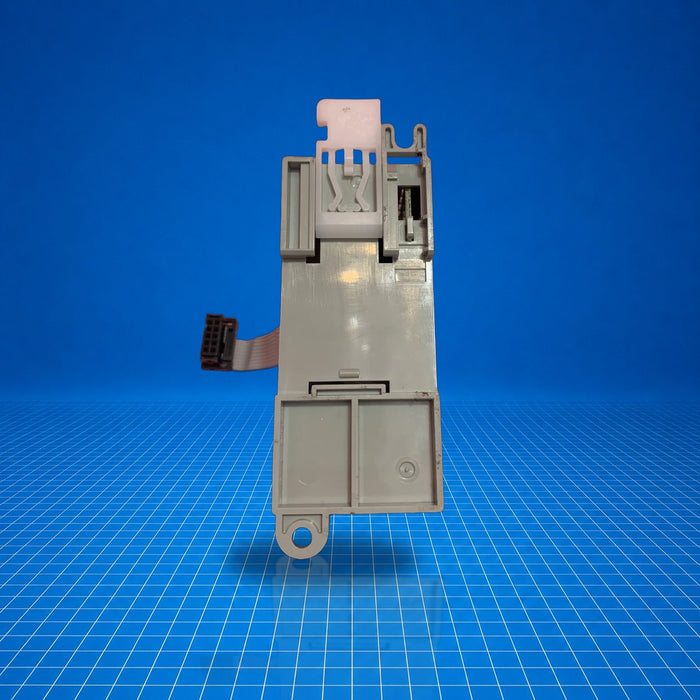

1762-OW8 Allen-Bradley

Name: 1762-OW8 Allen-Bradley
Brand: Allen Bradley
SKU: 1762-OW8
Price: 450.0 USD
Availability: InStock

$415.96 - $450.00

$450.00

$415.96 - $450.00

$450.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1762-OW8 is an Allen-Bradley MicroLogix 1200 expansion module that provides eight relay outputs compatible with both AC and DC loads. Designed to interface with the MicroLogix 1200 controller family, the 1762-OW8 mounts on standard DIN rails in control panels and enables discrete switching of external devices such as pilot lights, solenoids, or auxiliary relays. Its isolated relay outputs offer flexibility across broad voltage ranges, making it suitable for varied industrial automation tasks such as general machine control, equipment sequencing, and batch processing.

Best Suited For

MicroLogix 1200 systems requiring relay switching
AC or DC load control across a wide voltage range
Applications with isolated output requirements
Panel-mounted discrete actuator control

Outputs

8 relay points

Voltage range

5…265 V AC; 5…125 V DC

Heat dissipation (max)

2.9 W

Bus current draw (max)

80 mA @ 5 V DC (0.40 W); 90 mA @ 24 V DC (2.16 W)

Technical Specifications

I/O & Electrical

Number of outputs

8 relay outputs

Operating voltage range

5…265 V AC; 5…125 V DC

Continuous current per point (max)

2.5 A

Continuous current per module (max)

16 A

Continuous current per common (max)

8 A

On-state current (min)

10 mA @ 5 V DC

Off-state leakage current (max)

0 mA

Communication & Power

Bus current draw (max)

80 mA @ 5 V DC (0.40 W); 90 mA @ 24 V DC (2.16 W)

Heat dissipation (max)

2.9 W

Physical & Environmental

Operating temperature

-20 °C to 65 °C

Storage temperature

-40 °C

Operating humidity

5…95% non-condensing

Altitude

2000 m

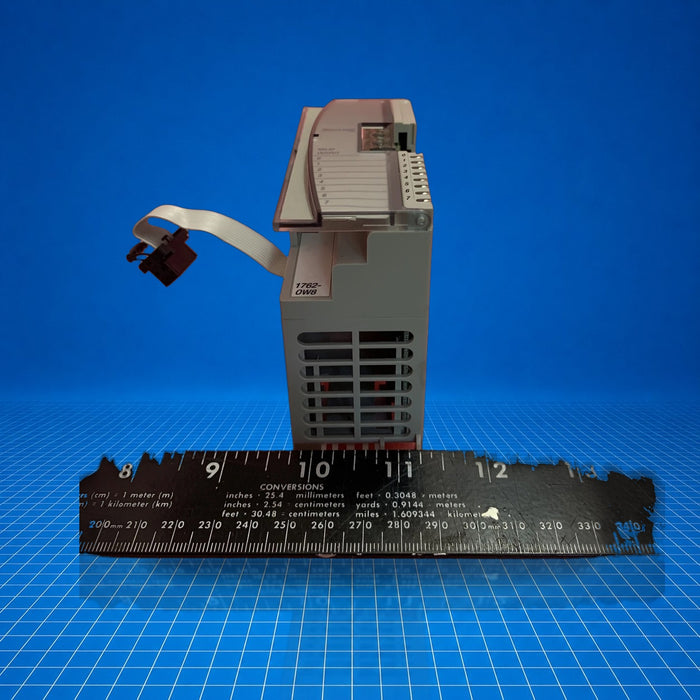

Dimensions (W×H×D)

40.4 mm × 90 mm × 87 mm

Weight

228 g

Certifications

UL Listed Hazardousc-ULusUKCA

Class I Division 2 Groups A, B, C, D hazardous location rating; IEC-rated immunity and emissions per IEC 1000-4 and EN50081-2 standards.
