1762SC-IF8U Allen-Bradley
Original price
$1,031.25
-
Original price
$3,062.42
Original price
$1,031.25
$1,031.25
-
$3,062.42
Current price
$1,031.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

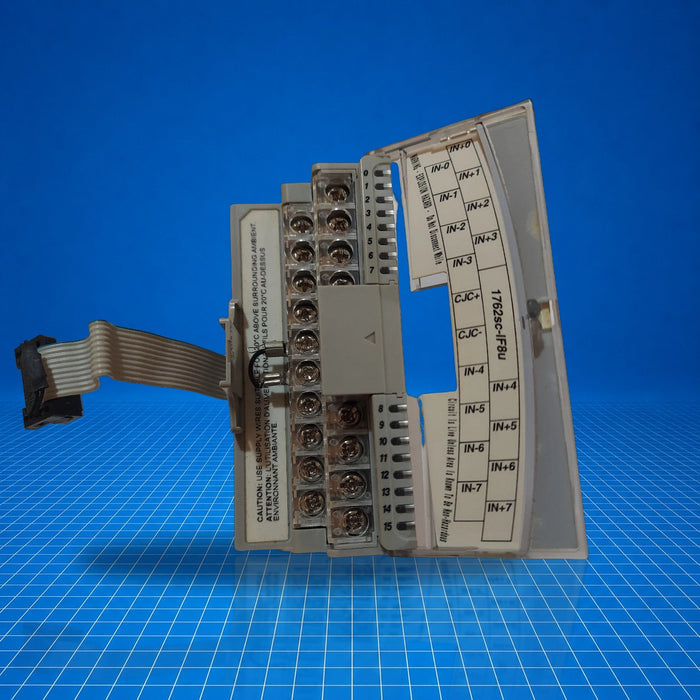

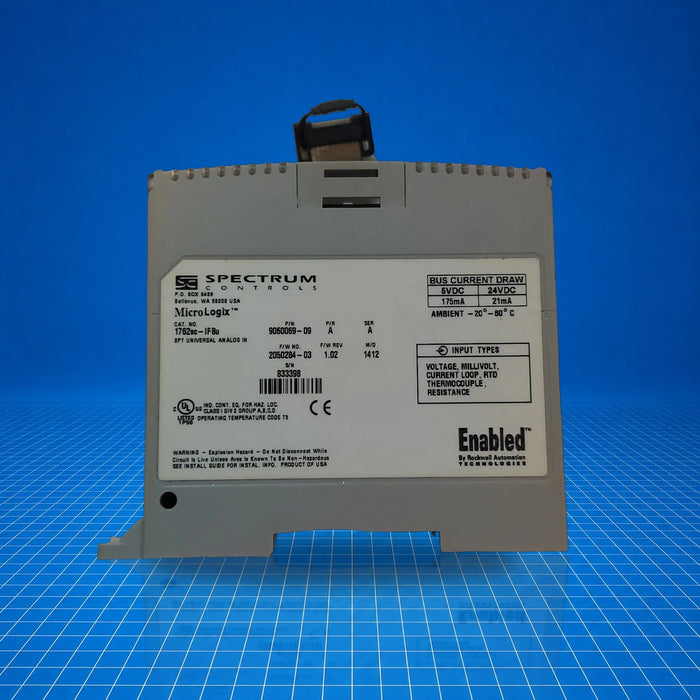

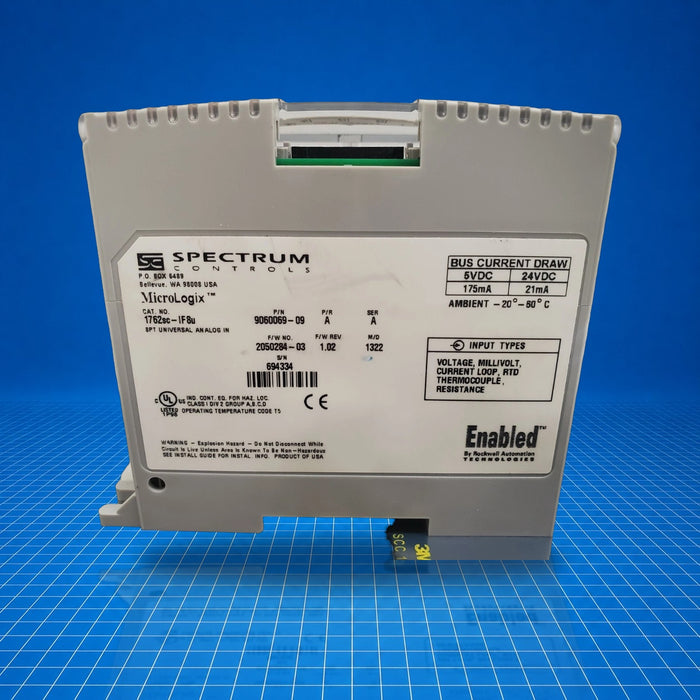

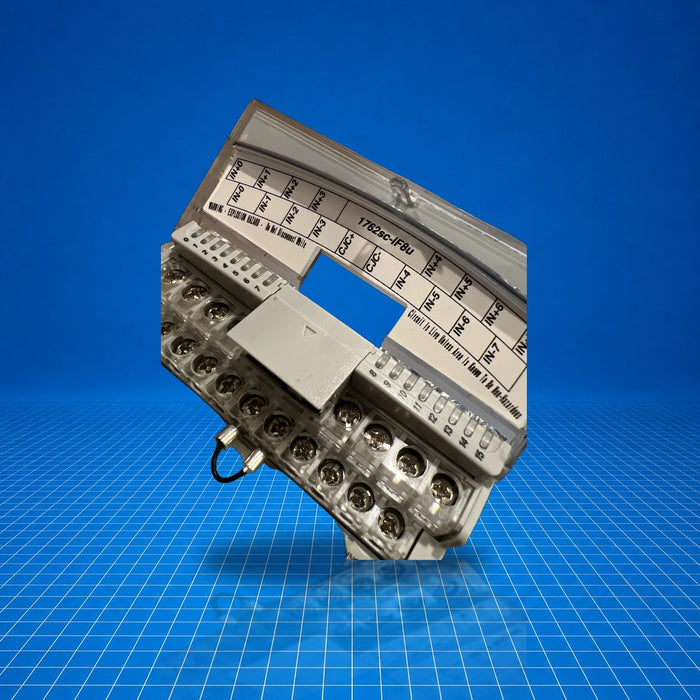

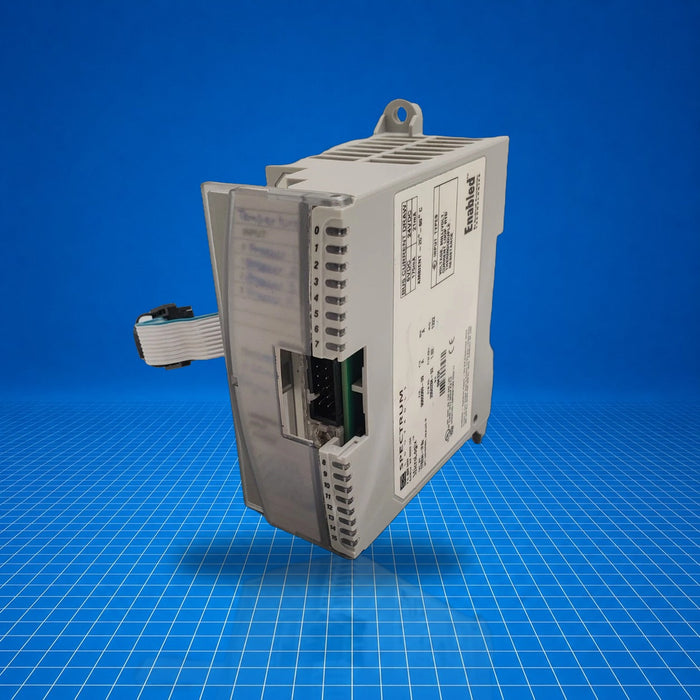

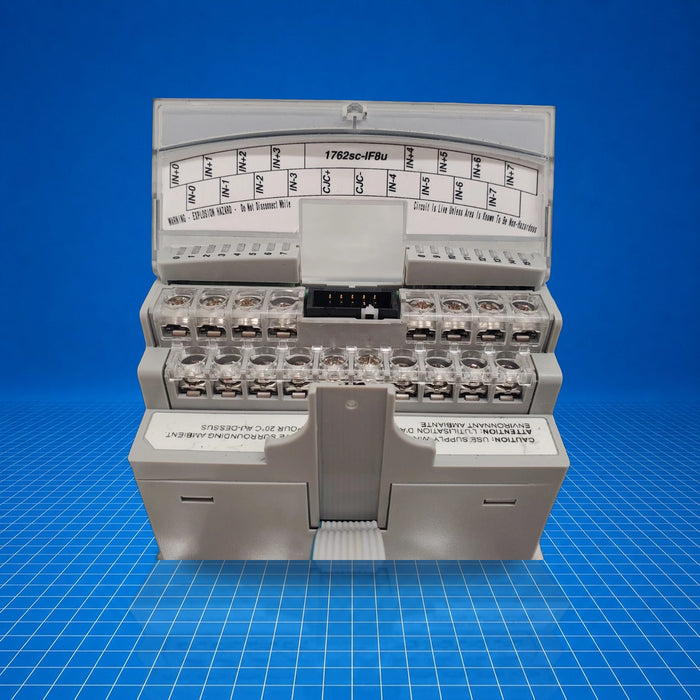

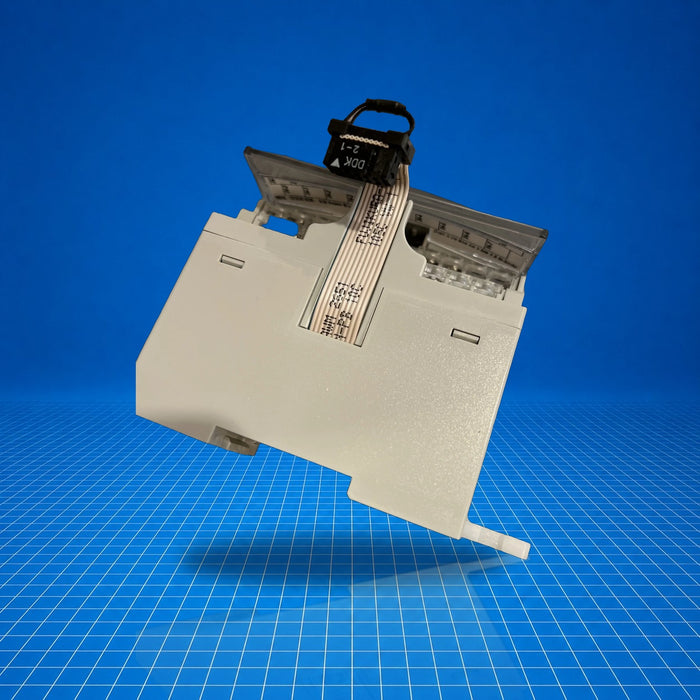

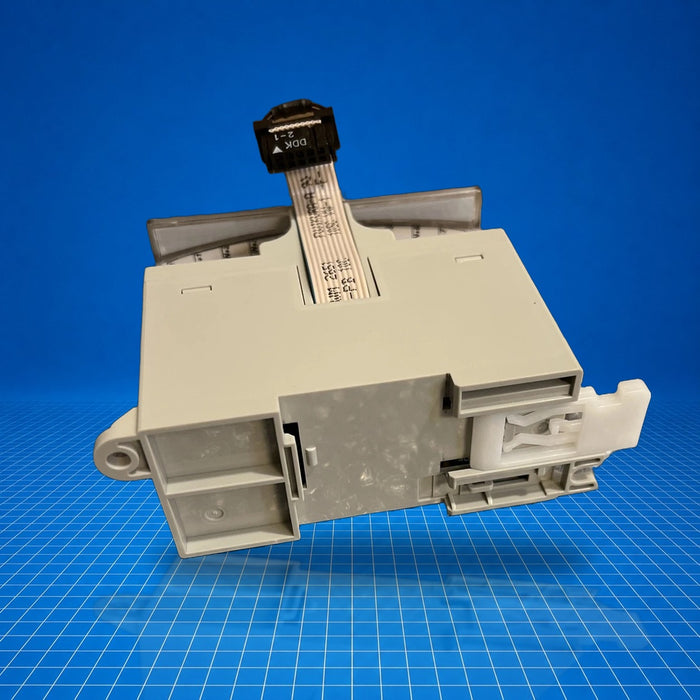

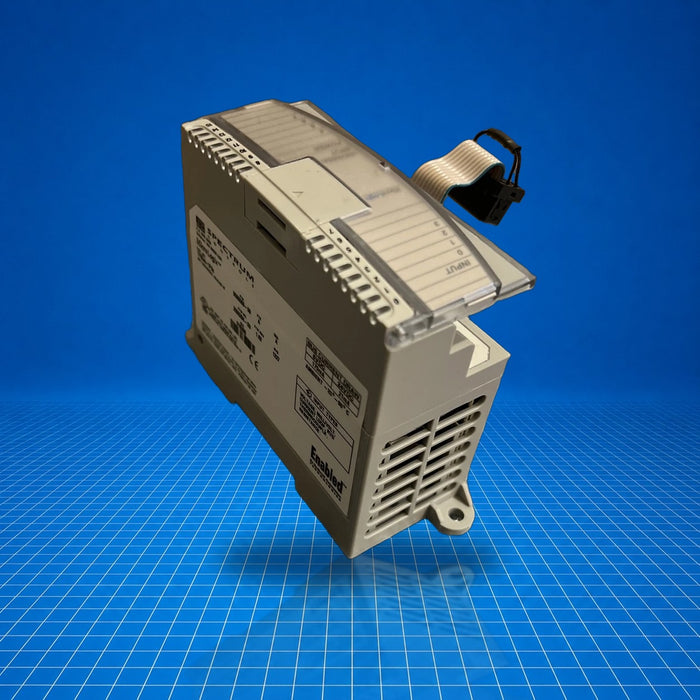

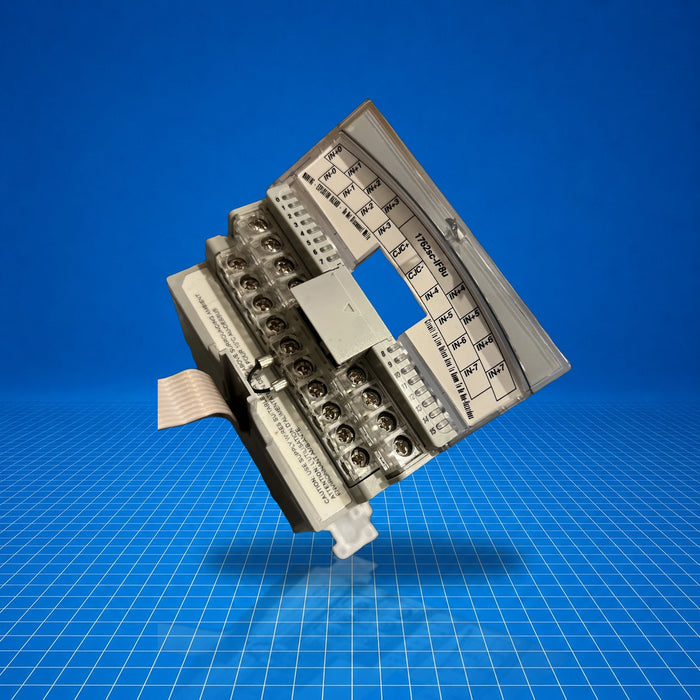

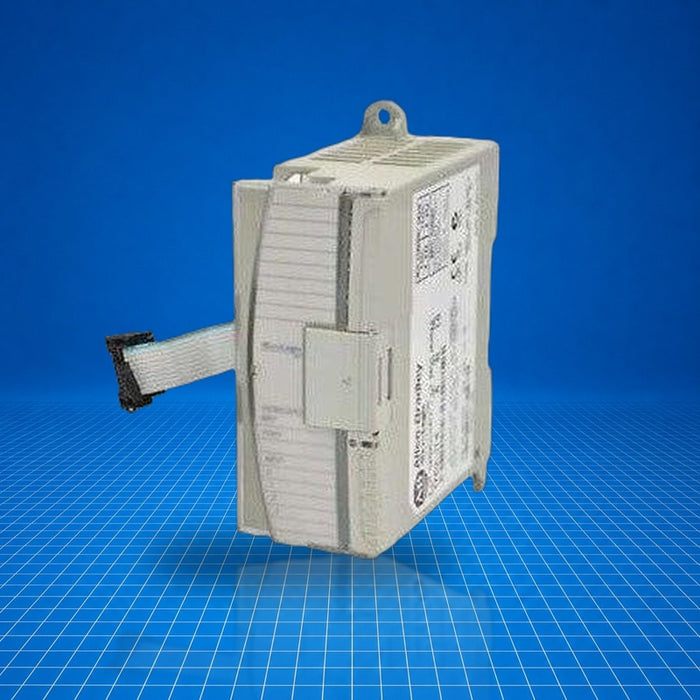

The 1762SC-IF8U is an 8-channel universal analog input expansion module for Allen-Bradley MicroLogix 1100, 1200, and 1400 controllers. Produced by Spectrum Controls under the Rockwell Automation umbrella, it accepts mixed analog input types-including voltage, current, thermocouples, RTDs, and resistance-within a single module. The module provides channel-to-channel and channel-to-backplane isolation and is configured via RSLogix and on-board DIP switches. Typical use cases involve consolidating multiple analog input types in compact control systems where reduction in module count and panel space is required.
Best Suited For
- Mixed signal analog input monitoring (voltage, current, thermocouple, RTD)
- Upgrading legacy MicroLogix 1100/1200/1400 systems with multi-type analog inputs
- Applications requiring channel isolation for input integrity
- Situations needing flexible input configuration without spare module slots
Channels
8
Supported signal types
Voltage, Current, Thermocouple, RTD, Resistance
Resolution
16 Bits
Thermal dissipation
1.4 W max
Input filtering options
4 Hz, 17 Hz, 62 Hz, 470 Hz
Technical Specifications
I/O & Electrical
Input channels
8
Voltage ranges
±50 mV, ±100 mV, 0-5 V, 1-5 V, ±10 V, 0-10 V
Current ranges
0-20 mA, 4-20 mA
RTD types supported
100 Ω Pt α 0.385, 200 Ω Pt α 0.385, 500 Ω Pt α 0.385, 1000 Ω Pt α 0.385, 100 Ω Pt α 0.3916, 200 Ω Pt α 0.3916, 500 Ω Pt α 0.3916, 1000 Ω Pt α 0.3916, 10 Ω Cu α 0.426, 100 Ω Ni α 0.618, 120 Ω Ni α 0.672, 604 Ω NiFe α 0.518
Thermocouple types supported
Type B, C, E, J, K, N, R, S, T
Resistance ranges
0-150 Ω, 0-1000 Ω, 0-3000 Ω
Resolution
16 Bits
Input filtering
4 Hz, 17 Hz, 62 Hz, 470 Hz
Channel update time
495 ms, 135 ms, 45 ms, 20 ms
Channel-to-channel isolation
10 V DC; backplane 707 V DC for 1 min
Communication & Power
Configuration interface
RSLogix 500 + DIP switches
Thermal dissipation
1.4 W max
Physical & Environmental
Weight
0.06 lbs (0.03 kg)
