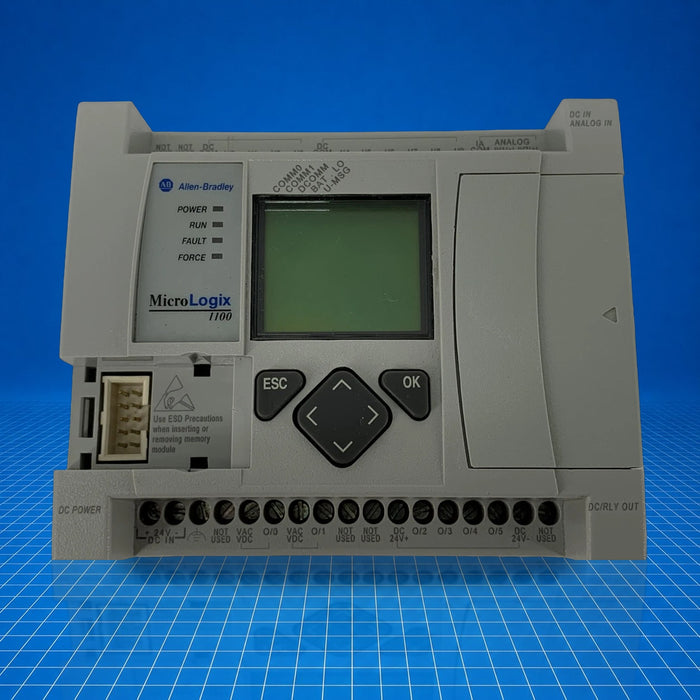

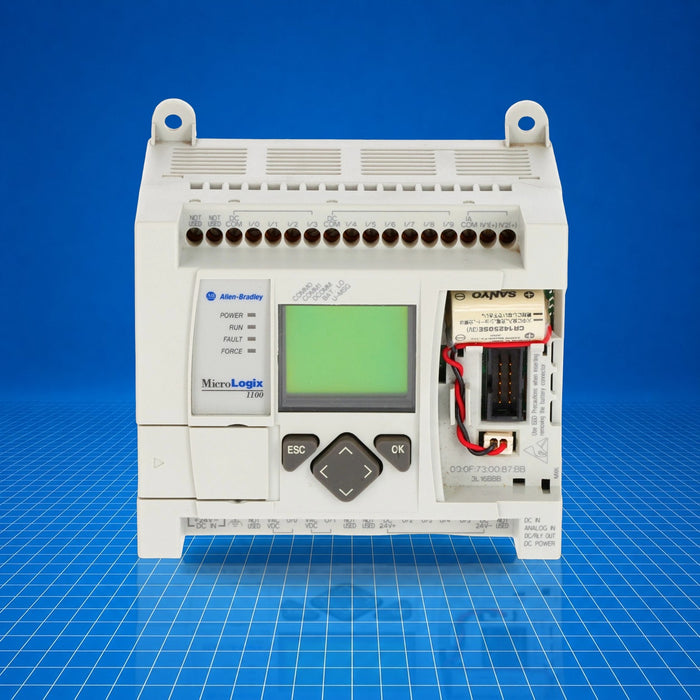

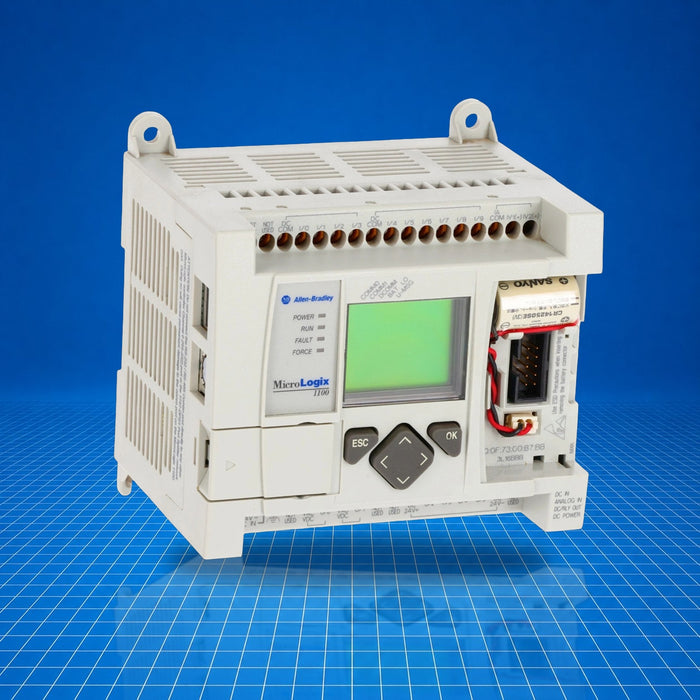

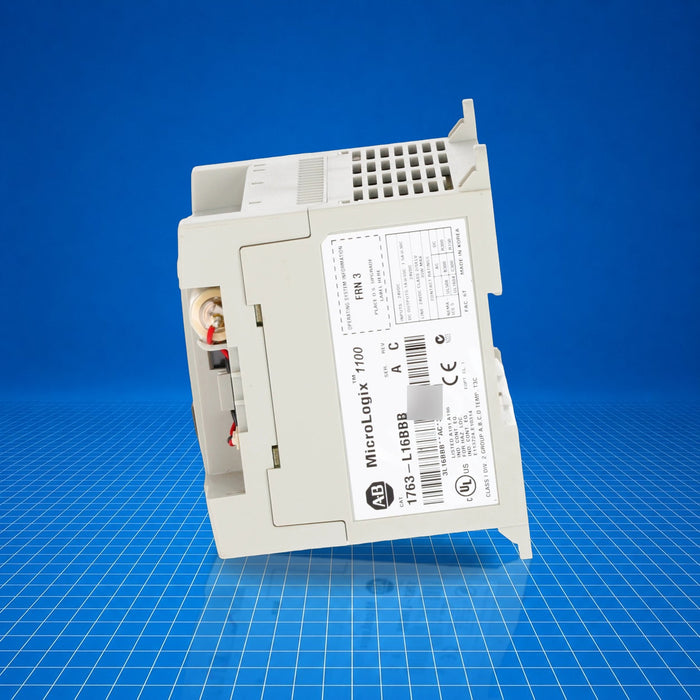

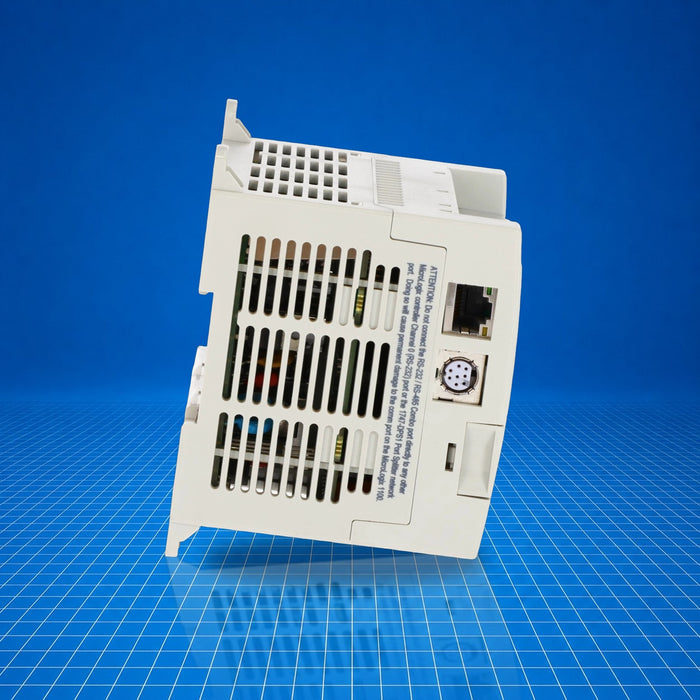

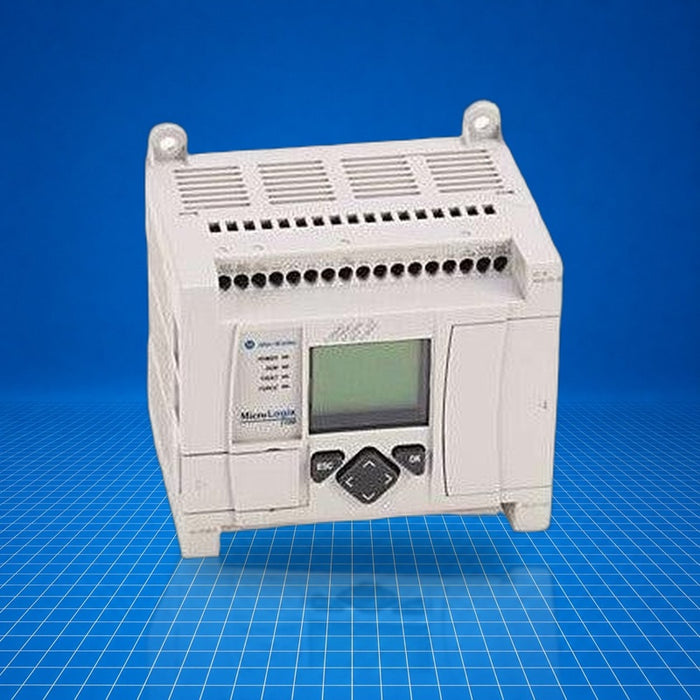

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1763-L16BBB Allen-Bradley
Original price
$880.00
-
Original price
$1,875.00
Original price
$880.00
$880.00
-
$1,875.00
Current price
$880.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1763-L16BBB is an Allen-Bradley MicroLogix 1100 fixed-I/O controller designed for compact distributed control systems. It accepts 24 V DC power and offers a mix of 16 embedded I/O points-combining digital, analog, relay and FET outputs-along with built-in Ethernet/IP and RS-232/RS-485 communication. It includes an LCD with keypad interface, real-time clock, and memory with battery backup. It is used in machine-level, OEM or retrofit systems requiring networked control and basic motion-capable outputs. Part number 1763-L16BBB.
Best Suited For
- Machine-level control requiring both discrete and analog I/O
- Retrofit or compact installation with 24 V DC infrastructure
- Motion-related control using pulse-train or PWM FET outputs
- EtherNet/IP-connected monitoring and peer communication
Embedded I/O points
10 digital inputs, 2 analog inputs, 6 outputs
Output types
2 relays, 2 standard FET, 2 high-speed FET
Memory
8 KB total (4 KB program / 4 KB data) with battery backup
Communication
EtherNet/IP + RS-232/RS-485
Operating temperature
-20 °C to +65 °C (-4 °F to +149 °F)
Technical Specifications
I/O & Electrical
Digital inputs
6 standard 24 V DC + 4 high-speed up to 40 kHz
Analog inputs
2 × 0-10 V DC, 10-bit
Relay outputs
2 isolated relays (see relay contact ratings)
Standard FET outputs
2 × 24 V DC
High-speed FET outputs
2 × 24 V DC (PTO/PWM, turn-on 6 µs / turn-off 18 µs)
Relay contact ratings
120/240 V AC: make 15 A, break 3 A; 125 V DC: 0.22 A make, 1 A continuous
FET current rating (max)
3 A total @ 30 °C; lower at elevated temps
Communication & Power
Input voltage
24 V DC (-15%, +10%), Class 2 SELV
Memory
8 KB (4 KB program, 4 KB data), battery-backed; optional 128 KB data logging, 64 KB recipe
Physical & Environmental
Dimensions (HxWxD)
90 × 110 × 87 mm (3.5 × 4.33 × 3.43 in)
Weight
0.45 kg (1.00 lb)
Operating temp
-20 °C to +65 °C (-4 °F to +149 °F)
Storage temp
-40 °C to +85 °C (-40 °F to +185 °F)
Humidity
5% to 95% non-condensing
Certifications
UL Listed (Class I, Div 2, A-D)cULCERCM
UL Listed for Class I, Division 2, Groups A-D; cUL; CE; RCM.
