1763-NC01 Allen-Bradley

Name: 1763-NC01 Allen-Bradley
Brand: Allen Bradley
SKU: 1763-NC01
Price: 797.47 USD
Availability: InStock

$440.00 - $797.47

$797.47

$440.00 - $797.47

$797.47

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

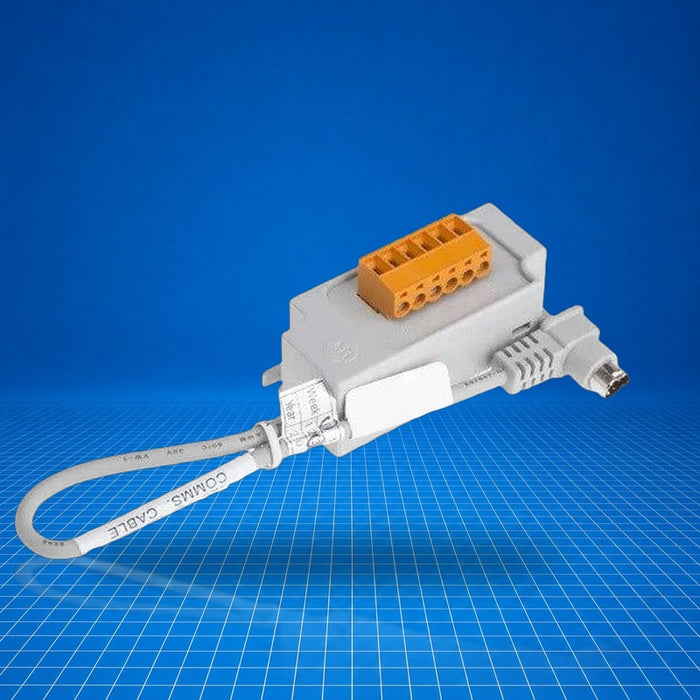

The 1763-NC01 is a dedicated communications cable for Allen-Bradley MicroLogix 1100 controllers. It connects Channel 0 (8-pin Mini-DIN) to RS-485 networks (6-pin Phoenix) supporting protocols such as DH-485, Modbus RTU (master/slave), and DF1 half-duplex (master/slave). Typical uses include daisy-chain communications and network integration of MicroLogix 1100 units in industrial control applications. The 1763-NC01 interfaces legacy serial channels to RS-485 networks to extend connectivity in automation systems.

Best Suited For

Daisy-chain RS-485 networking between MicroLogix 1100 units
Modbus RTU networks (master or slave mode)
DH-485 peer-to-peer communications
DF1 half-duplex master or slave configurations

Length

30 cm

Connectors

8-pin Mini-DIN to 6-pin Phoenix

Communication protocols

RS-485, DH-485, Modbus RTU, DF1 half-duplex

Class I Div 2 rating

Supported

Technical Specifications

Communication & Power

Protocols supported

RS-485; DH-485; Modbus RTU Master/Slave; DF1 Half-Duplex Master/Slave

Physical & Environmental

Length

30 cm

Connectors

8-pin Mini-DIN to 6-pin Phoenix

Country of origin

China

Certifications

UL ListedUL Listed HazardousChina Energy Label

Certified for use in Class I, Division 2 hazardous locations when used as accessory to MicroLogix 1100 controllers. UL Certificate for accessory 1763-NC01 in Class I, Division 2 applications.
