1764-DAT Allen-Bradley
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

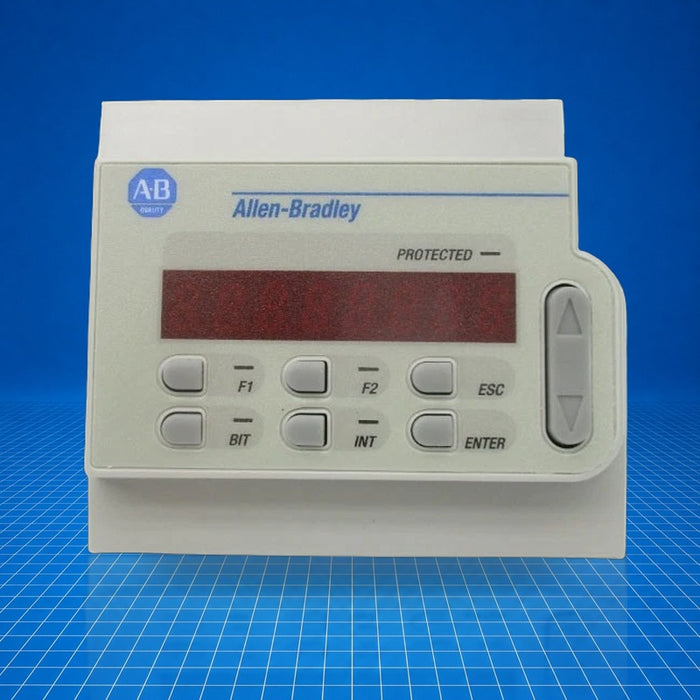

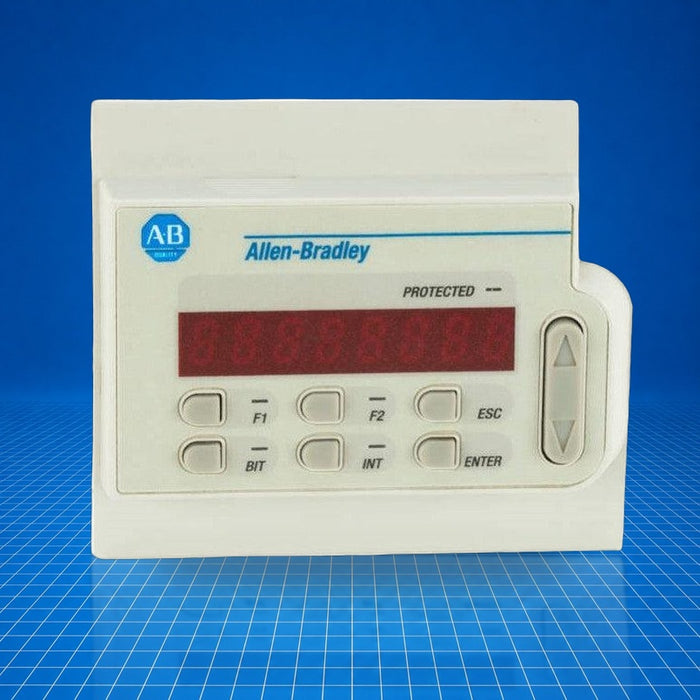

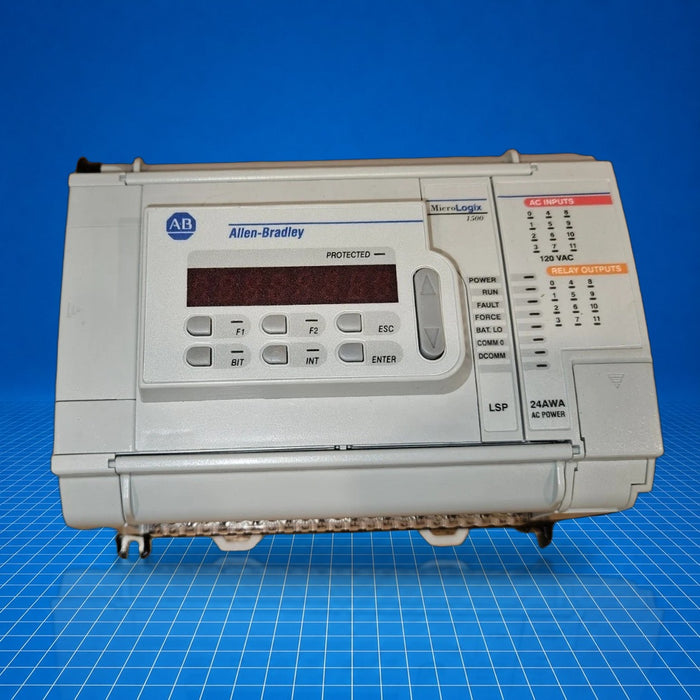

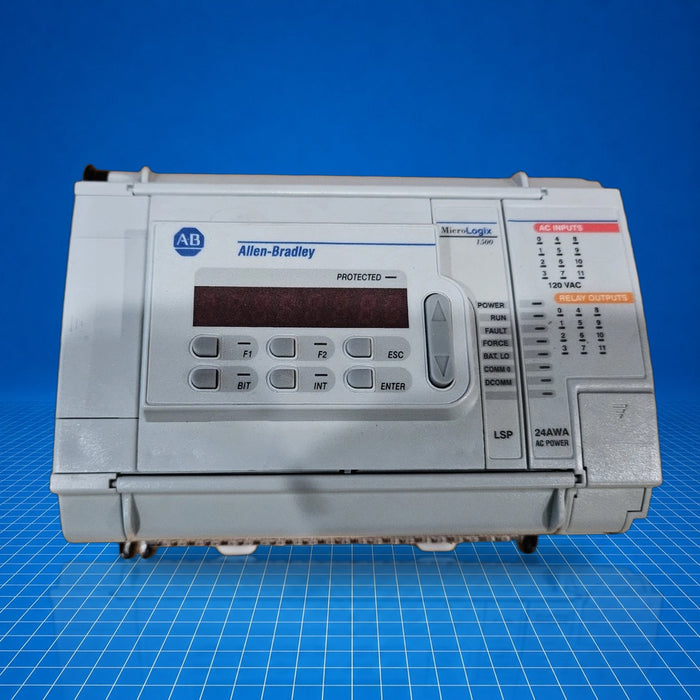

The 1764-DAT is the Data Access Tool for the MicroLogix 1500 (1764) programmable controller family by Allen-Bradley. It plugs into the front of a MicroLogix 1500 processor (LSP or LRP) and provides local display and control of controller registers, faults, and operating mode without a programming workstation. Typically used in maintenance and commissioning contexts, it enables direct monitoring, configuration, and fault clearing on-site. Discontinued as of June 30, 2017, but remains supported via the 1764-UM001 user manual by Rockwell Automation.
Best Suited For
- Local on-machine troubleshooting and parameter tuning
- Field fault diagnostics and mode switching
- Accessing and modifying bit and integer elements without PC
- Quick commissioning where programming workstation is unavailable
