1764-LSP Allen-Bradley
Original price
$450.00
-
Original price
$825.00
Original price
$450.00
$450.00
-
$825.00
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

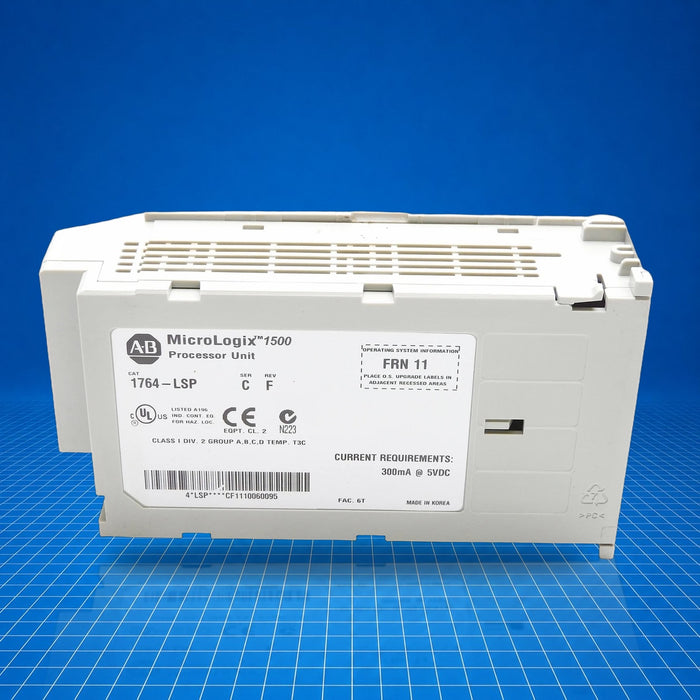

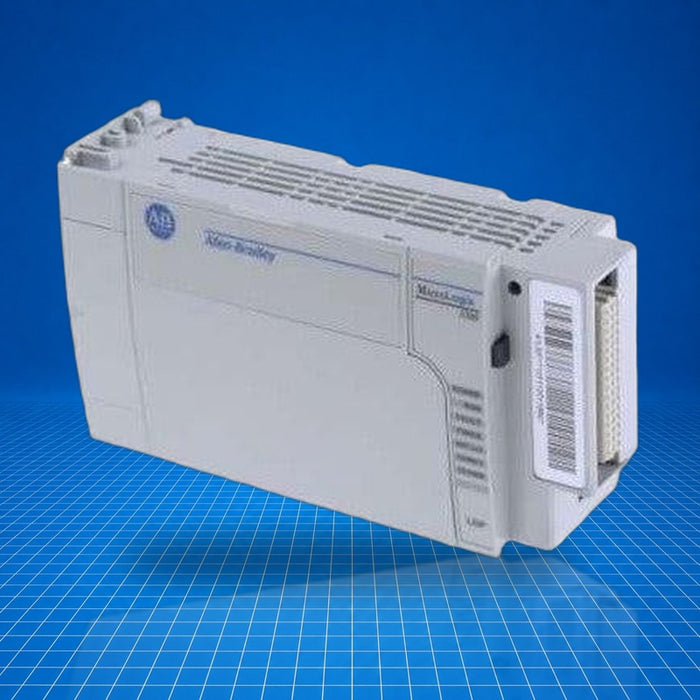

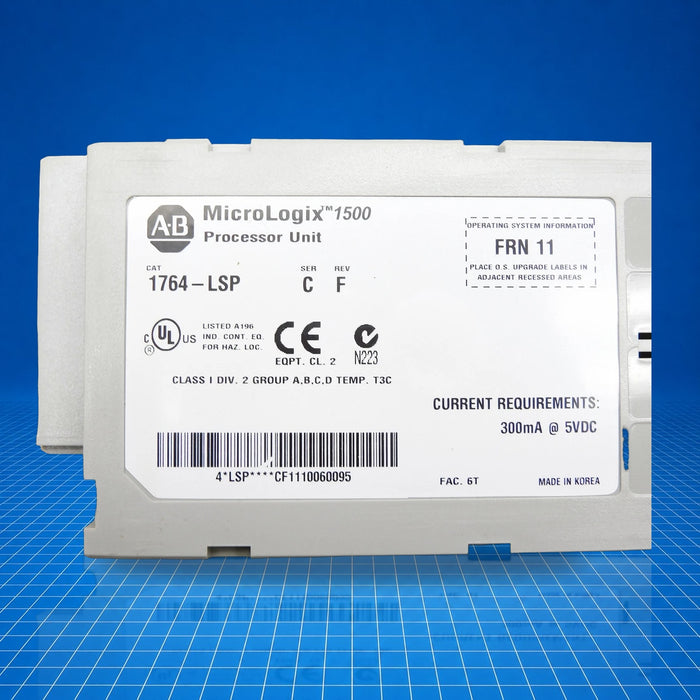

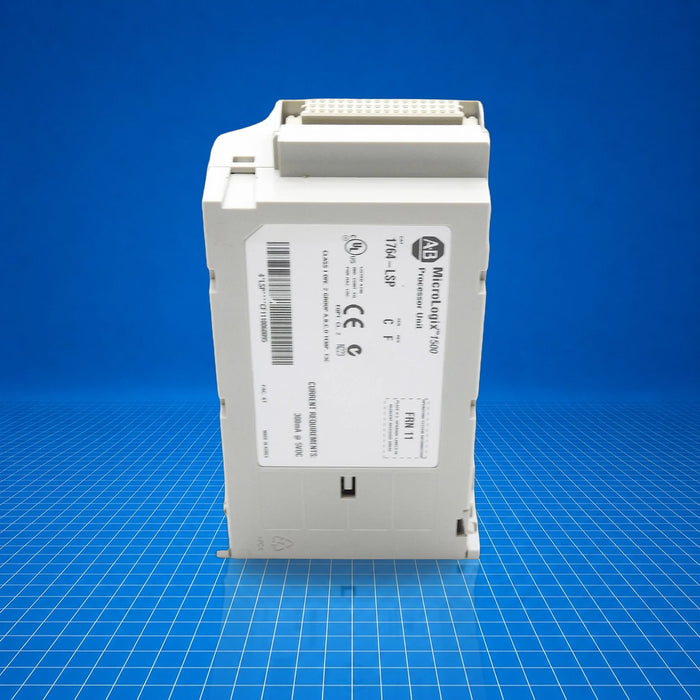

The 1764-LSP is an Allen-Bradley MicroLogix 1500 processor module designed to serve as the central CPU in a MicroLogix 1500 control system. It installs into compatible base units (e.g., 1764-24AWA, 1764-24BWA, 1764-28BXB) to provide logic execution, memory management, and communication capabilities. Typically used in small-to-medium machine control or process automation, the 1764-LSP supports local and expanded I/O arrangements and communicates via RS-232 using DF1, DH-485, Modbus, or ASCII protocols. 1764-LSP is discontinued by the manufacturer but remains available through surplus and refurbished channels.
Best Suited For
- Small machine or process automation with up to 512 I/O points
- MicroLogix 1500 systems requiring integrated RS-232 communications
- Applications needing flexible memory partitioning between program and data
- Environments using MicroLogix 1500 base units (e.g., 1764-24AWA/BWA, 1764-28BXB)
User memory
7 KB total (≈3.6 KB program + 4 KB data)
Communication protocols
DF1, DH-485, Modbus, ASCII
RS-232 port
single non-isolated DTE 9-pin (30 V isolation)
Max I/O
512 (with expansion)
Heat dissipation
1.9 W
Technical Specifications
I/O & Electrical
User memory
7 KB total (≈3.6 KB program + 4 KB data)
Max I/O capacity
512
Communication & Power
Communication protocols
DF1, DH-485, Modbus, ASCII
RS-232 port
1 non-isolated DTE 9-pin (30 V isolation)
Power dissipation
1.9 W
Bus current draw
380 mA
Physical & Environmental
Weight
0.44 lb (0.20 kg)
Enclosure
IP20
