1766-L32BWA Allen-Bradley
Original price
$640.00
-
Original price
$893.75
Original price
$640.00
$640.00
-
$893.75
Current price
$640.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

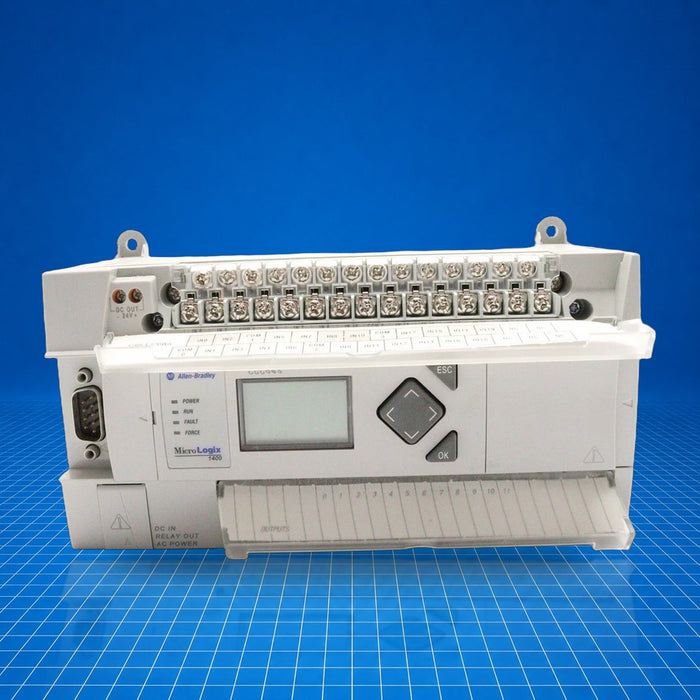

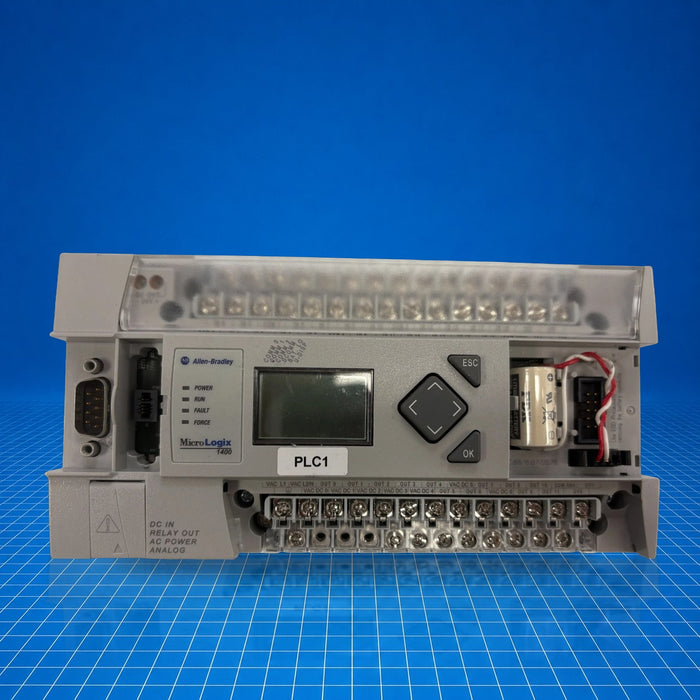

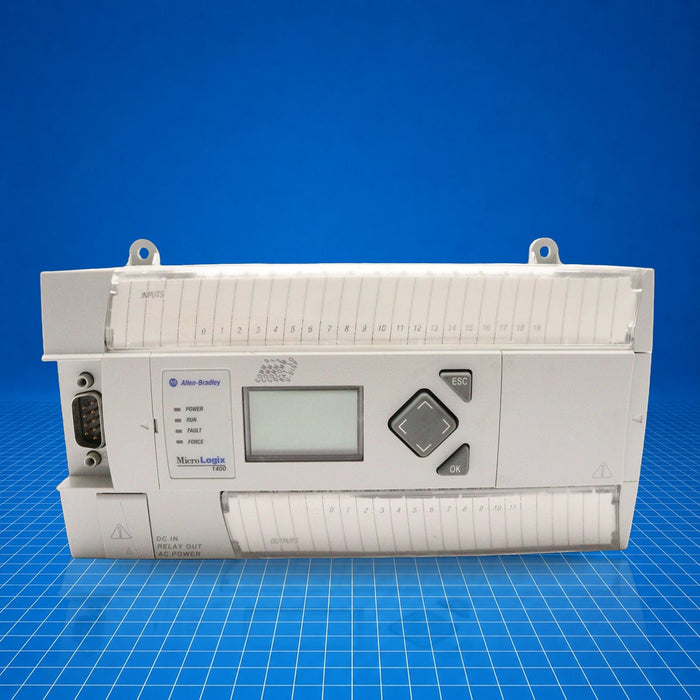

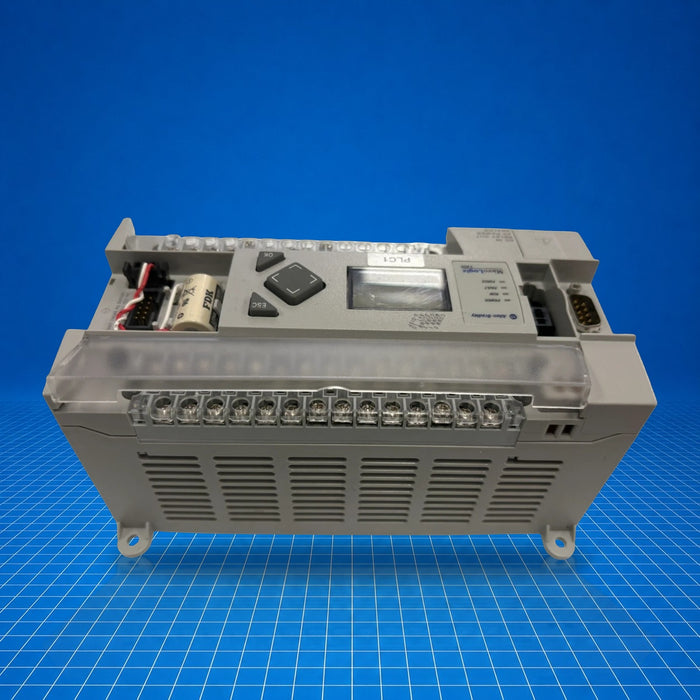

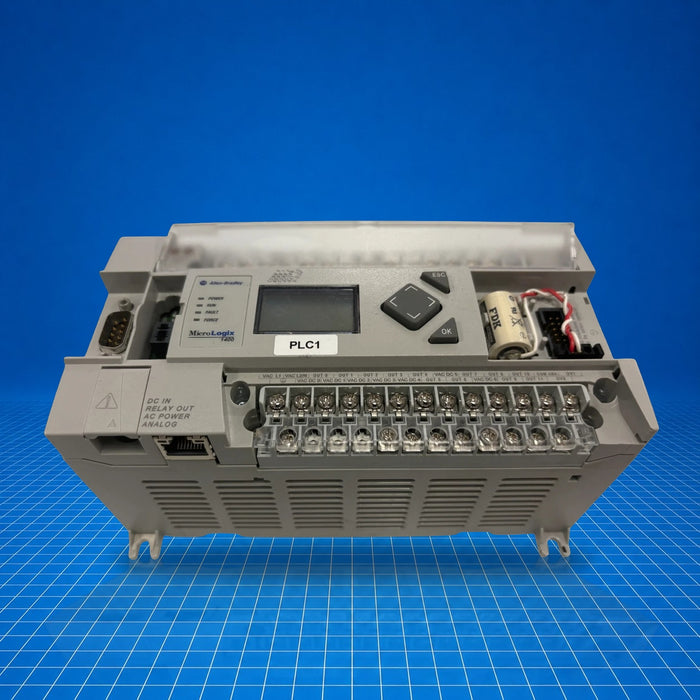

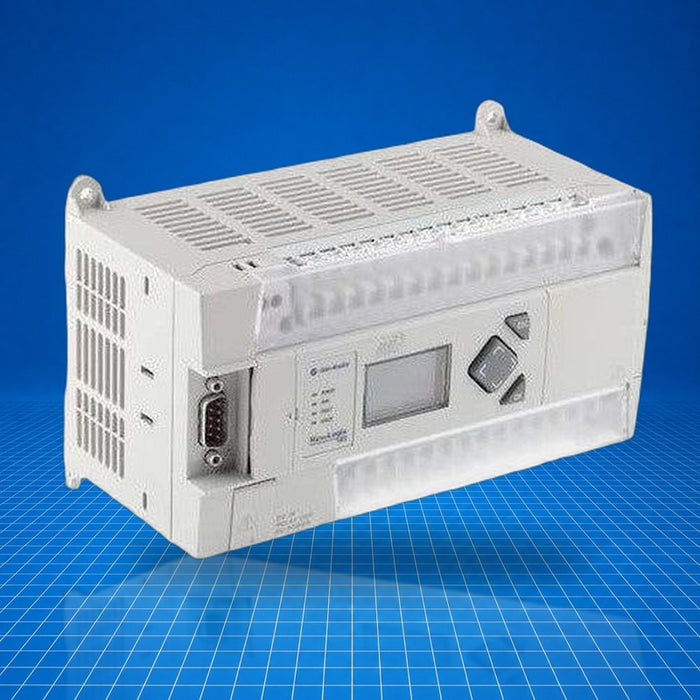

The 1766-L32BWA is an Allen-Bradley MicroLogix 1400 series programmable logic controller. It includes twelve fast 24 V DC inputs, eight standard 24 V DC inputs, and twelve relay outputs. Powered from 120/240 V AC, it provides 24 V DC user power, and features built-in communication via RS-232/RS-485, Ethernet, and non-isolated RS-232. Memory is 20 KB and the controller includes a real-time clock. It is used in industrial control systems for mid-range logic, sequencing, and I/O aggregation, particularly where discrete DC I/O and standard industrial communication are required.
Best Suited For
- Mid-range discrete control with mixed fast/standard DC inputs
- Applications requiring AC mains powered PLC with 24 V DC user power
- Integration into networks via Ethernet/IP or serial links
- Time-based control tasks using built-in real-time clock
Power supply
120-240 V AC
Embedded DC inputs
12 fast + 8 standard
Relay outputs
12
Memory
20 KB
Comm ports
RS-232/RS-485, Ethernet, RS-232
Technical Specifications
I/O & Electrical
Embedded fast inputs
12 × 24 V DC
Embedded standard inputs
8 × 24 V DC
Relay outputs
12
User power
24 V DC
Communication & Power
Input voltage
120…240 V AC
Power consumption
120 VA
RS-232/RS-485 port
1 (isolated combo)
Ethernet port
1 (isolated)
RS-232 port
1 (non-isolated)
Physical & Environmental
Memory
20 KB
