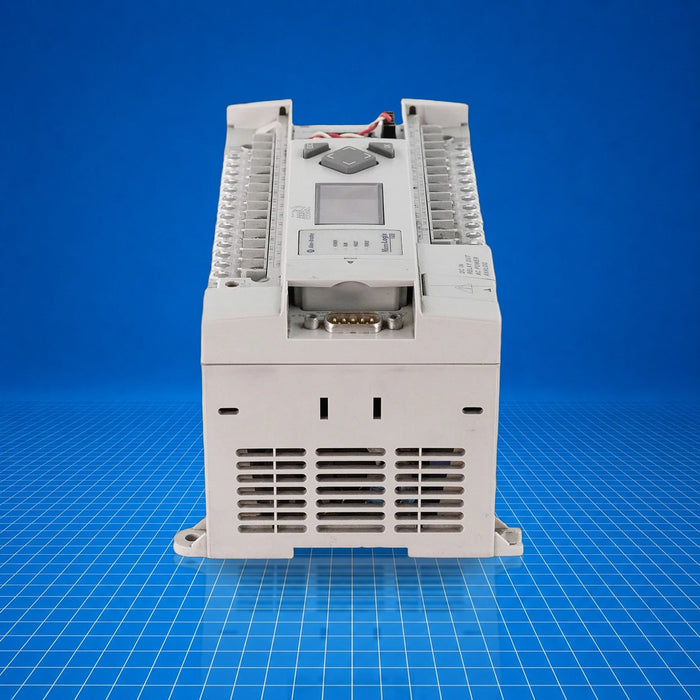

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

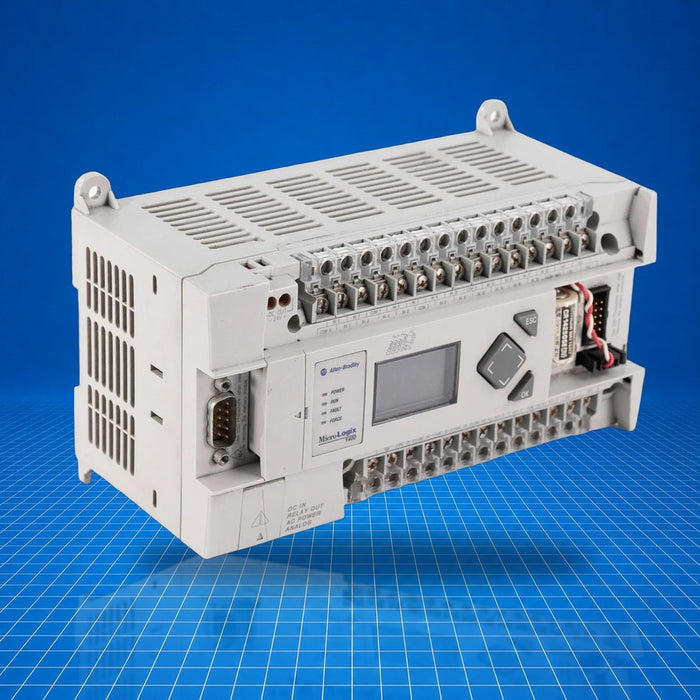

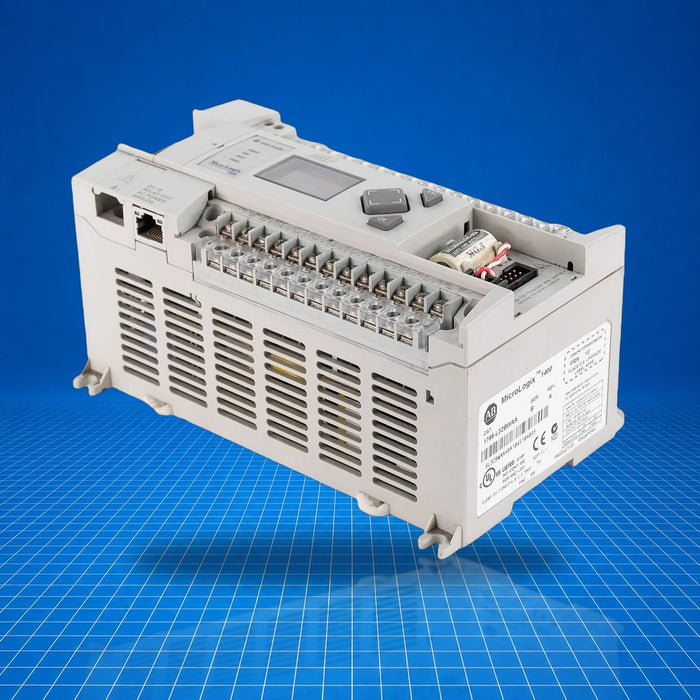

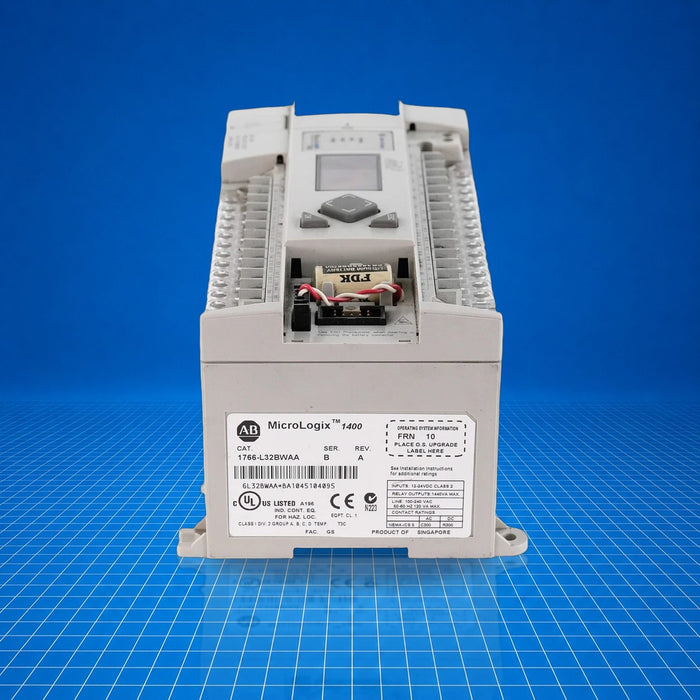

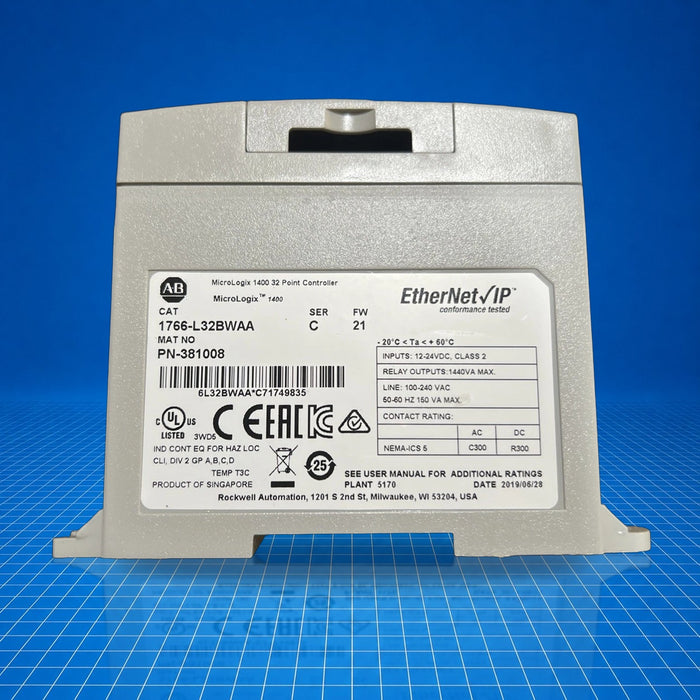

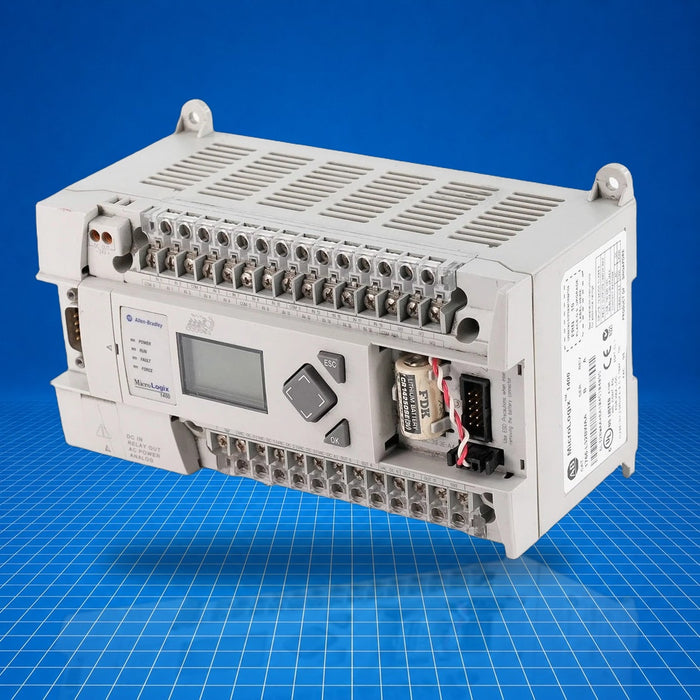

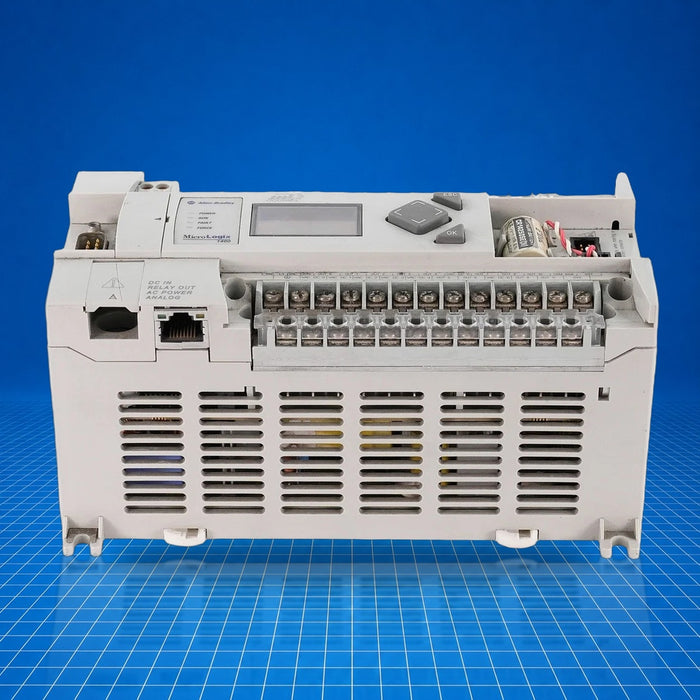

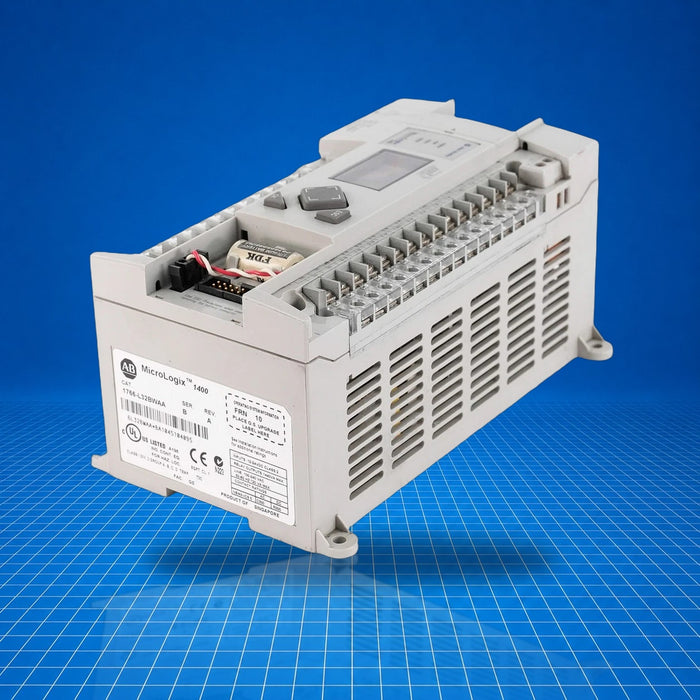

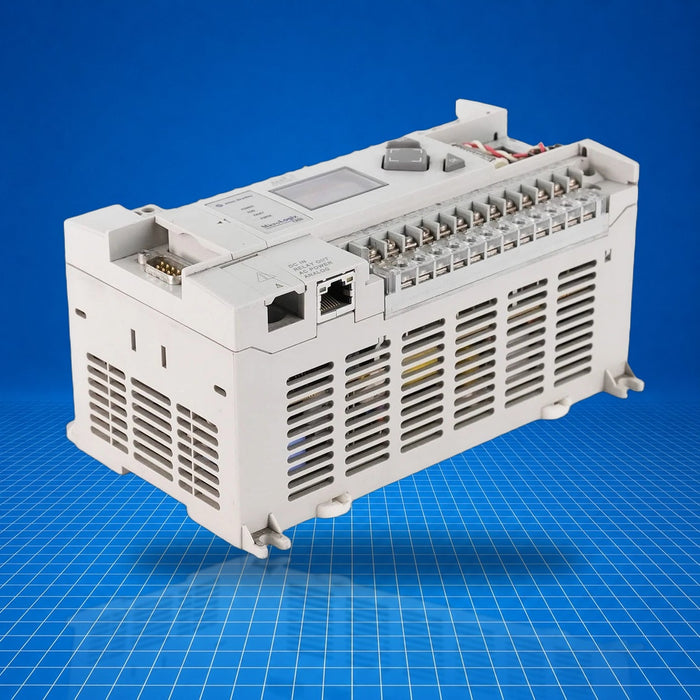

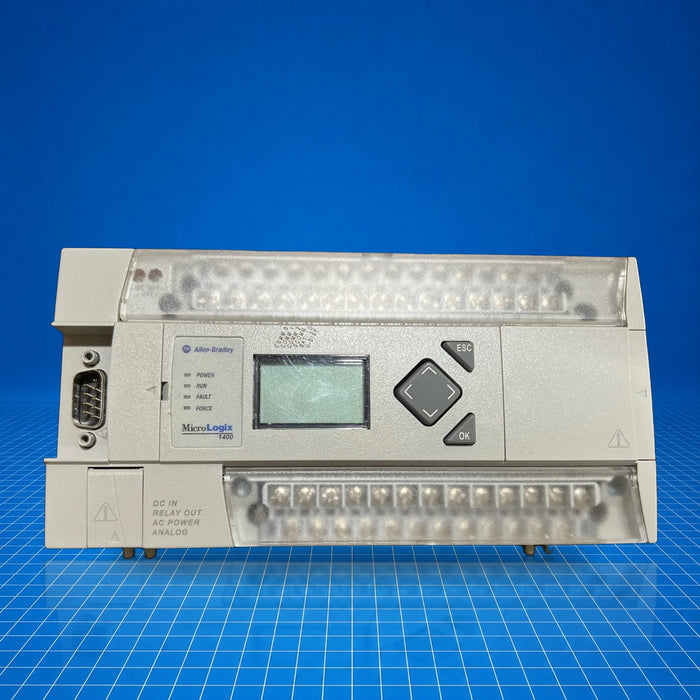

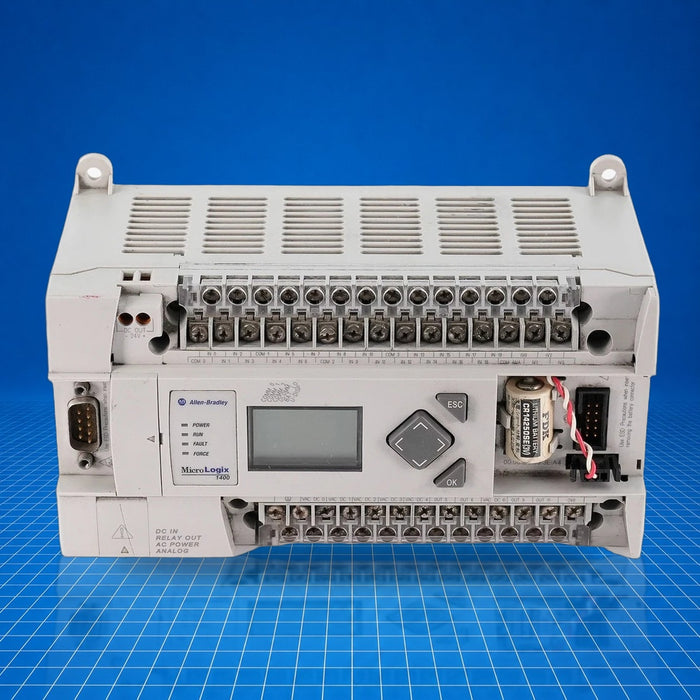

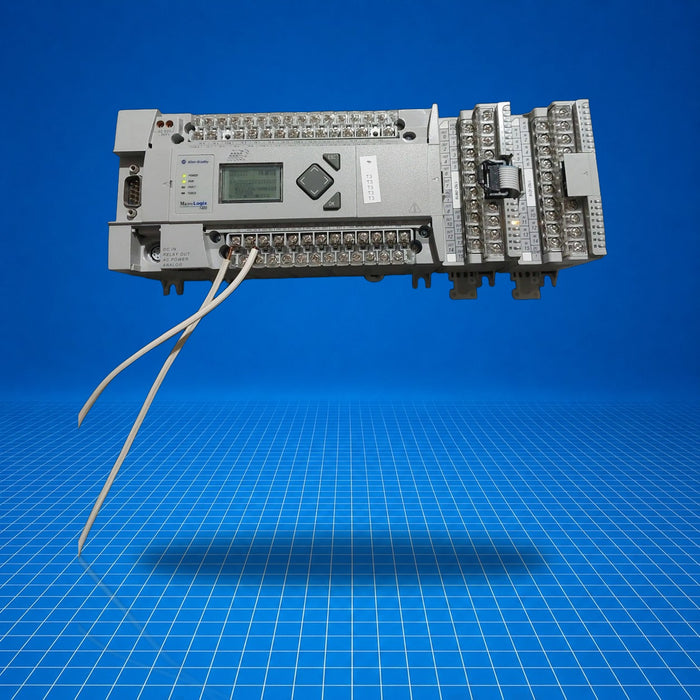

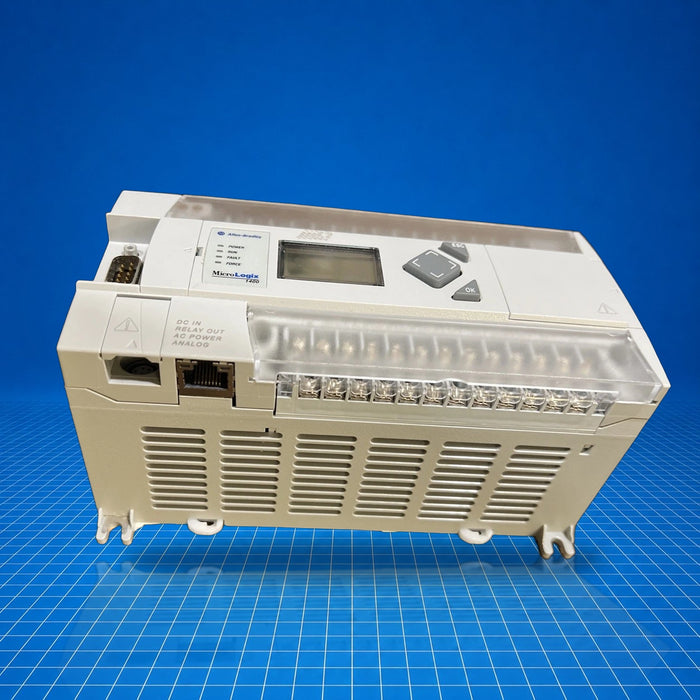

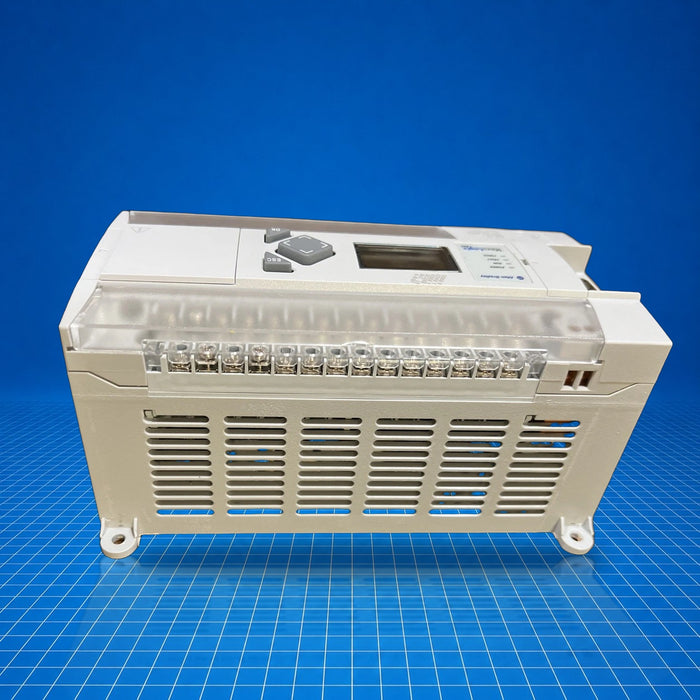

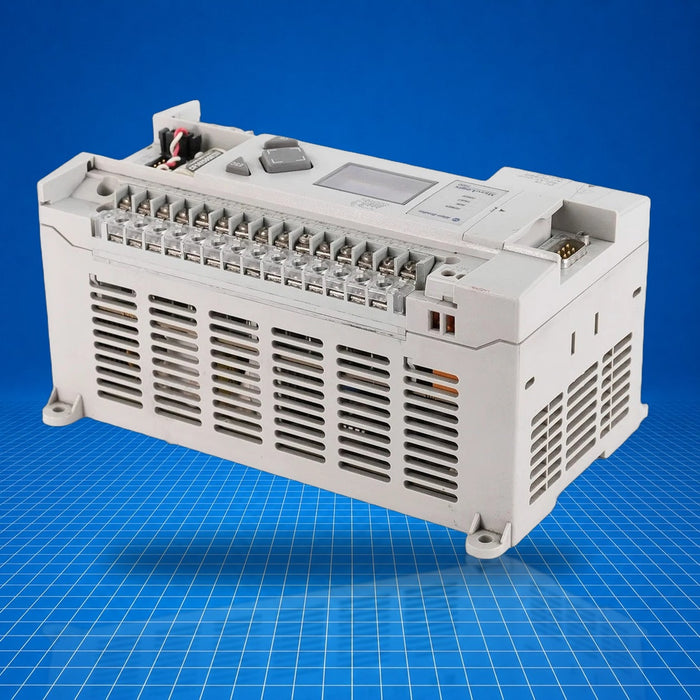

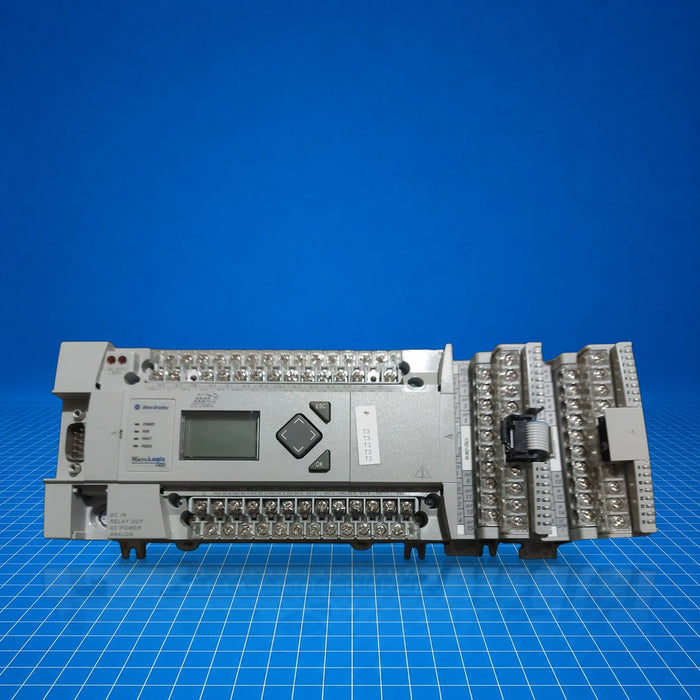

1766-L32BWAA Allen-Bradley
Original price
$760.00
-
Original price
$1,168.72
Original price
$760.00
$760.00
-
$1,168.72
Current price
$760.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1766-L32BWAA is a MicroLogix 1400 series programmable controller by Allen-Bradley (Rockwell Automation). It combines 24 V DC digital I/O and analog I/O with serial and Ethernet/IP communications, serving as a compact controller in distributed control systems, machine-level automation, batch processes, or standalone control applications. The 1766-L32BWAA is designed to interface sensors, actuators, and HMI, and to support real-time tasks like counting, logging, or recipe handling.
Best Suited For
- Machine-level control with both digital and analog I/O
- Systems requiring both RS-232/RS-485 and Ethernet/IP connectivity
- Applications needing real-time clock and high-speed counter capabilities
- Environments needing mixed normal and fast 24 V DC inputs
Fast/Normal DC inputs
12 fast + 8 normal (24 V DC)
Relay outputs
12
Embedded analog I/O
4 analog inputs, 2 analog outputs
Memory
20 KB
Communications
RS-232, RS-232/RS-485, Ethernet/IP
Technical Specifications
I/O & Electrical
Fast inputs
12 × 24 V DC
Normal inputs
8 × 24 V DC
Analog inputs
4 voltage inputs
Analog outputs
2 voltage outputs
Relay outputs
12
Communication & Power
Input power
100-240 V AC
User power
24 V DC (provided)
Serial ports
1 × RS-232, 1 × RS-232/RS-485
Ethernet port
1 × EtherNet/IP
Memory
20 KB
Built-in real-time clock
Yes
Physical & Environmental
Mounting
Panel and DIN-rail
Enclosure
Open-style
Dimensions
3.5 × 7.08 × 3.43 inches
Weight
2 lb (0.91 kg)
Certifications
UL ListedAustralian RCMBureau Veritas
