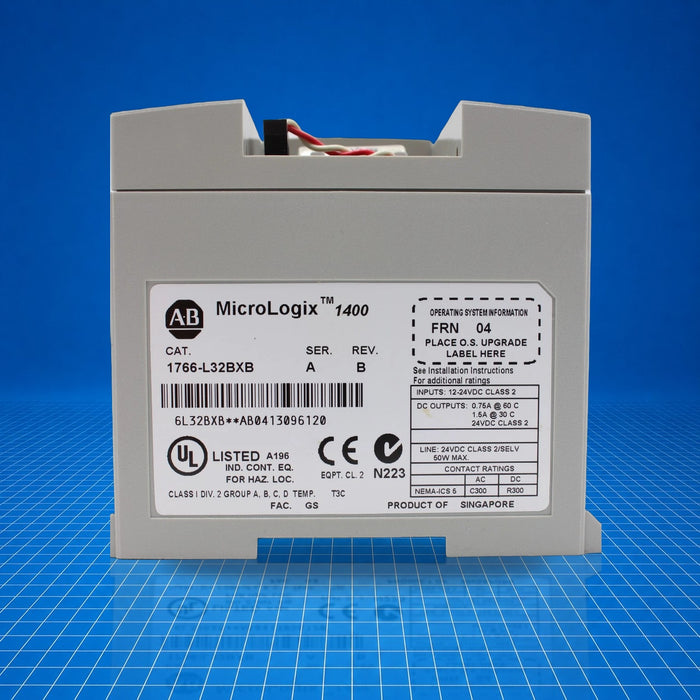

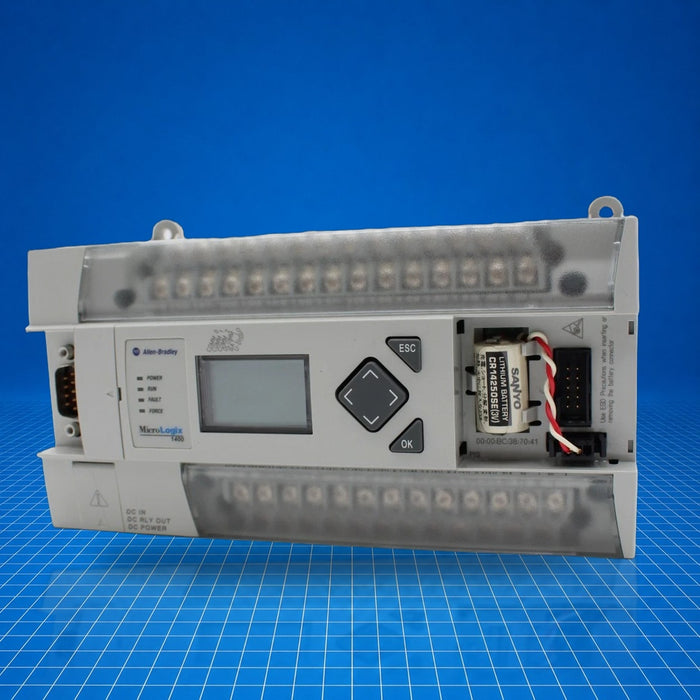

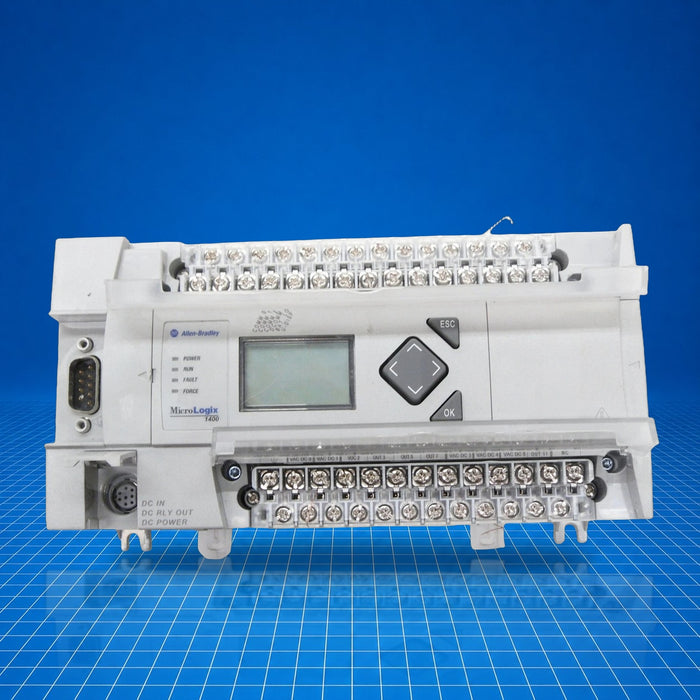

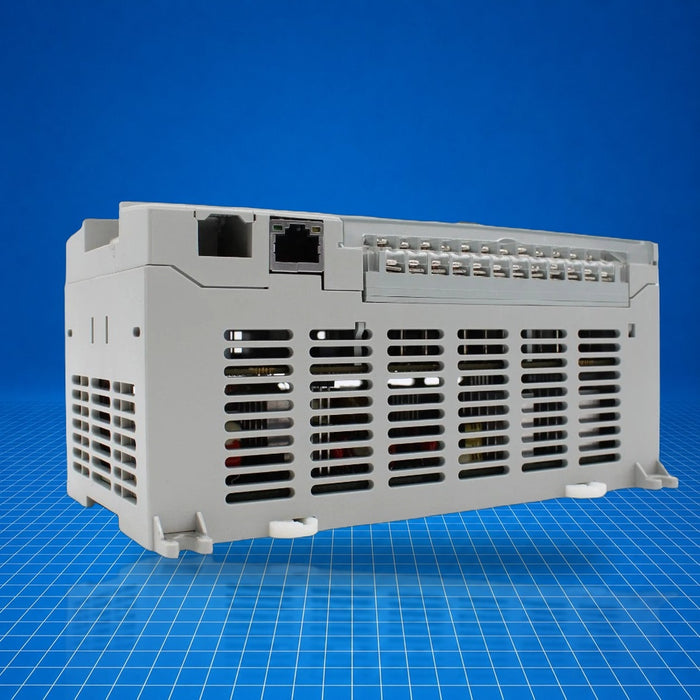

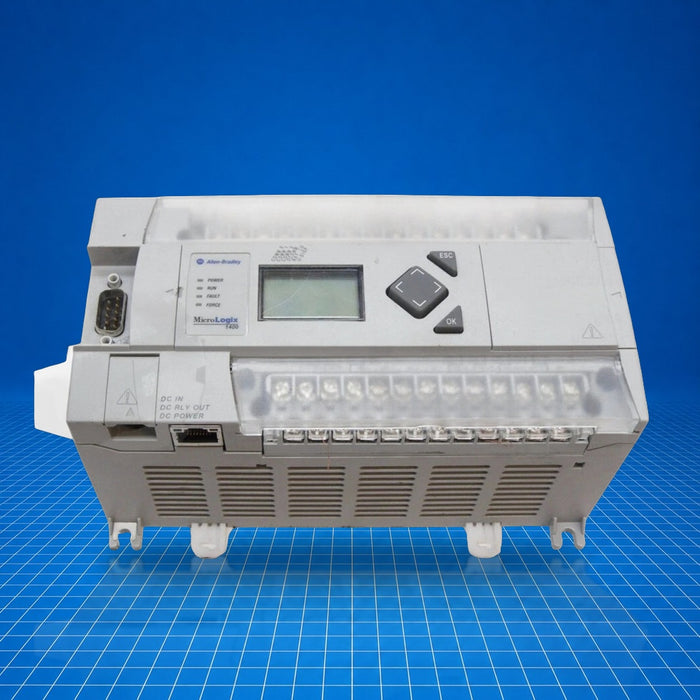

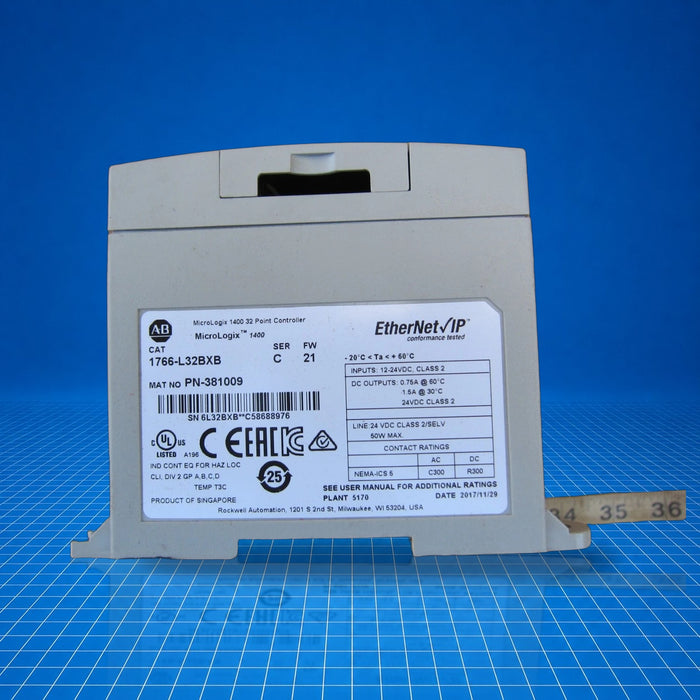

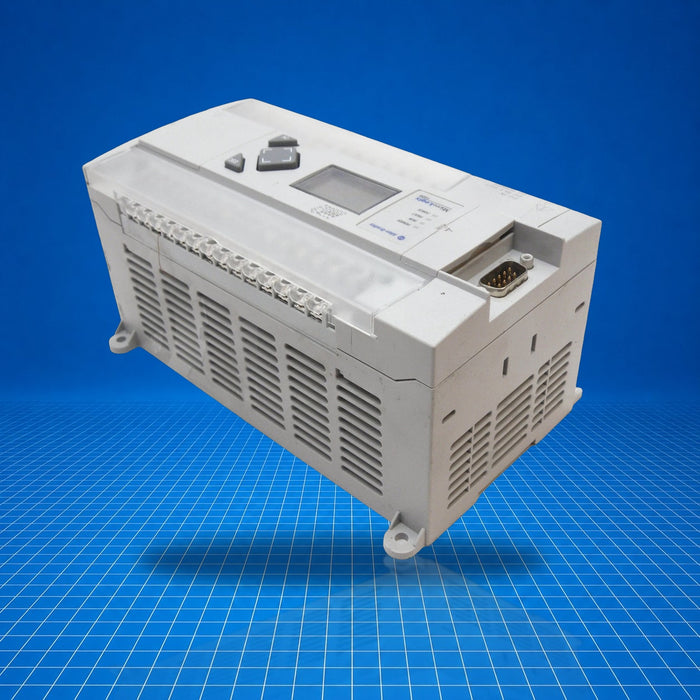

1766-L32BXB Allen-Bradley
Original price
$756.00
-
Original price
$1,097.25
Original price
$756.00
$756.00
-
$1,097.25
Current price
$756.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1766-L32BXB is a programmable logic controller in the Allen-Bradley MicroLogix 1400 family. It integrates 20 digital inputs and 12 outputs-including relay, fast and normal 24 V DC FET outputs-with 20 KB memory and an embedded real-time clock. It supports multiple communication protocols such as EtherNet/IP, Modbus RTU/TCP, DF1, DH-485, DNP3 and ASCII messaging. It typically serves in small to mid-size industrial control applications like machine control, process sequencing, data logging and remote I/O systems. Part number 1766-L32BXB.
Best Suited For
- Mid-range standalone machine control
- Process sequencing with real-time clock needs
- Serial and Ethernet network integration
- Retrofit or replacement within MicroLogix 1400 installations
Digital inputs
20 (12 fast + 8 normal, 24 V DC)
Outputs
(6 relay + 3 fast 24 V DC + 3 normal 24 V DC FET)
Memory
20 KB user memory
Communication
EtherNet/IP, DF1, DH-485, Modbus RTU/TCP, DNP3, ASCII
Technical Specifications
I/O & Electrical
Digital inputs
12 fast + 8 normal, 24 V DC
Relay outputs
6
FET outputs
3 fast + 3 normal, 24 V DC
Communication & Power
Communication protocols
DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP, Modbus TCP/IP
Power supply
24 V DC (Class 2, -15%/+10%)
Power consumption (inrush)
~50 W / 15 A for 20 ms
Physical & Environmental
Memory
20 KB
Real-time clock
Embedded RTC
Dimensions (H×D)
~90 × 87 mm
Certifications
UL ListedAustralian RCMAmerican Bureau of Shipping
