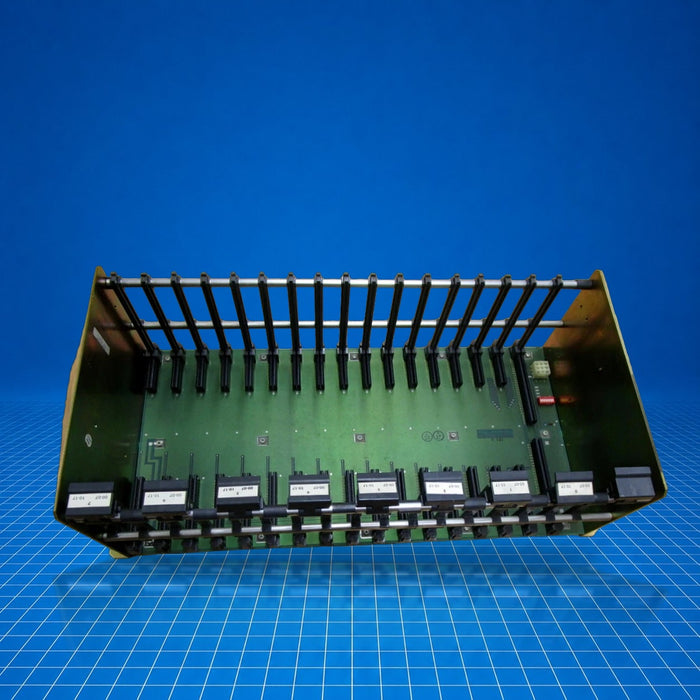

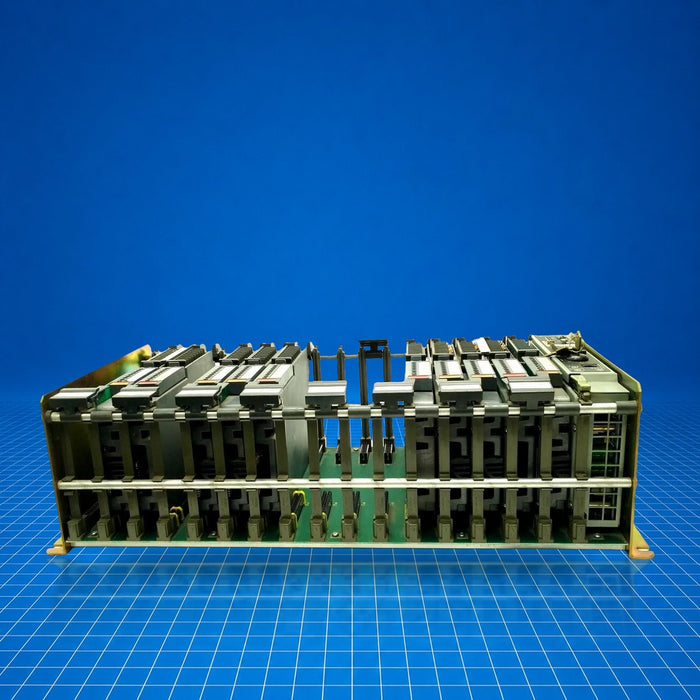

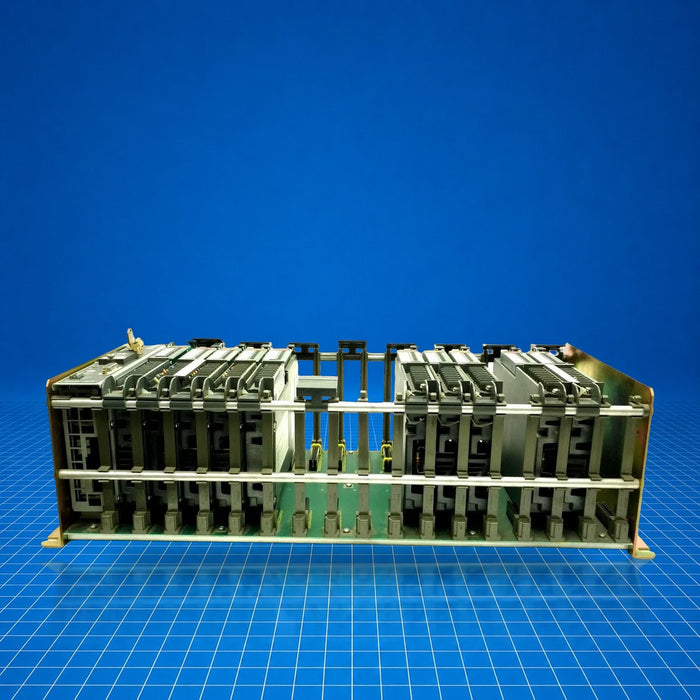

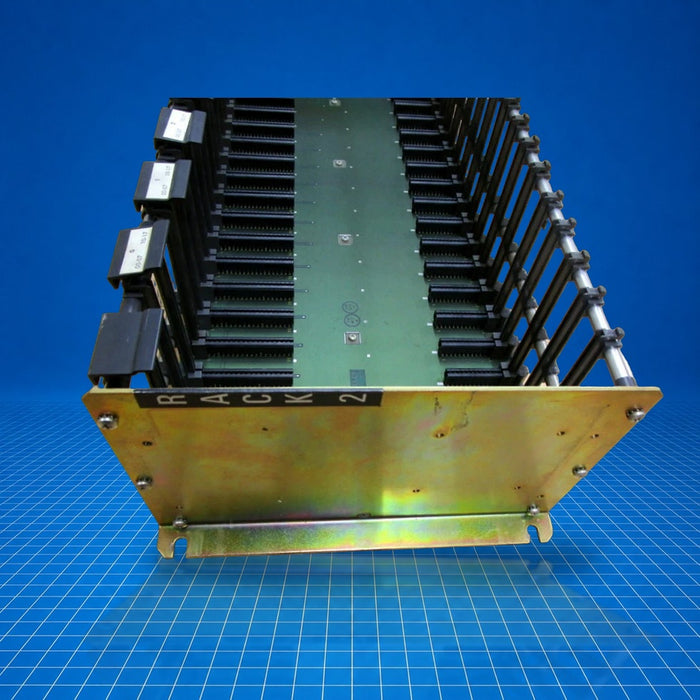

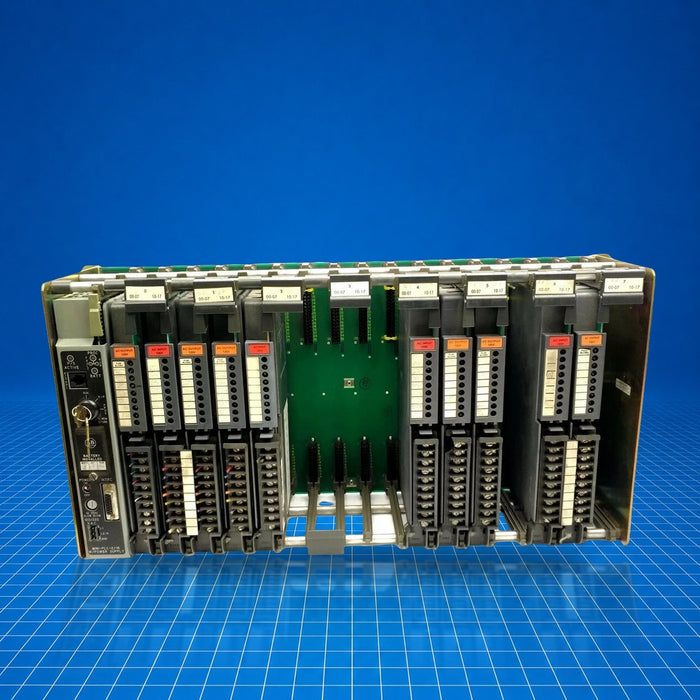

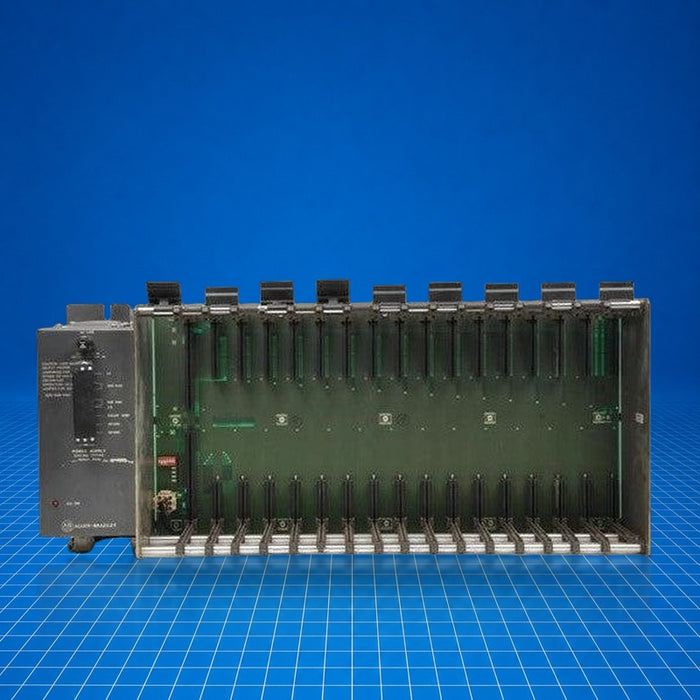

1771-AD Allen-Bradley
Original price
$0.00
-
Original price
$493.96
Original price
$493.96
$0.00
-
$493.96
Current price
$493.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1771-OAD is a 16-point digital AC output module in the Allen-Bradley 1771 (PLC-5) family. It provides field control by switching AC loads in industrial control systems. Typical applications include driving indicator lights, relays, solenoid valves, and motor starters. The module plugs into a 1771 I/O chassis (A1B-A4B, AM1, AM2) and interfaces with the PLC backplane. 1771-OAD offers channel-level status indicators and a fuse-blown indicator.
Best Suited For
- Switching multiple AC field loads (e.g., pumps, solenoids)
- Installation in PLC-5/1771 I/O chassis (A1B-A4B, AM1, AM2)
- Applications requiring zero-crossing switching technology
- Diagnostics via individual output and fuse status LEDs
Outputs
16 points
Output voltage range
10 to 138 V AC @ 47-63 Hz
Output current rating
2 A per output (≤ 8 A per module)
Backplane current
295 mA @ 5 V
Environmental operating temp
0 °C to 60 °C (32 °F to 140 °F)
Technical Specifications
I/O & Electrical
Output voltage range
10 to 138 V AC @ 47-63 Hz
Output current rating
2 A per output; not to exceed 8 A per module
Surge current (max)
25 A per output for 100 ms; repeatable every 1 s
Minimum load current
5 mA per output
On-state voltage drop (max)
1.5 V (<50 mA load), 5.8 V (>50 mA load)
Off-state leakage current (max)
3.0 mA per output @ 138 V AC
Communication & Power
Backplane current
295 mA @ 5 V
Power dissipation
13.0 W (max), 1.5 W (min)
Thermal dissipation
48.0 BTU/hr (max), 5.13 BTU/hr (min)
Physical & Environmental
Operating temperature
0 °C to 60 °C (32 °F to 140 °F)
Storage temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Relative humidity
5 to 95 % without condensation
Module location
1771-A1B to -A4B or later, 1771-AM1, -AM2 chassis
Wire size
14 ga (2 mm²) stranded max; 3/64 in (1.2 mm) insulation
Field wiring arm
1771-WH or optional fused 1771-WHF
Certifications
UL listedCSA certifiedCSA Class I, Division 2, Groups A, B, C, DCE marked
Isolation meets or exceeds UL 508 and CSA C22.2 No. 142.
