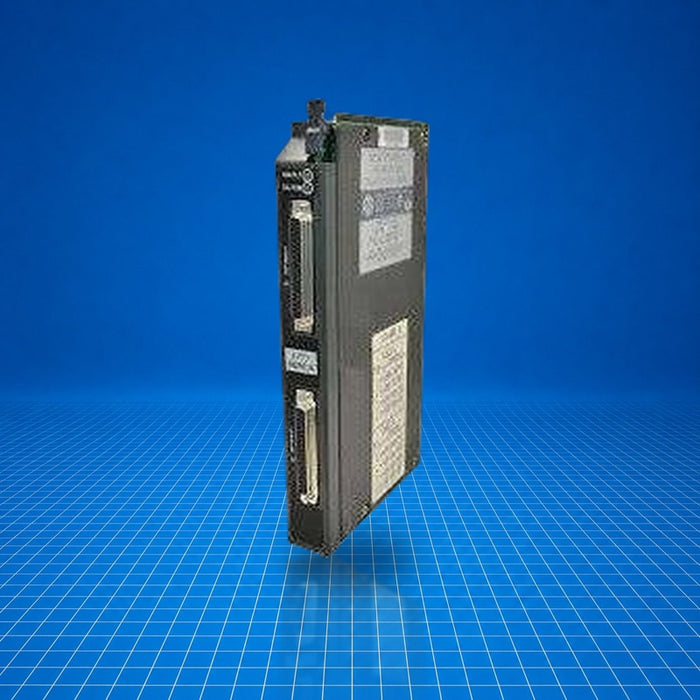

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1771-NBRC Allen-Bradley
Original price
$0.00
-
Original price
$5,099.98
Original price
$5,099.98
$0.00
-
$5,099.98
Current price
$5,099.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

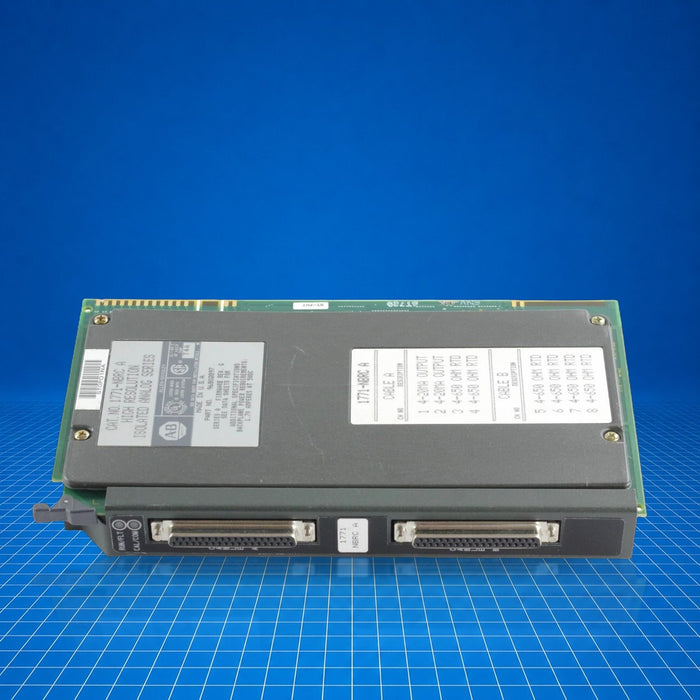

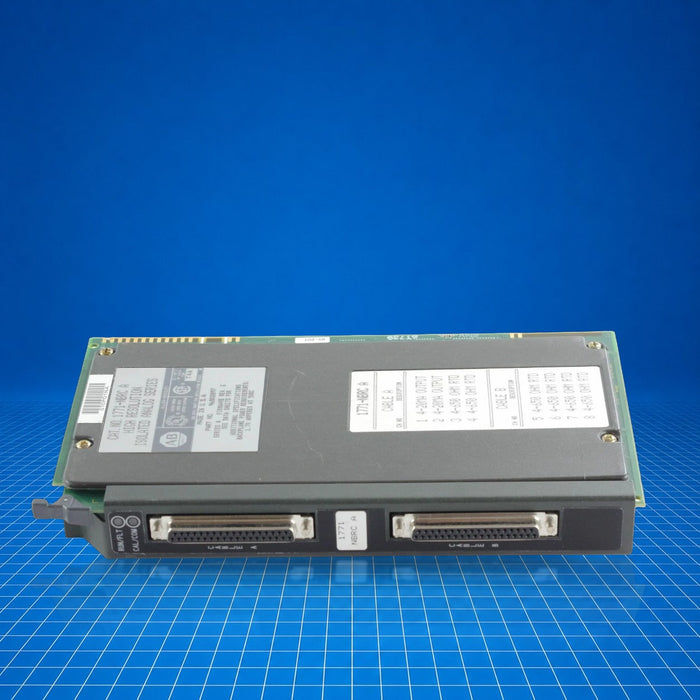

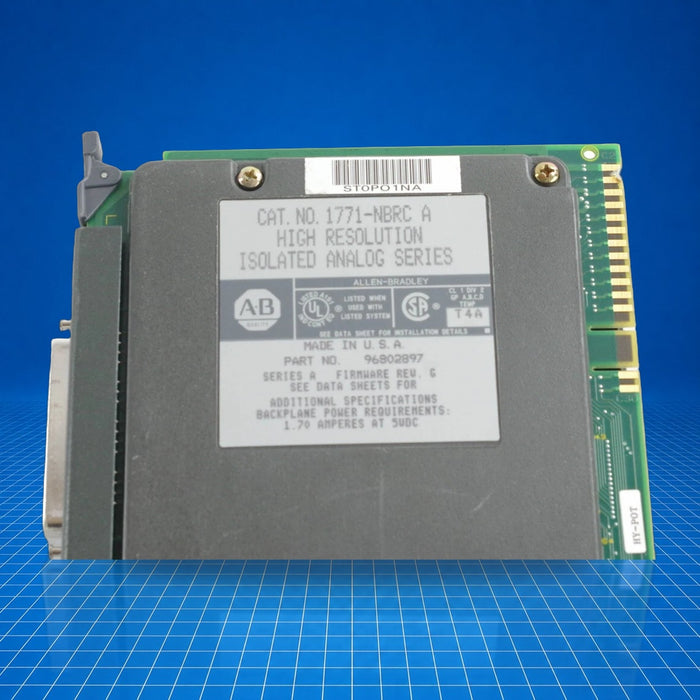

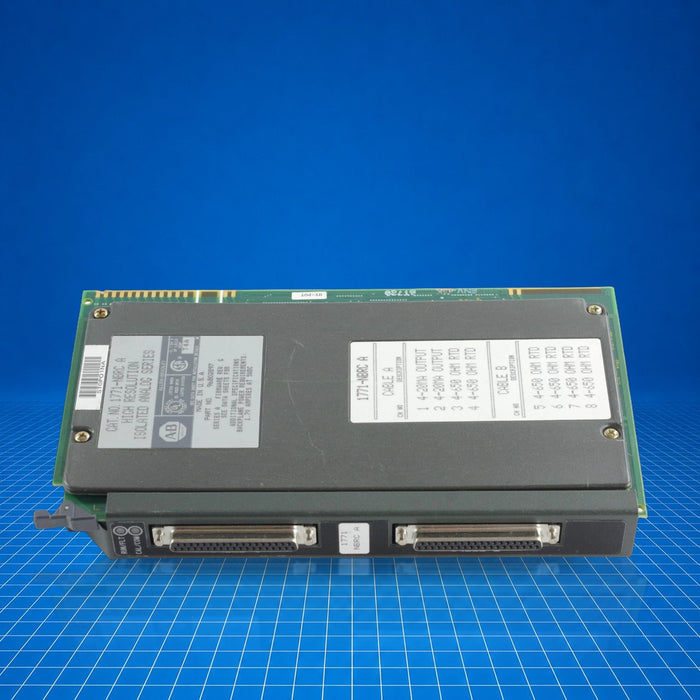

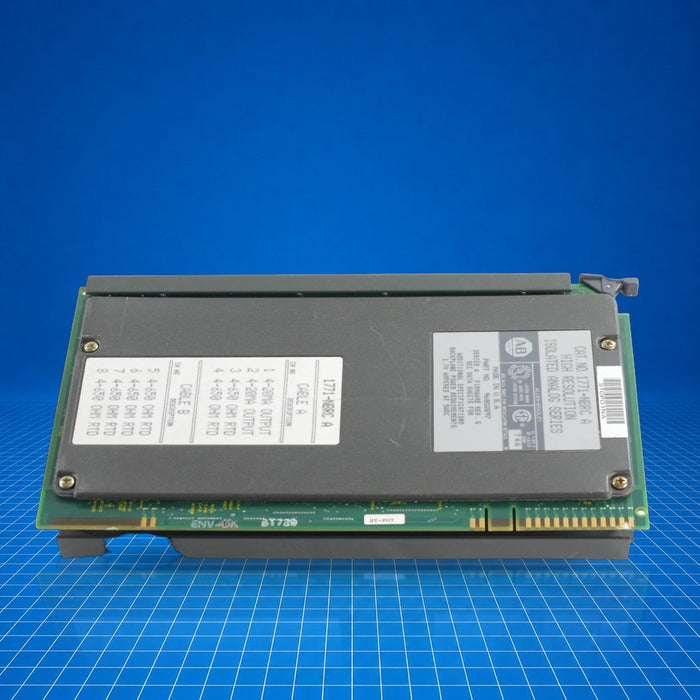

The 1771-NBRC is an analog I/O module in the Allen-Bradley 1771 N-Series platform, intended for the PLC-5 or PLC-3 control systems. It provides six RTD/ohms input channels and two 4-20 mA output channels, facilitating temperature and resistance measurement alongside process control signal generation. Typically used in process monitoring and temperature control loops where both sensor input and current output are required in a single module. 1771-NBRC supports efficient signal integration within 1771 I/O chassis.
Best Suited For
- Integration with PLC-5 or PLC-3 systems
- Temperature and resistance measurement via RTD or ohmic sensors
- Generating standard 4-20 mA analog control outputs
- Compact I/O solutions where combined input/output is needed
RTD/Ohms inputs
6 channels
Analog outputs
2 × 4-20 mA
Backplane current load
1.7 A
Compatible chassis
1771 I/O chassis
Technical Specifications
I/O & Electrical
Input type
RTD/Ohms
Number of input channels
6
Output type
Current, 4-20 mA
Number of output channels
2
Communication & Power
Backplane current load
1.7 A
Physical & Environmental
Processor compatibility
PLC-3 or PLC-5 (1771 I/O structure)
