1771-ODD Allen-Bradley
Original price
$450.00
-
Original price
$480.00
Original price
$450.00
$450.00
-
$480.00
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

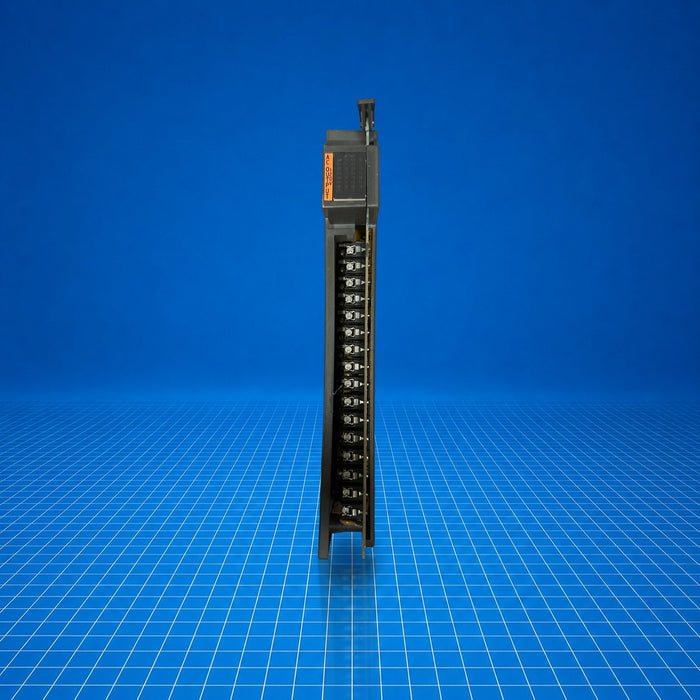

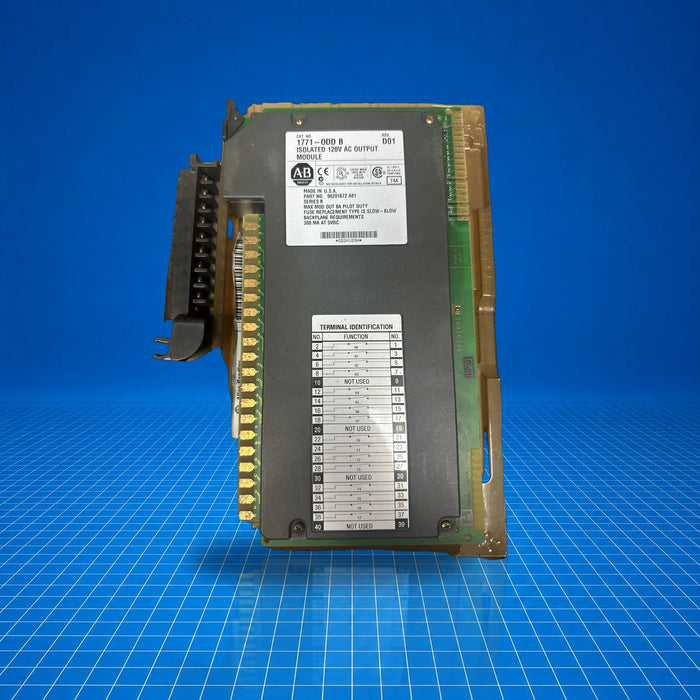

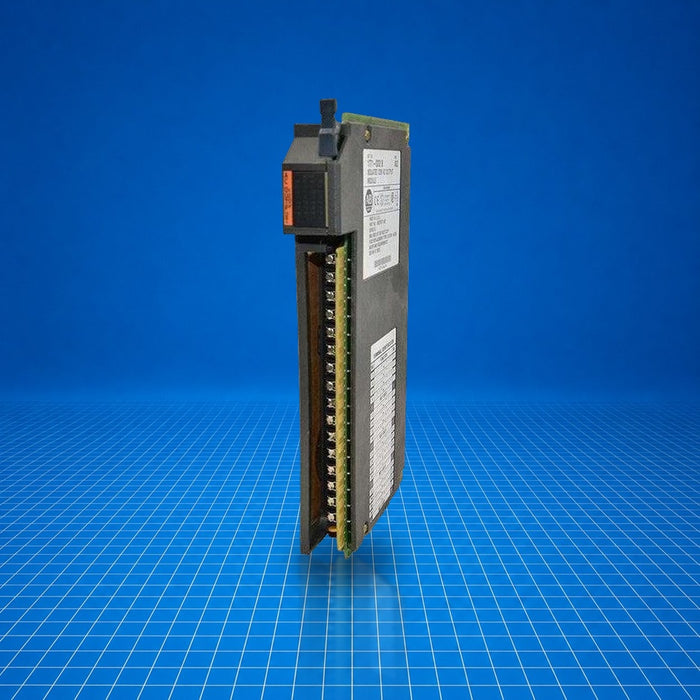

The 1771-ODD is an isolated AC digital output module in the Allen-Bradley 1771 (PLC-5) family. It provides 16 isolated output channels rated for 85-138 V AC (nominal 120 VAC) and is installed in a compatible 1771 I/O chassis. Each channel uses zero-cross switching triac outputs with built-in suppression, suitable for driving motor starters, solenoids, or other AC loads. The module draws 420 mA from the backplane and delivers up to 2 A per channel, 8 A total. Discontinued as of December 31, 2016.
Best Suited For
- Driving motor starters or solenoids on 120 VAC circuits
- Use in existing PLC-5 systems requiring isolated AC outputs
- Applications needing zero-cross switching for reduced surge stress
- Maintenance or replacement of legacy Allen-Bradley 1771 I/O racks
Channels
16
AC operating voltage
85-138 V AC
Max current per output
2 A
Backplane current
420 mA
Power dissipation
14.2 W (max)
Technical Specifications
I/O & Electrical
Number of outputs
16
Output voltage range
85-138 V AC
Max continuous current per output
2 A
Max continuous current per module
8 A
On-state voltage drop
≤ 1.5 V AC @ > 65 mA; ≤ 6.5 V AC @ < 65 mA
Off-state leakage current
≤ 3.0 mA @ 138 V AC; nominal 1.5 mA @ 120 V AC
Communication & Power
Backplane current draw
420 mA (5 V DC)
Data format
BDC or Natural Binary
Signal delay, Off→On / On→Off
≤ 8.8 ms @ 60 Hz; ≤ 10.6 ms @ 50 Hz
Physical & Environmental
Mounting
Rack-mountable in 1771-A1B through A4B or later chassis
Suppression
MOV plus RC network per output tripping surges; additional if inductive load
