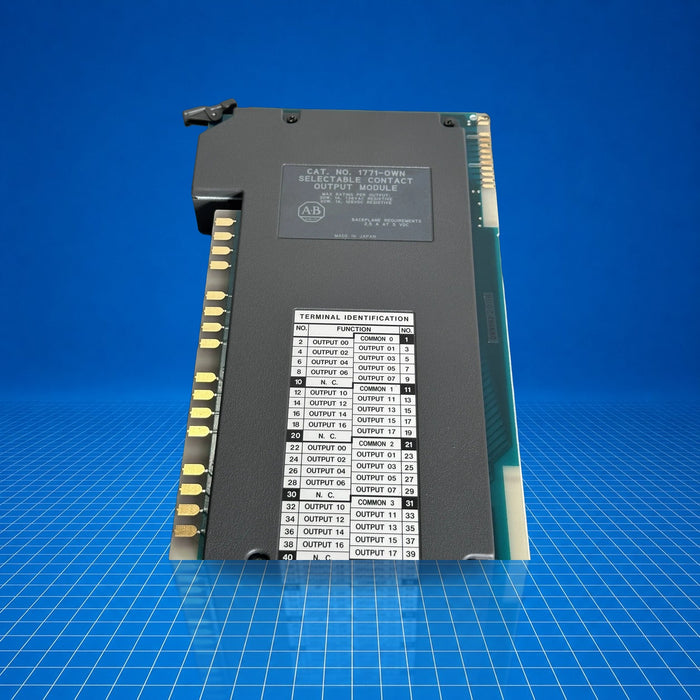

1771-OWN Allen-Bradley
Original price
$411.52
-
Original price
$1,372.25
Original price
$411.52
$411.52
-
$1,372.25
Current price
$411.52
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1771-OWN is a selectable contact output module in the 1771 PLC-5 I/O family. It provides field contact outputs that relay logic signals from the PLC backplane. Typically installed in a PLC-5 chassis, this module drives external loads such as lamp, relay, or interposing contacts within control panels, machine logic sequences, or industrial automation routines. The 1771-OWN operates with both AC and DC output ranges and includes jumper-selectable outputs for flexible grouping and common configurations. Part number 1771-OWN.
Best Suited For
- PLC-5 chassis installations
- Controlling resistive field loads (lamps, relays)
- Discrete output expansion in legacy Allen-Bradley systems
- Applications requiring jumper-selectable contact groups
Outputs
8 (in 4 groups of 2)
Output load per channel
1.0 A continuously
Output voltage range AC
24-138 V AC
Output voltage range DC
24-125 V DC
Backplane logic supply current
700 mA (all coils energized)
Technical Specifications
I/O & Electrical
Number of outputs
8 (4 groups of 2)
Max load per output
1.0 A continuously
AC output range
24-138 V AC
DC output range
24-125 V DC
Communication & Power
Backplane supply current (logic + coils)
700 mA
