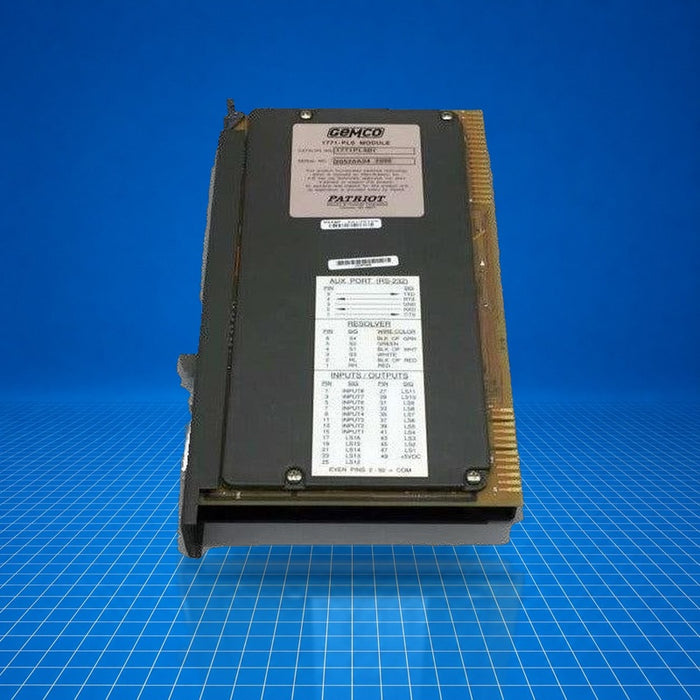

1771-PLS-B1 Allen-Bradley
Original price
$0.00
-
Original price
$2,930.33
Original price
$2,930.33
$0.00
-
$2,930.33
Current price
$2,930.33
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1771-PLS-B1 is a programmable limit-switch module designed for integration within the Allen-Bradley PLC-5 1771 I/O system. Installed in a standard 1771 I/O chassis, the module provides high-speed limit-switch functionality via a combination of field-configurable inputs, direct digital outputs, and an optional resolver interface. Typical use cases include product presence detection, registration-mark synchronization, gluing, assembly, and labeling processes. 1771-PLS-B1 supports 16 outputs and manages up to 1,024 setpoints, with a refresh rate of 5 µs.
Best Suited For
- High-speed gluing operations
- Labeling and registration-mark synchronization
- Product presence detection on fast production lines
- Integration into PLC-5 1771 chassis systems
Inputs
8 field-configurable
Outputs
16 direct outputs
Resolution
14-bit
Refresh time
5 µs
Technical Specifications
I/O & Electrical
Inputs
8 field-configurable inputs
Outputs
16 direct outputs
Resolution
14-bit
Setpoints
1,024
Communication & Power
Power (module)
5 V DC
Backplane power
10 Watts max.
Interface
RS-232
Physical & Environmental
Operating temperature
0 to 55 °C
