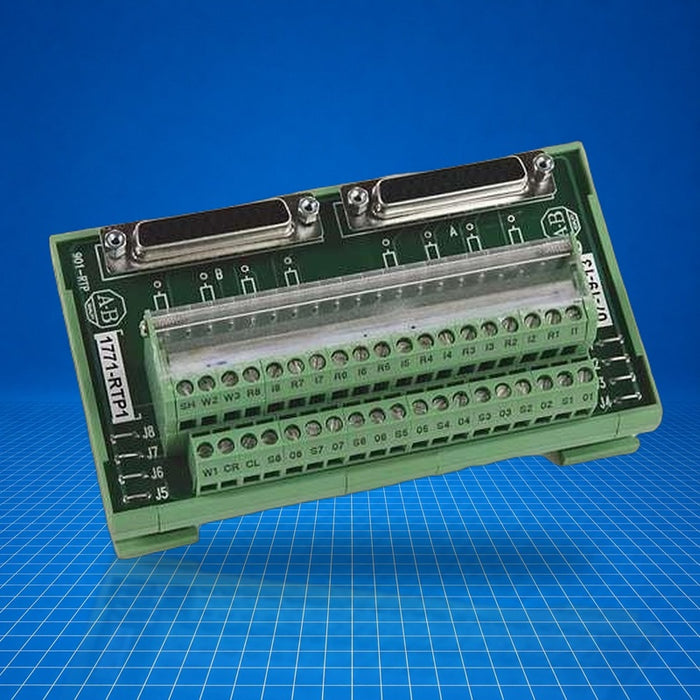

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1771-RTP3 Allen-Bradley
Original price
$536.00
-
Original price
$618.75
Original price
$536.00
$536.00
-
$618.75
Current price
$536.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1771-RTP3 is a Remote Termination Panel (RTP) in the Allen-Bradley PLC-5/1771 family. It serves as an interface module for analog I/O modules-particularly isolated analog input modules-providing resistor and fuse integration to protect 4-20 mA signal paths and ±5 V sources. Typically mounted on standard DIN-1 or DIN-3 rails, 1771-RTP3 enables remote termination of wiring in industrial control architectures, such as distributed I/O in process control and discrete analog signal acquisition. 1771-RTP3 facilitates reliable field wiring and protection for analog sensing in harsh factory or processing environments.
Best Suited For
- Termination of 4-20 mA analog input modules
- Integration with ±5 V analog input modules in PLC-5 systems
- DIN-rail mounted remote analog terminal interface
- Protection via fuses and resistors on analog signal paths
Analog I/O channels
8 channels
Signal type supported
4-20 mA and ±5 V
Protection
Resistors and ¼ A fast-acting fuses
Mounting
DIN-1 or DIN-3 rail
Complementary to
1771-N series analog input modules
Technical Specifications
I/O & Electrical
Channels
8 analog channels
Signal support
4-20 mA, ±5 V
Protection fuses
¼ A fast-acting, 5 mm × 20 mm (e.g. Bussmann GMA-¼, 250 V)
Physical & Environmental
Mounting
DIN-1 or DIN-3 rail
