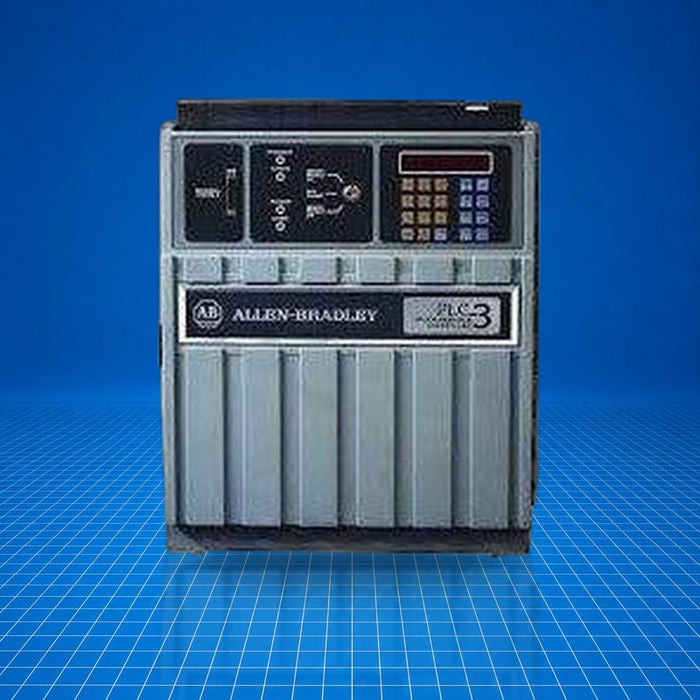

1775-A1 Allen-Bradley
Original price
$459.96
-
Original price
$2,791.80
Original price
$459.96
$459.96
-
$2,791.80
Current price
$459.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1775-A1 is the primary processor chassis for the PLC-3 family of programmable controllers. It houses up to six PLC-3 modules, distributing +5 V, ±15 V power and providing the backplane infrastructure for communication and power. In a control system, it forms the mechanical and electrical core, supporting processors, memory, I/O scanners, power supplies, and interface modules. Applications include machine control, process monitoring, and industrial automation where modular PLC-3 architecture is employed. Part number 1775-A1.
Best Suited For
- PLC-3 modular controller installation
- Retrofit or replacement in legacy PLC-3 systems
- Houses multiple modules including power supply, processor, I/O scanner
- Use in industrial environments requiring slot-based expansion
Slots
6
Current rating
60 A
Rated supply voltage
5 to 15 V DC
Backplane current
1.8 A @ 5 V DC; 50 mA @ ±15 V DC
Operational temperature
-18 °C to 70 °C
Technical Specifications
I/O & Electrical
Rated supply voltage
5 to 15 V DC
Backplane current (5 V)
1.8 A
Backplane current (±15 V)
50 mA
Current rating
60 A
Physical & Environmental
Slots
6
Cooling method
Fan cooling
Operational temperature
-18 °C to 70 °C
