Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

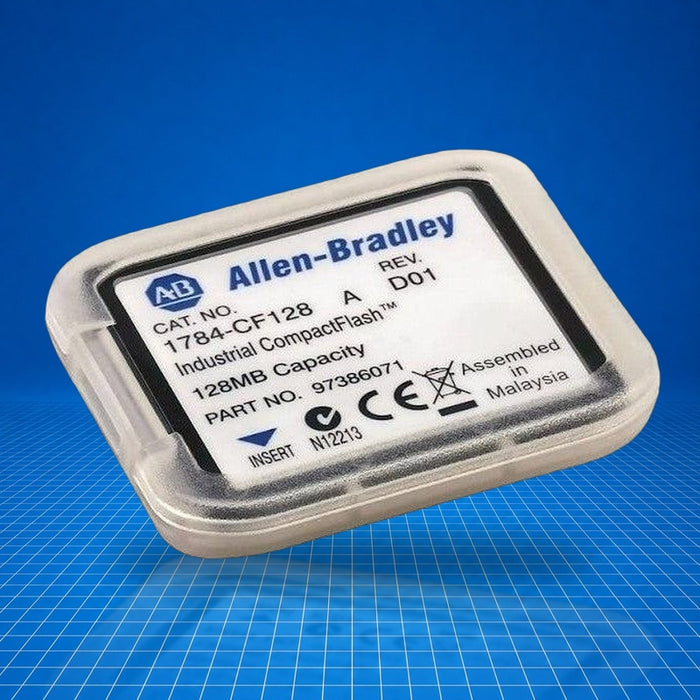

The 1784-CF128 is an Allen-Bradley ControlLogix Industrial CompactFlash memory card offering 128 MB of non-volatile user program and data storage. It is designed for use in ControlLogix 5560 controllers and fits into the memory card socket on the controller. The module stores user programs, tag data, and can be configured for loading from or saving to non-volatile memory at power-up or via programming software, enhancing system reliability and data retention. (Part number: 1784-CF128)
Best Suited For
- Backup of user programs and tag data in ControlLogix 5560 systems
- Nonvolatile storage for automatic program load at power-on
- File management-create, read, write, delete operations in controller
- Checksum verification and error handling in memory operations
Memory capacity
128 MB
Non-volatile
Yes
Supported controllers
ControlLogix 5560
Operating temperature range
0…60 °C (32…140 °F)
Weight
14.2 g (0.50 oz)
Technical Specifications
Physical & Environmental
Operating temperature
0…60 °C (32…140 °F)
Storage temperature
-40…+85 °C (-40…185 °F)
Relative humidity
5…95 % non-condensing
Vibration (operating)
2 g @ 10…500 Hz
Shock (operating)
30 g
Weight
14.2 g (0.50 oz)
