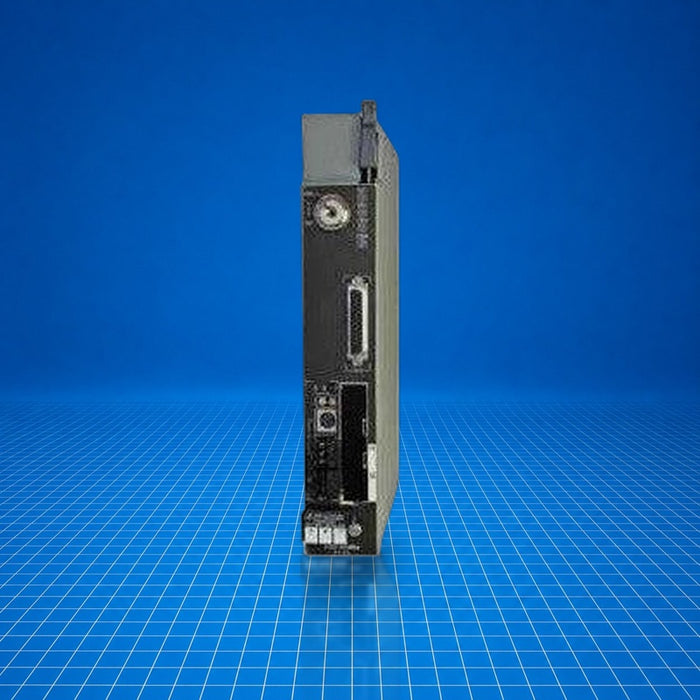

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1785-L30B Allen-Bradley
Original price
$450.00
-
Original price
$1,091.75
Original price
$450.00
$450.00
-
$1,091.75
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1785-L30B is an Allen-Bradley PLC-5/30 standard processor module in the enhanced PLC-5 family. It occupies a single slot in a 1771 I/O chassis and serves as a central control unit in sequential and regulatory control applications. With 32 Kwords of user program memory and support for both local and remote I/O, it is typically applied in mid-sized process control, manufacturing, and distributed I/O installations where legacy PLC-5 architecture is maintained.
Best Suited For
- Mid-sized sequential control applications
- Distributed I/O architectures with remote racks
- Legacy system maintenance or expansions
- Integration with 1771 I/O modules
User Memory
32 Kwords
Max Total I/O
1024
Backplane Current
2.3 A @ 5 V
Power Dissipation
17.3 W
Technical Specifications
I/O & Electrical
Max Total I/O
1024 (any mix) or 1024 in + 1024 out (complementary)
Max Analog I/O
1024
Communication & Power
Backplane Current
2.3 A @ 5 V
Power Dissipation
17.3 W
Physical & Environmental
Operating Temperature
0…60 °C (32…140 °F)
Non-Operating Temperature
-40…85 °C (-40…185 °F)
