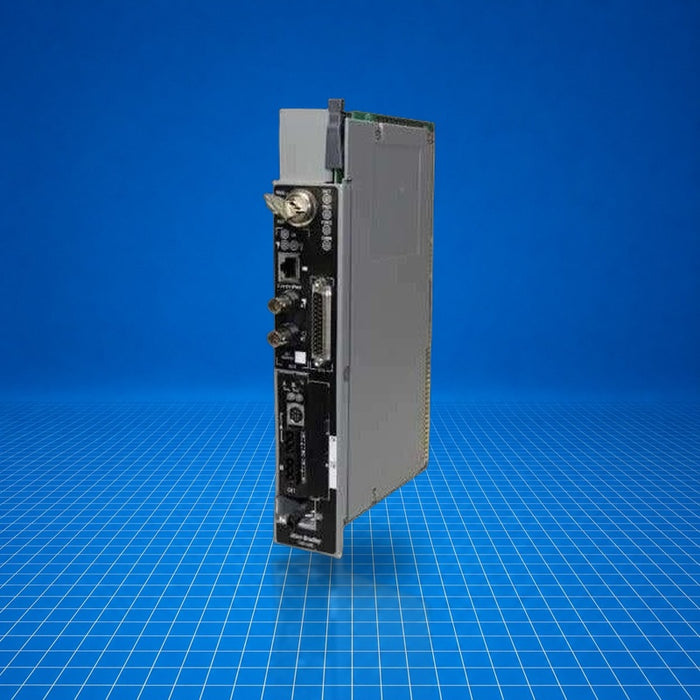

1785-L40C Allen-Bradley
Original price
$687.50
-
Original price
$1,237.50
Original price
$687.50
$687.50
-
$1,237.50
Current price
$687.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1785-L40C is an Allen-Bradley PLC-5 series ControlNet processor. It functions as a microprocessor control module that resides in the left-most slot of a 1771 I/O chassis and manages discrete and analog I/O via ControlNet network communication. The 1785-L40C supports peer-to-peer or scheduled I/O updates in industrial automation systems, typically applied in process control, material handling, or machine automation where ControlNet integration within a PLC-5 legacy system is required. This description refers specifically to part number 1785-L40C.
Best Suited For
- ControlNet-based I/O networks using PLC-5/40C processors
- Integration in existing 1771 chassis control systems
- Legacy automation systems requiring battery-backed SRAM
- Applications with up to 2048 points of I/O in complementary configuration
User memory
48 K words (SRAM, battery-backed)
Max I/O capacity
2048 points (complementary)
Backplane current
3.3 A @ 5 V DC
Heat dissipation
59 BTU/hour
Operating temp.
0-60 °C
Technical Specifications
I/O & Electrical
Max total I/O (complementary)
2048 inputs + 2048 outputs
Max analog I/O (non-forcible)
48 000
Communication & Power
ControlNet port
1 channel, up to 5 Mbps
Serial port
One RS-232/RS-422/RS-423
Backplane current
3.3 A @ 5 V DC
Heat dissipation
59 BTU/hour
Physical & Environmental
Operating temperature
0-60 °C (32-140 °F)
Storage temperature
-40-85 °C (-40-185 °F)
Relative humidity
5-95 % non-condensing
Vibration (operating)
2 g @ 10-500 Hz
Shock (operating)
30 g
Weight
≈ 1.9 kg (4.19 lb)
