1785-L86B Allen-Bradley

Name: 1785-L86B Allen-Bradley
Brand: Allen Bradley
SKU: 1785-L86B
Price: 3014.98 USD
Availability: InStock

$0.00 - $3,014.98

$3,014.98

$0.00 - $3,014.98

$3,014.98

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

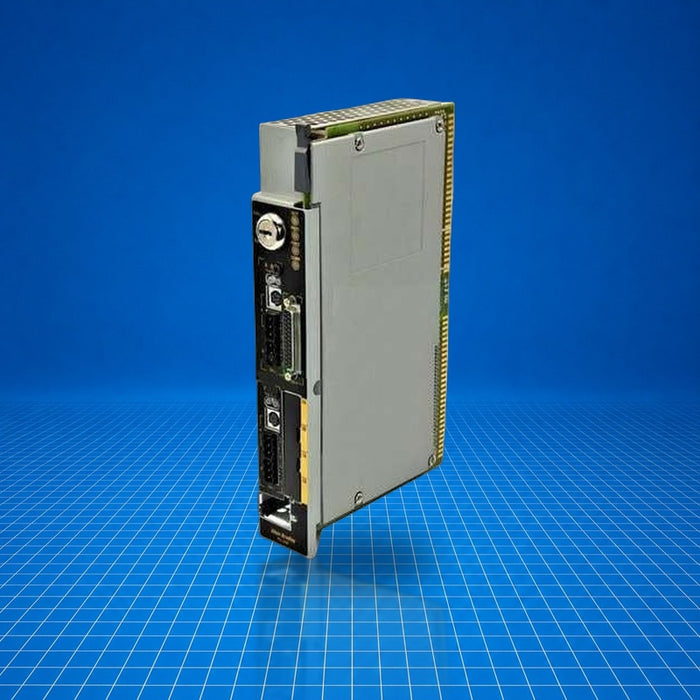

The 1785-L86B is an Allen-Bradley PLC-5/86 standard processor module in the PLC-5 family. Installed in a single 1771 I/O chassis slot, it delivers up to 100 kilowords of user memory with protected, battery-backed static RAM and optional EEPROM backup. It supports up to 3,072 I/O points (analog or digital) and includes communication capabilities such as a serial port and a coprocessor expansion port. It is typically used for mid-range industrial control tasks including process control, batch sequencing, or managing analog/digital signals in manufacturing or infrastructure systems. (Part number 1785-L86B)

Best Suited For

Mid-sized process control systems
Analog/digital I/O-dense applications
Legacy PLC-5 system upgrades or replacements
Protected-memory applications requiring battery/EERPOM backup

User memory

100 kilowords

Maximum I/O capacity

3,072 points

Backplane current

3.3 A @ 5 V

Protected memory

Yes (battery-backed SRAM, EEPROM options)

I/O scan time per rack

10 ms @57.6 kbit/s; 7 ms @115.2 kbit/s; 3 ms @230.4 kbit/s

Technical Specifications

I/O & Electrical

Maximum total I/O

3072 (any mix) or 3072 in + 3072 out (complementary)

I/O scan time per rack

10 ms @57.6 kbit/s; 7 ms @115.2 kbit/s; 3 ms @230.4 kbit/s

Backplane current load

3.3 A (at 5 V)

Communication & Power

User memory

100 kilowords

Battery-backed static RAM

Yes

EEPROM program backup option

Yes (via 1785-ME16, ME32, ME64, M100)

Control coprocessor expansion port

Yes

Serial port (RS-232/422/423)

1 port

Physical & Environmental

Module weight

1 lbs (0.45 kg)

Certifications

UL Listed (Series E)DNV-GL certified

1-Year Warranty

Every tested unit is backed by our free 1-year PLC Department warranty, direct from us.

Fast Shipping

Free ground shipping. Orders by 1 PM CST ship same-day, with overnight available.

USA Stock

Sourced and shipped from Texas, USA. Never anonymous overseas marketplace stock.

30-Day Returns

Hassle-free RMA. If the part is not right for your application, send it back within 30 days.

Reseller Options →

Resellers welcome. Reach out for volume pricing and we will get you set up.

Talk to a Real Person

Fast answers on stock, revisions, and shipping. (833) 800-7748 or live chat.
