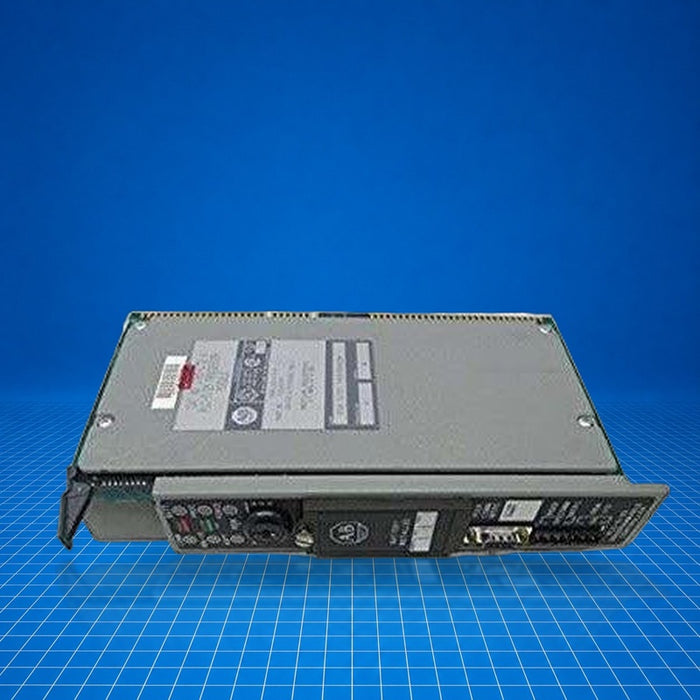

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1785-LT2 Allen-Bradley
Original price
$450.00
-
Original price
$2,204.98
Original price
$450.00
$450.00
-
$2,204.98
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1785-LT2 is a Classic PLC-5/25 processor module in the Allen-Bradley PLC-5 family. It executes control logic, interfaces with remote and local I/O racks, and connects via Data Highway Plus and Remote I/O channels. Designed for discrete logic and analog I/O in mid-to-large industrial systems, it is applied in manufacturing lines, batch processing, and infrastructure controls. 1785-LT2 provides expandable memory and supports redundancy for high-availability systems.
Best Suited For
- PLC-5 based control systems requiring mixed discrete and analog I/O
- Upgrade or replacement in existing PLC-5/25 installations
- Applications needing remote chassis connection via DH+ and Remote I/O
- Systems requiring memory expansion or controller redundancy
Memory (std/expandable)
13 K-Words / up to 17 or 21 K-Words
Max total I/O
3 072 (any mix) or 3 072 in + 3 072 out
Ports
Data Highway Plus; Remote I/O
Program scan time
2 ms discrete logic; ~8 ms typical
Operating temp
0-60 °C (32-140 °F)
Technical Specifications
I/O & Electrical
Max total I/O (any combination)
3 072
Max input/output (complementary)
3 072 in + 3 072 out
Analog I/O
1 024
Communication & Power
Communication ports
Data Highway Plus; Remote I/O
I/O scan time per rack
10 ms @ 57.6 kbps; 7 ms @ 115.2 kbps; 3 ms @ 230.4 kbps
Program scan time
2 ms for discrete logic; ~8 ms typical
Physical & Environmental
Weight
3.19 lbs (1.45 kg)
Operating temperature
0-60 °C (32-140 °F)
Storage temperature
-40-85 °C (-40-185 °F)
Relative humidity
5-95% (without condensation)
Operating shock
30 g (3 pulses, 11 ms)
Non-operating shock
50 g (3 pulses, 11 ms)
Altitude
Up to 2 000 m without derating
