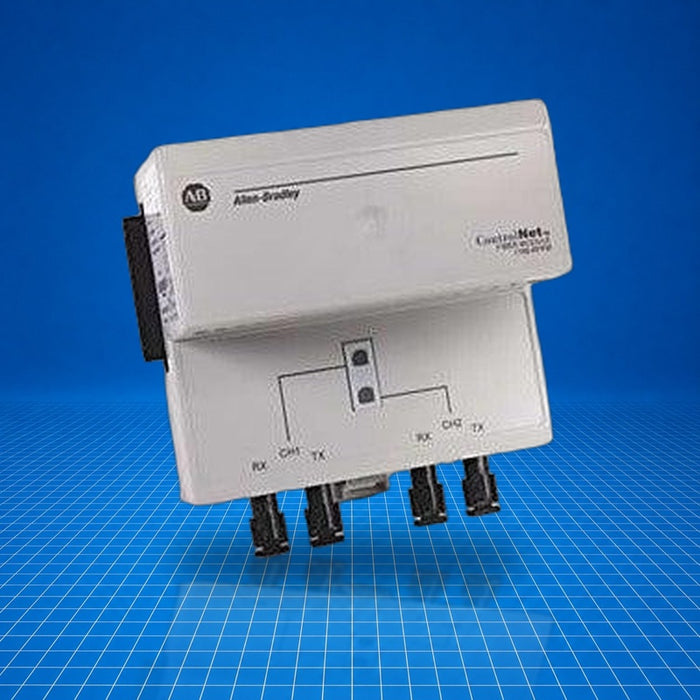

1786-RPFM Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1786-RPFM Allen-Bradley

$420.00 - $700.00
$420.00
$420.00 - $700.00
$420.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$420.00
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$700.00
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1786-RPFM is an Allen-Bradley ControlNet Medium-Distance Fiber Repeater Module designed for ControlNet networks. It functions as a modular repeater that converts ControlNet coaxial segments to fiber optic media, extending communication up to approximately 3 km. It installs via the 1786-RPA repeater adapter and supports star, ring, trunk, point-to-point, and linear topologies, enhancing immunity to EMI and enabling installation in electrically noisy or hazardous locations. Classified as IP20, it supports panel or DIN-rail mounting. Part number 1786-RPFM is discontinued as of December 30, 2025.

Best Suited For

  • Extending ControlNet segments beyond coaxial limits
  • Environments with high electromagnetic interference
  • Installation in hazardous or noisy areas requiring fiber isolation
  • Implementations using star, ring, or point-to-point ControlNet topologies
  • Medium-distance fiber backbone segments (~0-3 km)
Media type
62.5/125 µm OM-1 multimode fiber
Max segment length
~3 km (9843 ft)
Input power
5 V DC, ≤400 mA from backplane
Topology support
Star, Ring, Linear, Point-to-Point

Technical Specifications

I/O & Electrical

Input power
5 V DC
Backplane current draw
400 mA @ 5 V DC (max)
Power consumption
2 W (max)

Communication & Power

Communication rate
5 Mbps
Tx power (min)
-16 dBm into 62.5/125 µm OM-1 (25 °C); -19.5 dBm into 50/125 µm (25 °C)
Rx responsivity (min)
32.8 dBm (25 °C)
Fiber wavelength
1300 nm
Attenuation
13.3 dB (max)

Physical & Environmental

Mounting
Panel or DIN-rail, horizontal or vertical
Weight
0.63 lbs (0.28 kg)
Operating temperature
0-60 °C (32-140 °F)
Enclosure rating
IP20

Certifications

UL ListedIECEx Ex nA IIC T5 Gc

Discontinued December 30, 2025. Certified for UL safety (UL 61010-1 / 61010-2-201), and IECEx hazardous location rating Ex nA op is IIC T5 Gc, Ta 0 °C to +69 °C.
