1790-T0V16X Allen-Bradley

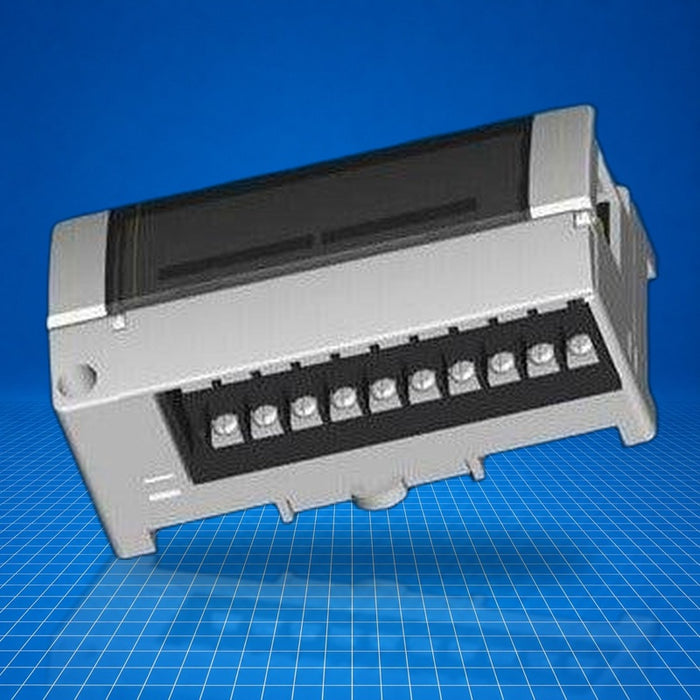

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1790-T0V16X Allen-Bradley

$0.00 - $897.68
$897.68
$0.00 - $897.68
$897.68
Surplus - Tested (With Warranty)
Need a Specific Revision?
$897.68
4 in stock
New / Open-Box Surplus
Get Pricing ~5 mins
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1790-T0V16X is an Allen-Bradley CompactBlock LDX 16-point sinking output expansion block, part of the 1790D CompactBlock LDX I/O family. It interfaces via DeviceNet to augment a CompactBlock base module in distributed I/O systems with 16 additional sinking digital outputs. Typically deployed in light industrial applications, it expands discrete output capacity in machine logic, conveyor control, packaging systems, or skid-mounted automation assemblies. The 1790-T0V16X is mounted adjacent to a compatible base block and completes the I/O node functionality.

Best Suited For

  • Extending 24 V DC sinking outputs on CompactBlock LDX DeviceNet nodes
  • Machine-level discrete control where additional outputs are required
  • Conveyor or packaging system output expansions
  • Skid-mounted automation requiring modular I/O growth
Points
16 sinking outputs
Supply voltage
10 - 28.8 V DC
Output current per channel
0.5 A max
Isolation
Photocoupler isolation (I/O to logic)

Technical Specifications

I/O & Electrical

Supply voltage range
10 - 28.8 V DC
Nominal supply voltage
24 V DC
Output current rating
0.5 A per output, 4.0 A per common
On-state voltage drop
≤ 0.5 V DC
On-state voltage
10 V min, 24 V nominal, 28.8 V max
Off-state leakage current
≤ 0.5 mA
Isolation voltage
1250 V AC rms I/O to logic

Communication & Power

Network interface
DeviceNet via base block
Field power dissipation
6 mA @ 28.8 V DC per point

Physical & Environmental

Mounting type
Expansion block adjacent to base CompactBlock LDX module
Wiring
Terminal block (M3.0 screw, torque ≤ 7 in-lb)

Certifications

cULus Class I Div 2CEC-TickODVA

cULus Class I Div 2 Hazardous; CE Marked; C-Tick; ODVA; Enclosure rating IP20 (when product marked)
