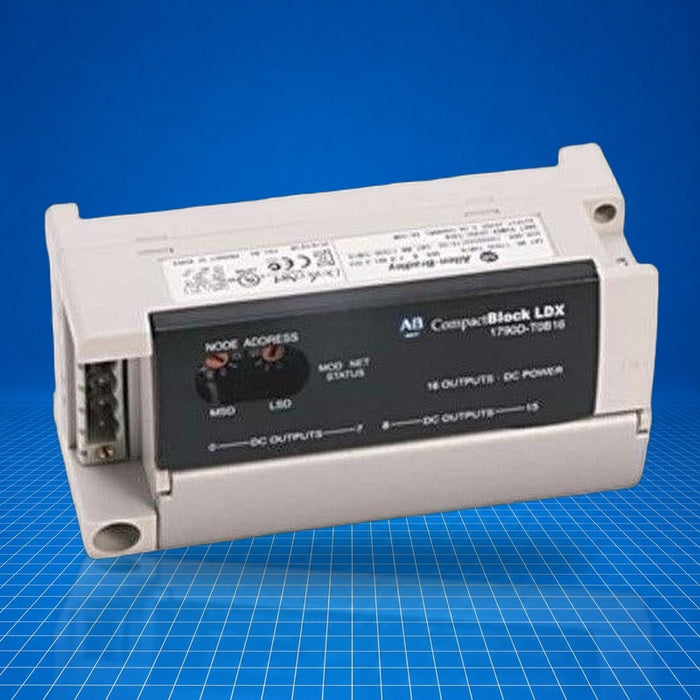

1790D-T8BV8V Allen-Bradley
Original price
$500.00
-
Original price
$719.72
Original price
$719.72
$500.00
-
$719.72
Current price
$719.72
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1790D-T8BV8V is an Allen-Bradley CompactBlock LDX I/O DeviceNet input/output base terminal block combining eight universal sinking or sourcing inputs and eight sinking outputs. It functions as an expansion module within CompactBlock LDX distributed I/O systems, interfacing via DeviceNet. It is typically deployed in industrial settings such as machine control panels, material handling systems, and modular automation architectures for discrete signal processing. The 1790D-T8BV8V is designed to supplement a base I/O station when additional I/O capacity is required.
Best Suited For
- DeviceNet-based distributed I/O expansion
- Mixed input/output discrete signal integration
- On-machine installation near actuator/sensor clusters
- Modular control systems with compact footprint
Universal inputs
8 sinking or sourcing
Sinking outputs
8
Field power dissipation
3.22 W @ 28.8 V DC
Output current limit
0.5 A per channel, 4.0 A per common
Technical Specifications
I/O & Electrical
Inputs per base block
8 non-isolated
Input type
Sinking or sourcing
Input on-state voltage
9.6 V DC min, 24 V DC nominal, 28.8 V DC max
Input off-state voltage (max)
5.0 V DC
Input on-state current
8 mA max per channel @ 28.8 V DC
Input impedance (nominal)
4.8 kΩ
Outputs per base block
8 sinking
Output on-state voltage
10 V DC min, 24 V DC nominal, 28.8 V DC max
Output on-state voltage drop
0.5 V DC max
Output on-state current
0.5 A max per channel
Output off-state leakage
0.5 mA max
Signal delay, off→on
0.5 ms max
Signal delay, on→off
1.0 ms max
Field power dissipation
3.22 W @ 28.8 V DC
Isolation voltage
50 V DC (continuous), reinforced insulation, 1250 V AC for 60 s I/O to system
