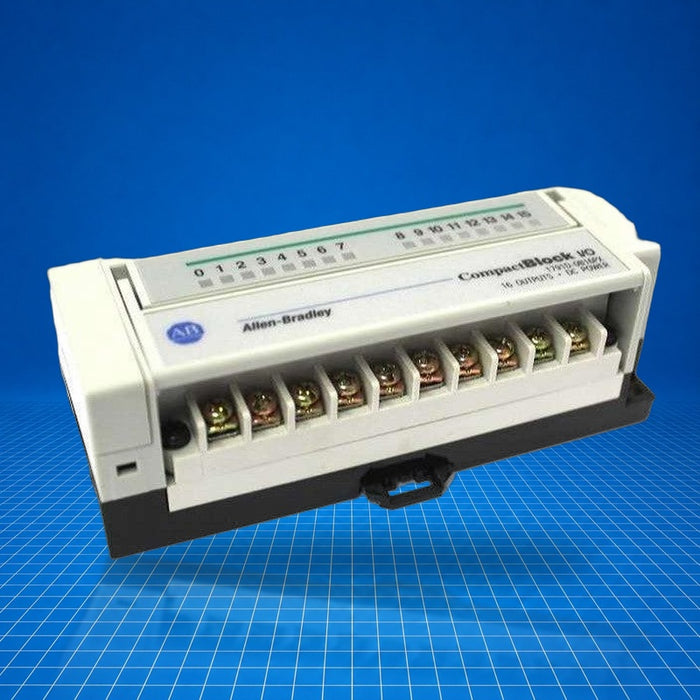

1791D-0B16PX Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1791D-0B16PX Allen-Bradley

$459.96 - $1,182.47
$459.96
$459.96 - $1,182.47
$459.96
Surplus - Tested (With Warranty)
Need a Specific Revision?
$459.96
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$1,182.47
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1791D-0B16PX from Allen-Bradley is a CompactBlock I/O expansion module designed for PROFIBUS DP or DeviceNet systems. It serves as a 16-point sourcing output block and pairs with base I/O modules in distributed control architectures. Primarily used to extend output capacity in CompactBlock I/O setups, the 1791D-0B16PX is installed on DIN rail and interfaces with controllers via fieldbus networks. Typical applications include machine-level actuator control, modular production cells, and remotely located output stations in manufacturing or process automation.

Best Suited For

  • Expanding CompactBlock Remote I/O systems
  • PROFIBUS DP or DeviceNet distributed output requirements
  • DIN-rail mounted machine I/O extension
  • Actuator signal distribution on modular equipment
Outputs per Block
2 groups of 8
Output voltage range
10-30 V DC
Max output current per channel
0.5 A
Module current (all outputs)
4.0 A max

Technical Specifications

I/O & Electrical

Outputs per Block
2 groups of 8
On-state voltage range
10-30 V DC
On-state voltage drop
0.5 V DC @ rated current
On-state current (per output)
0.5 A maximum
Off-state leakage
1.0 mA maximum
Module current (all outputs)
4.0 A maximum
Surge current (10 ms, repeatable every 2 s)
1.0 A maximum

Communication & Power

Auxiliary power voltage
10-30 V DC
Auxiliary power current
4 A maximum
Expansion power voltage
5 V DC
Expansion power current
100 mA
Isolation (I/O to DeviceNet / I/O group-to-group / I/O to logic)
500 V AC

Physical & Environmental

Operating temperature
0 to 60 °C (32 to 140 °F)
Non-operating temperature
-40 to 85 °C (-40 to 185 °F)
Relative humidity
5-95 % non-condensing
Operating shock
30 g
Non-operating shock
50 g tested
Vibration
5 g @ 10-500 Hz per IEC 68-2-6
Dimensions
113 mm × 48 mm × 38 mm (4.4 in × 1.9 in × 1.5 in)
Mounting
DIN-rail only

Certifications

UL ListedC-ULCE
