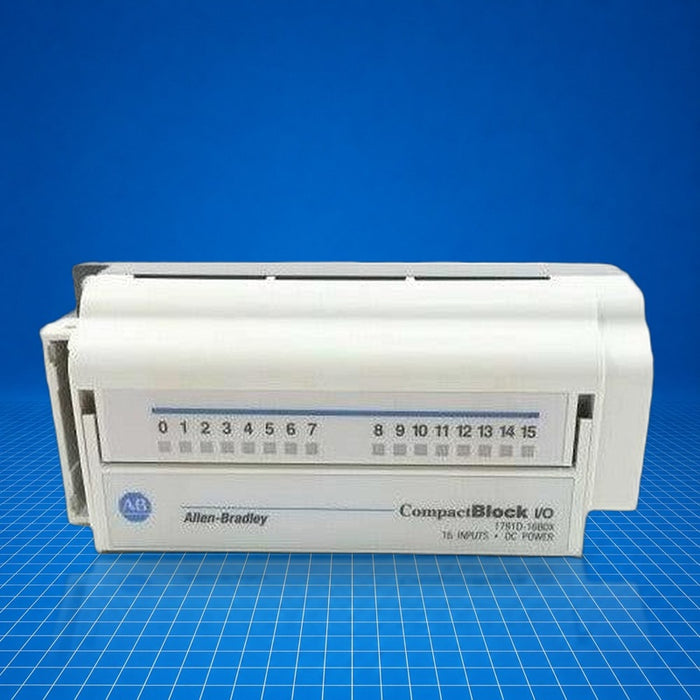

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1791D-16B0X Allen-Bradley
Original price
$419.96
-
Original price
$865.87
Original price
$419.96
$419.96
-
$865.87
Current price
$419.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1791D-16B0X is a CompactBlock I/O expansion module providing sixteen sinking discrete inputs via DeviceNet. It extends the I/O capacity of CompactBlock stations and integrates into DeviceNet control networks. Typical use includes distributed input expansion in cabinet-mounted automation systems controlled by PLC-2, PLC-3, PLC-5, SLC-500 or SoftLogix scanners. 1791D-16B0X supports modular expansion up to 32 points.
Best Suited For
- DeviceNet-based distributed I/O expansion
- Cabinet-mounted control systems
- Integration with PLC-2, PLC-3, PLC-5, SLC-500, SoftLogix
- Applications requiring sinking discrete input groups
Inputs
16 sinking inputs
Input voltage range
10-30 V DC
Expansion power
5 V DC, 100 mA
Network
DeviceNet
Technical Specifications
I/O & Electrical
Input voltage (on-state)
10 V DC min to 30 V DC max @40 °C; 24 V DC @ 60 °C
Off-state voltage
≤ 5 V DC
On-state current
2 mA min (at 10 V DC); 11 mA max (at 30 V DC)
Off-state current
≤ 1.5 mA @ 5 V DC
I/O isolation
500 V AC (I/O to DeviceNet, group-to-group, group-to-logic)
Communication & Power
Network communication rates
Thick cable: 125 kbps @ 500 m, 250 kbps @ 200 m, 500 kbps @ 100 m; Flat media: 125 kbps @ 420 m, 250 kbps @ 200 m, 500 kbps @ 75 m
Expansion power
5 V DC, 100 mA
Physical & Environmental
Dimensions
113 × 48 × 38 mm (4.4 × 1.9 × 1.5 in)
Weight
0.56 lbs (0.26 kg)
Operating temperature
0 to 60 °C (32-140 °F)
Non-operating temperature
-40 to 85 °C (-40-185 °F)
Relative humidity
5-95 % non-condensing
Shock
Operating: 30 g; Non-operating: 50 g tested
Vibration
5 g @ 10-500 Hz per IEC 68-2-6
Mounting
DIN-rail only
Enclosure rating
IEC IP20
Wire size
14 AWG (2 mm²) stranded, max 3/64 in insulation
Certifications
UL ListedUL Class I, Division 2C-ULCE
UL Listed; UL Hazardous (Class I, Division 2, Groups A, B, C, D); C-UL; C-UL Hazardous (Class I, Division 2, Groups A, B, C, D); CE marked.
