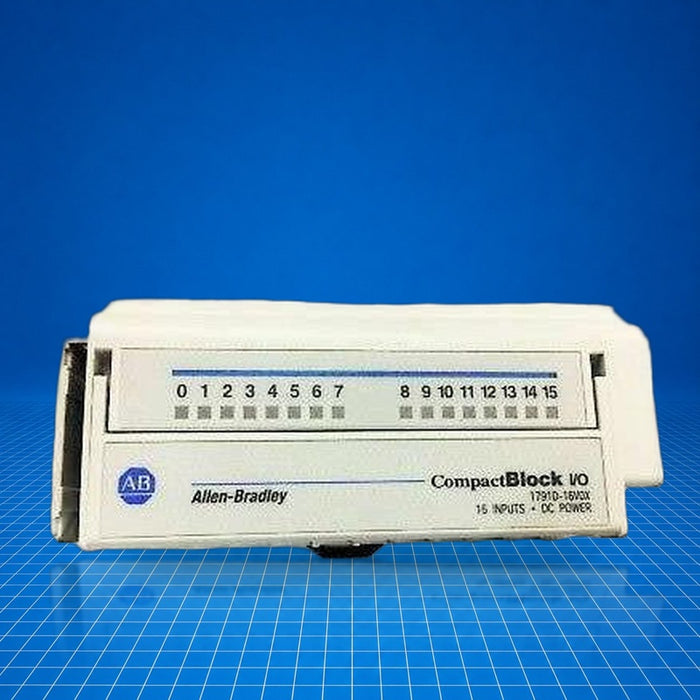

1791D-16V0X Allen-Bradley
Original price
$628.00
-
Original price
$716.00
Original price
$716.00
$628.00
-
$716.00
Current price
$716.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1791D-16V0X is a CompactBlock I/O module serving as a 16-point sourcing input base with integral DeviceNet adapter and local power supply. It interfaces with Remote I/O for distributed sensing in DeviceNet networks, enabling modular input expansion in control systems. Used in machine-level sensing applications such as proximity and limit switch signal collection, the 1791D-16V0X integrates into PLC, SLC, or SoftLogix architectures for localized digital input consolidation. 1791D-16V0X supports one expansion module and supports DeviceNet I/O communications.
Best Suited For
- Machine-level discrete input collection
- DeviceNet distributed I/O networks
- CompactBlock I/O expansion systems
- Environments with limited enclosure space
Input points
16 sourcing inputs
DeviceNet I/O usage
Produces 2 input bytes (no outputs)
Expansion support
Supports 1 I/O expansion module
Input voltage range
10 V DC min., 30 V DC @ 40 °C
Technical Specifications
I/O & Electrical
Input type
Sourcing
Inputs per block
16
Off-state voltage (max)
5 V DC
On-state voltage range
10 V DC min.; 30 V DC @ 40 °C
Off-state current (max)
1.5 mA @ 5 V DC
On-state current (max)
11 mA @ 30 V DC
Communication & Power
Network interface
DeviceNet
I/O produced
2 input bytes (module alone)
