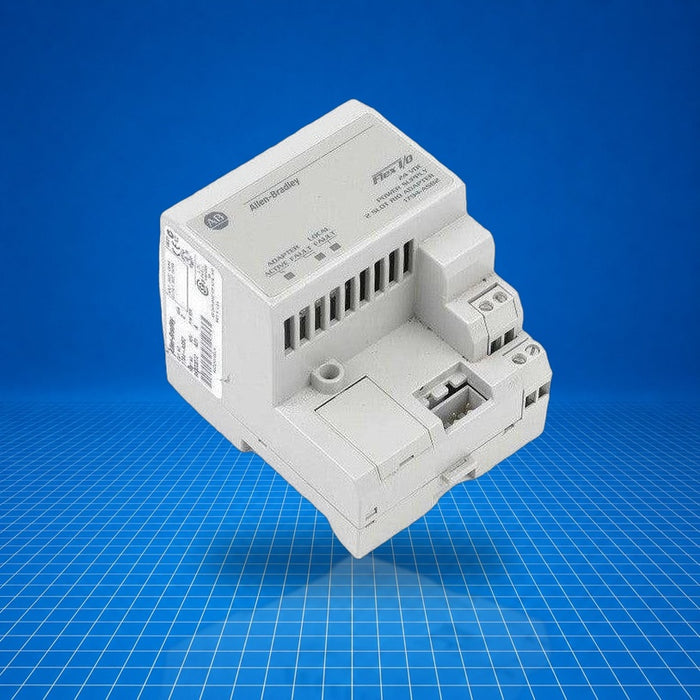

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1794-ASB2 Allen-Bradley
Original price
$439.96
-
Original price
$1,499.98
Original price
$439.96
$439.96
-
$1,499.98
Current price
$439.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1794-ASB2 is a Remote I/O adapter in the Allen-Bradley Flex I/O 1794 series. It provides a two-module capacity interface between Flex I/O modules and a Universal Remote I/O link. It integrates a built-in 24 V DC power supply to support communication and backplane I/O modules. Commonly used in distributed I/O applications where minimal module counts and legacy RIO communication (57.6/115.2/230.4 kbps) are required.
Best Suited For
- Distributed I/O with Remote I/O (RIO) legacy systems
- Compact two-module Flex I/O racks
- Applications requiring adjustable RIO baud rates
- Environments with -20 °C to 55 °C temperature range
Module capacity
2 modules
Input voltage range
19.2-31.2 V DC
FlexBus current (max)
640 mA
Communication speed
57.6/115.2/230.4 kbps
Operating temp range
-20 to 55 °C
Technical Specifications
I/O & Electrical
Input voltage range
19.2-31.2 V DC
Nominal input voltage
24 V DC
FlexBus output current
640 mA max
Power consumption
4.2 W
24 V load (current)
175 mA
Power dissipation (max)
3.4 W @ 19.2 V DC
Communication & Power
Communication speed
57.6/115.2/230.4 kbps
Isolation voltage
50 V continuous
ESD protection
8 kV Air Discharge
RF immunity
10 V/m
EFT/Surge immunity
±2 kV
Physical & Environmental
Operating temperature
-20…55 °C
Storage temperature
-40…85 °C
Relative humidity
5…95% non-condensing
Shock (operating)
30 g, 11 ms pulse
Vibration
5 g @ 10-500 Hz
