1794-IA8 Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1794-IA8 Allen-Bradley

$415.96 - $450.00
$415.96
$415.96 - $450.00
$415.96
Surplus - Tested (With Warranty)
Need a Specific Revision?
$415.96
3 in stock
New / Open-Box Surplus
Need a Specific Revision?
$450.00
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

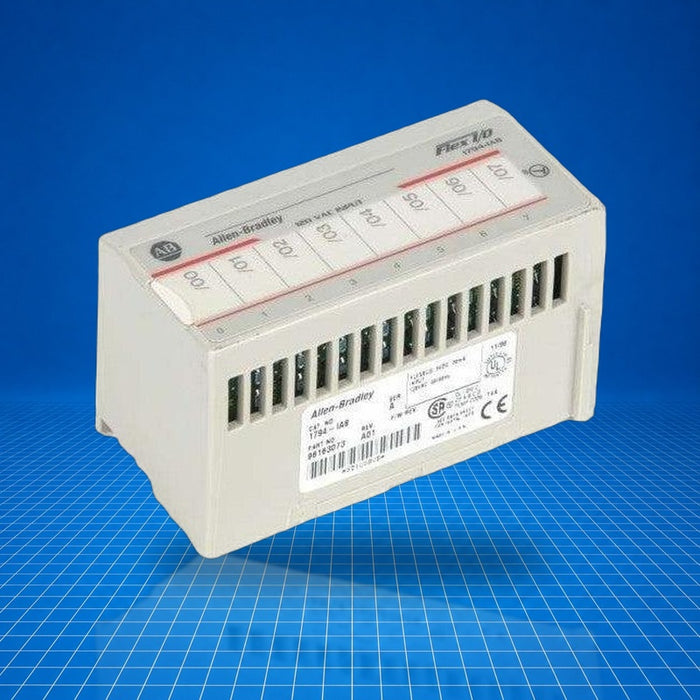

The 1794-IA8 is an Allen-Bradley Flex I/O digital input module designed for 120 V AC field inputs. With eight non-isolated sinking inputs, it integrates into the 1794 Flex I/O system, providing distributed digital input capability for control systems. In a typical installation, the 1794-IA8 mounts on a terminal base alongside an adapter module and communicates over FlexBus, enabling detection of machine states, limit switches, or proximity sensors in process or discrete automation applications.

Best Suited For

  • Distributed 120 V AC sensing in Flex I/O systems
  • Monitoring proximity or push-button inputs in machine controls
  • Applications using standard 120 V AC control power
  • Quick replacement in modular I/O racks
Inputs
8 non-isolated sinking
Field input voltage
65…132 V AC
FlexBus supply current
30 mA @ 5 V DC
Power dissipation, max
4.5 W @ 132 V AC
Operating temp.
0…55 °C (32…131 °F)

Technical Specifications

I/O & Electrical

Number of inputs
8 non-isolated
Field input voltage range
65…132 V AC
On-state current, min
7.1 mA
On-state current, max
14.32 mA
Off-state voltage, max
43 V AC
Off-state current, min
2.9 mA
Input impedance (nominal)
10.6 kΩ
Isolation voltage (field-to-system)
120 V (basic), tested @ 1250 V AC for 60 s
FlexBus current
30 mA @ 5 V DC

Communication & Power

Power dissipation, max
4.5 W @ 132 V AC
Thermal dissipation, max
15.3 BTU/hr @ 132 V AC
On-state voltage (nominal)
120 V AC

Physical & Environmental

Dimensions (H × W × D)
94 × 94 × 69 mm (3.7 × 3.7 × 2.7 in.)
Operating temperature
0…55 °C (32…131 °F)
Status indicators
8 yellow LEDs

Certifications

Certified as of April 29, 2026 with Australian RCM, Registro Italiano Navale, American Bureau of Shipping, MOROCCO DOC, UKCA DOC, United Kingdom Safety Certificate.
