1794-IB10XOB6 Allen-Bradley
Original price
$450.00
-
Original price
$464.64
Original price
$464.64
$450.00
-
$464.64
Current price
$464.64
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

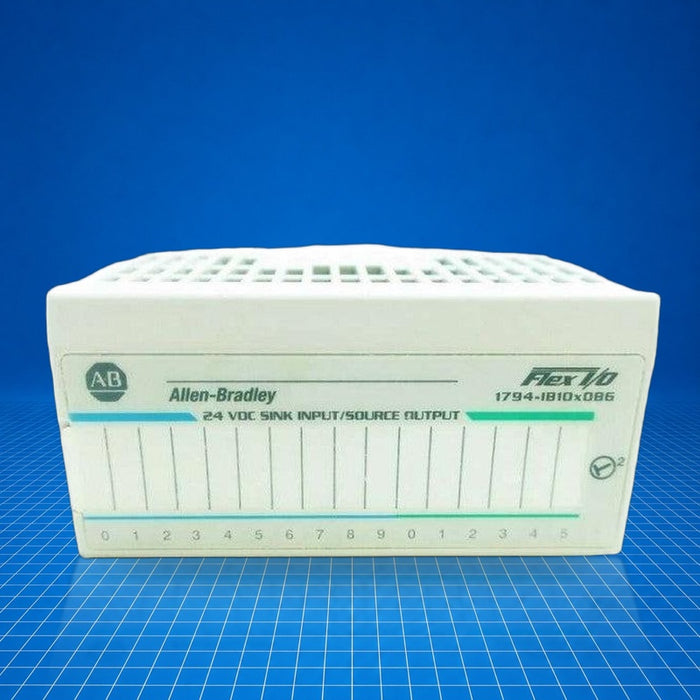

The 1794-IB10XOB6 is a Flex I/O digital combination module from Allen-Bradley. It provides ten sinking DC inputs and six sourcing DC outputs within the Flex, Flex Ex, or Flex XT I/O system. It interfaces discrete field devices with a programmable controller. Common applications include machine-level sensing and actuation, localized signal consolidation, and modular I/O expansion in industrial automation systems.
Best Suited For
- Flex I/O modular expansion
- Localized machine-level discrete I/O
- 24 V DC sensing and actuation integration
- Modular control panel installations
Inputs / Outputs
10 in / 6 out
Input type
sinking (DC)
Output type
sourcing (DC)
Power dissipation
6.0 W @ 31.2 V DC
Technical Specifications
I/O & Electrical
Number of inputs
10
Number of outputs
6
Input voltage (on-state)
10 V DC (min), 24 V DC (nom), 31.2 V DC (max)
Input current (on-state)
2.0 mA (min), 8.0 mA @ 24 V DC (nom), 11.0 mA (max)
Input voltage (off-state)
≤ 5 V DC
Input current (off-state)
≤ 1.5 mA
Power dissipation
6.0 W @ 31.2 V DC
Thermal dissipation
20.3 BTU/hr @ 31.2 V DC
Isolation voltage
50 V continuous (basic), tested 1250 V AC / 60 s
Communication & Power
Power supply
External DC 10…31.2 V DC (includes 5 % AC ripple)
Supply current
8 mA @ 10 V DC; 15 mA @ 19.2 V DC; 19 mA @ 24 V DC; 25 mA @ 31.2 V DC
Physical & Environmental
Operating temperature
-20…+55 °C (-4…+131 °F)
Storage temperature
-40…+85 °C (-40…+185 °F)
Relative humidity
5…95 % non-condensing
Vibration (operating)
5 g @ 10…500 Hz
Shock
Operating 30 g; Non-operating 50 g
Emissions standard
IEC 61000-6-4
ESD immunity
IEC 61000-4-2: 6 kV contact, 8 kV air
Radiated RF immunity
IEC 61000-4-3: 10 V/m, 80 MHz-6 GHz
EFT/B immunity
IEC 61000-4-4: ±3 kV power, ±2 kV signal
Surge immunity
IEC 61000-4-5: ±1 kV DM, ±2 kV CM on signal
Conducted RF immunity
IEC 61000-4-6: 10 V rms, 150 kHz-80 MHz
Dimensions (H×W×D)
94 × 94 × 69 mm (3.7 × 3.7 × 2.7 in.)
Weight
85 g (3.00 oz)
Enclosure
Open-style (requires terminal base)
Certifications
UL ListedCSA ListedCEATEXIECExChina CCCKorean KCUKCARCM
Certifications include UL Listed, CSA Listed, CE, ATEX, IECEx Scheme, China CCC, Korean KC, UKCA, RCM and others.
