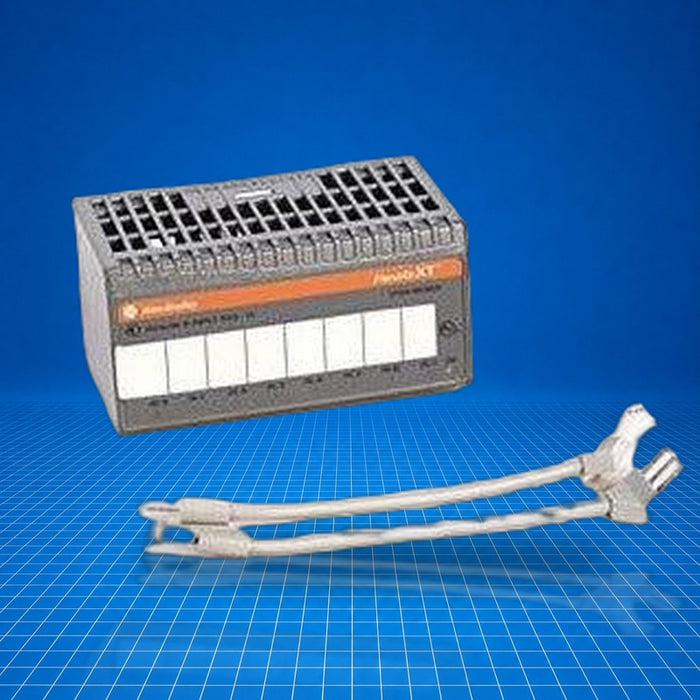

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1794-IB10XOB6XT Allen-Bradley
Original price
$0.00
-
Original price
$1,697.50
Original price
$1,697.50
$0.00
-
$1,697.50
Current price
$1,697.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1794-IB10XOB6XT is a Flex I/O-XT combination digital module providing 10 sinking inputs and 6 sourcing outputs for 24 V DC control systems. It integrates into the 1794 Flex I/O family and attaches to a terminal base for field device interfacing. Typical use cases include mid-tier control racks, distributed machine I/O, and modular safety or discrete control applications where mixed I/O density is required. 1794-IB10XOB6XT delivers both input monitoring and high-current output switching in a single, compact module.
Best Suited For
- Mixed digital input/output applications in Flex XT I/O racks
- Distributed machine-level I/O installations
- Applications requiring 2 A sourcing per output
- Environments needing extended operating temperature to 70 °C
Inputs (sinking)
10
Outputs (sourcing)
6
Output current per channel
2.0 A
Operating temperature range
-20…70 °C
Flexbus current
50 mA
Technical Specifications
I/O & Electrical
Number of inputs
10 sinking, non-isolated
On-state input voltage range
10…31.2 V DC
Nominal input current
8.0 mA @ 24 V DC
Off-state input voltage, max
5.0 V DC
Input impedance
4.8 kΩ
Number of outputs
6 sourcing, non-isolated
On-state output voltage range
10…31.2 V DC
Output current per channel, max
2.0 A
Module output current, max
10 A
On-state voltage drop, max
1.0 V DC @ 2 A / 0.5 V DC @ 1 A
Off-state leakage current, max
0.5 mA
Surge output current
4.0 A for 50 ms, repeatable every 2 s
Communication & Power
External DC supply voltage range
10…31.2 V DC (includes 5 % AC ripple)
External DC supply current
8 mA @ 10 V / 15 mA @ 19.2 V / 19 mA @ 24 V / 25 mA @ 31.2 V
Flexbus current
50 mA
Physical & Environmental
Operating temperature
-20…70 °C (-4…158 °F)
Power dissipation, max
6.0 W @ 31.2 V DC
Thermal dissipation, max
20.3 BTU/hr @ 31.2 V DC
Isolation voltage
50 V continuous; tested at 1365 V AC for 60 s (field-to-system)
Indicators
6 yellow status indicators (logic-driven)
Fusing
Module outputs are not fused; external fusing recommended
Certifications
UL ListedCEATEXIECEx
