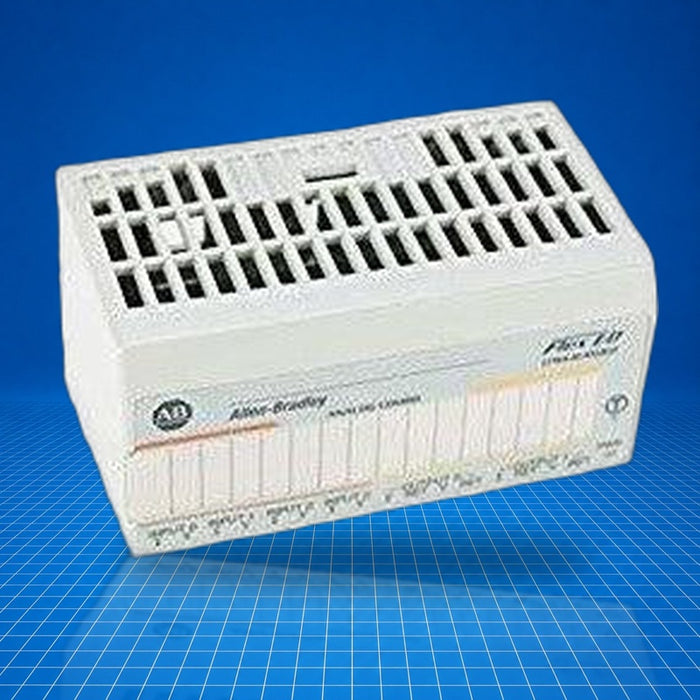

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1794-IE4XOE2 Allen-Bradley

Name: 1794-IE4XOE2 Allen-Bradley
Brand: Allen Bradley
SKU: 1794-IE4XOE2
Price: 463.96 USD
Availability: InStock

$463.96 - $700.00

$463.96

$463.96 - $700.00

$463.96

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1794-IE4XOE2 is an Allen-Bradley 1794 Flex I/O analog combination module offering four single-ended inputs and two single-ended outputs. It integrates into the Flex, Flex Ex, or Flex XT I/O platform to provide mixed analog I/O capabilities. In control systems it serves to acquire analog signals (voltage or current) and to issue analog output signals to control actuators. Typical industrial applications include process control, analog signal interfacing in distributed I/O systems, and remote monitoring or output tasks within modular automation architectures.

Best Suited For

Flex I/O mixed analog input/output applications
Integration into Flex, Flex Ex, Flex XT I/O systems
Analog signal acquisition (±10 V or 4-20 mA)
Analog output control (±10 V or 4-20 mA)

Analog Inputs

4 single-ended

Analog Outputs

2 single-ended

Input resolution

12 bits unipolar / 11-bit bipolar

Power dissipation

4.0 W @ 24 V DC

Technical Specifications

I/O & Electrical

Number of inputs

4 single-ended, non-isolated

Number of outputs

2 single-ended, non-isolated

Input current terminal

4-20 mA or 0-20 mA user configurable

Input voltage terminal

±10 V or 0-10 V user configurable

Output current terminal

4-20 mA or 0-20 mA user configurable

Output voltage terminal

±10 V or 0-10 V user configurable

Isolation voltage (field/system)

50 V continuous (tested at 850 V AC 60 s)

Communication & Power

Power supply

24 V DC

Power dissipation, max

4.0 W @ 24 V DC

Thermal dissipation

13.6 BTU/hr @ 24 V DC

Physical & Environmental

Dimensions (HxWxD)

46 × 94 × 53 mm (1.8 × 3.7 × 2.7 in.)

Temperature rating

0…55 °C (32…131 °F)

Certifications

Australian RCMChina CCCATEXIECExUKCA

Certifications include Australian RCM, China CCC, ATEX, Registro Italiano Navale, American Bureau of Shipping, IECEx Scheme, UK EX Certificate, United Kingdom Safety Certificate, Morocco DOC, UKCA DOC as per manufacturer's listing.
