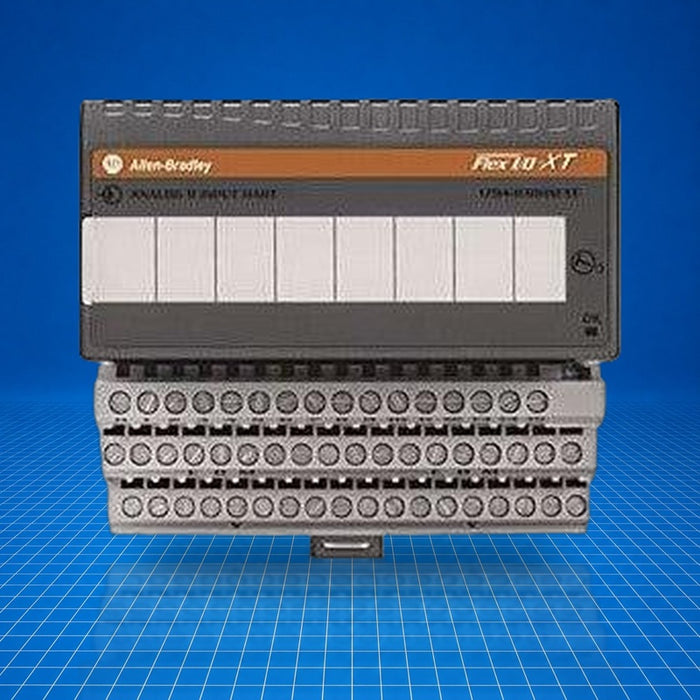

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1794-IJ2XT Allen-Bradley

Name: 1794-IJ2XT Allen-Bradley
Brand: Allen Bradley
SKU: 1794-IJ2XT
Price: 2080.05 USD
Availability: InStock

$2,080.05 - $2,745.00

$2,080.05

$2,080.05 - $2,745.00

$2,080.05

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1794-IJ2XT is an Allen-Bradley Flex I/O-XT 2-point high-resolution frequency input module within the Flex XT I/O system. It acquires frequency signals and provides two isolated output channels for use in control systems that monitor and react to rotational or pulse-based sensors, such as encoders or flowmeters. The module interfaces with a 24 V DC isolated customer-supplied output supply, integrates into Flex I/O racks on DIN rails, and is suited for industrial installations requiring precise speed or flow feedback. Part number 1794-IJ2XT.

Best Suited For

High-resolution frequency measurement
Machine speed monitoring
Flowmeter pulse input
Encoder signal capture

Max input frequency

1…32 kHz

Number of channels

2 frequency input channels

Output per channel

1 A at 10…31.2 V DC

Operating temp

-20…+70 °C

Technical Specifications

I/O & Electrical

Input frequency range

1…32 kHz (sine/square)

Input pulse width, min

20 µs

On-state input voltage, nom

24 V DC

On-state input current, nom

9.0 mA

Off-state input max voltage

5.0 V DC

Wire-off detection

0.4 mA

Impedance, frequency input

>5 kΩ (50 mV/500 mV mag), >10 kΩ (3 V/6 V vortex), >2.5 kΩ (24 V DC)

Communication & Power

FlexBus current

5 V DC, 30 mA

Supply (customer-supplied output)

10…31.2 V DC, 1 A per channel; surge 2 A for 50 ms; voltage drop ≤ 0.9 V @ 1 A

Physical & Environmental

Processing time

≤ 4 ms

Dimensions (HxWxD)

46 × 94 × 53 mm (module); 94 × 94 × 69 mm installed

Operating temperature

-20…+70 °C (-4…+158 °F)

Certifications

UL ListedCEATEXIECExUKCARCMKCCCCEAC

See Rockwell Automation product page for full certification listing, including UL, CE, ATEX, IECEx, RCM, KC, UKCA, CCC, naval, EAC, and others as of April 28, 2026.
