1794-IRT8XT Allen-Bradley
Original price
$2,363.15
-
Original price
$2,562.75
Original price
$2,562.75
$2,363.15
-
$2,562.75
Current price
$2,562.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

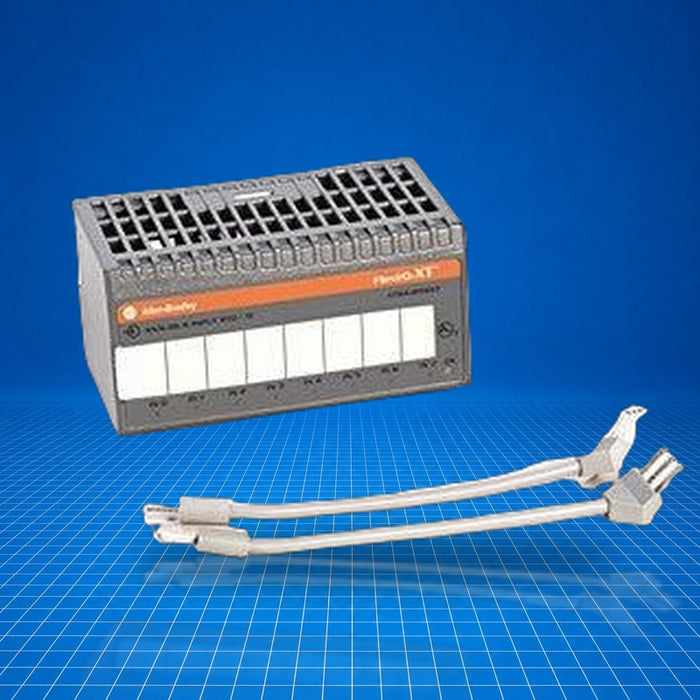

The 1794-IRT8XT is an Allen-Bradley FLEX I/O-XT analog input module for thermocouple, RTD, and millivolt signals. As the extended-temperature, conformally coated version of the 1794-IRT8, this module integrates into a FLEX I/O-XT chassis to acquire temperature data in control and monitoring applications such as machine and process temperature measurement. 1794-IRT8XT supports eight channels and is typically used in industrial environments subject to wide temperature ranges.
Best Suited For
- Multi-point temperature data acquisition (thermocouple/RTD/mV)
- Extended ambient-temperature installations (-20…70 °C)
- Use in conformally coated, harsh industrial environments
- Integration into Flex I/O-XT systems in machine control racks
Channels
8
Operating temp range
-20…70 °C (-4…158 °F)
Input types
Thermocouple, RTD (2/3/4-wire), mV
Conformal coating
Yes (XT version)
Technical Specifications
I/O & Electrical
Supported thermocouple types
Types B, E, J, K, N, R, S, T, TXK/XK (L)
Supported RTD types
100 Ω Pt 385, 100 Ω Pt 3916, 200 Ω Pt 385, 200 Ω Pt 3916, 100 Ω Ni 618, 120 Ω Ni 672, 10 Ω Cu 427
Input resolution
14 bits
Accuracy (mV mode)
0.05 % of full range (with filtering); 0.10 % hardware only
Common-mode rejection
-80 dB @ 5 V pk-pk 50-60 Hz
Common-mode input range
Series A: ±4 V; Series B: ±15 V
System throughput
7.4 ms (mV); 8-10.8 ms (RTD modes); 8-8.8 ms (thermocouple modes)
Excitation current (RTD)
630 µA
Overvoltage capability
Series A: 7 V DC continuous @ 25 °C; Series B: 15 V DC continuous @ 25 °C
Physical & Environmental
Dimensions (HxWxD)
46 × 94 × 53 mm (1.8 × 3.7 × 2.1 in.)
Enclosure style
Open-style (no enclosure rating)
Operating temperature
-20…70 °C (-4…158 °F)
Conformal coating
Yes (XT model)
Certifications
UL ListedCEATEXIECExChina CCCKorean KCUKEXUKCA
Certifications include UL Listed, CE, ATEX, IECEx, China CCC, Korean KC, UKEX, UKCA and others as of May 19, 2026.
