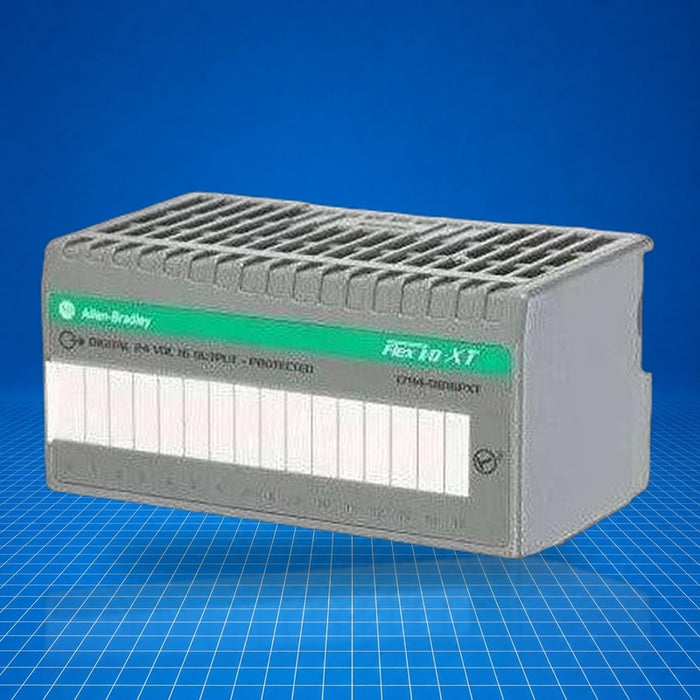

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1794-OB16PXT Allen-Bradley
Original price
$657.25
-
Original price
$687.50
Original price
$657.25
$657.25
-
$687.50
Current price
$657.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1794-OB16PXT is an Allen-Bradley Flex I/O-XT series 16-point digital output module, designed to source 24 V DC outputs within a distributed I/O control system. It provides electronically protected sourcing outputs and integrates into Flex XT platforms via compatible terminal bases. Typical use cases include discrete control signals for actuators, valves, and pilot devices in extended-temperature industrial environments. The module supports extended ambient conditions, suitable for on-machine or process installation, and works alongside other Flex I/O-XT components. Part number appears as 1794-OB16PXT.
Best Suited For
- Distributed I/O in extended-temperature enclosures
- Machine-level actuator or valve control
- Flex I/O-XT systems with compact footprint
- Applications requiring electronically protected sourcing outputs
Outputs
16 sourcing points
Voltage range
10…31.2 V DC
Per-channel current
≤ 500 mA
Total module current
8 A
Extended temp rating
-20 … 70 °C
Technical Specifications
I/O & Electrical
Number of outputs
16 sourcing points
On-state voltage nominal
24 V DC
On-state voltage range
10…31.2 V DC
On-state current per channel
1 mA min, 500 mA max
Module output current rating
8 A total
Surge current (repeatable)
1.5 A for 50 ms every 2 s
On-state voltage drop max
0.5 V DC
Off-state leakage current max
0.5 mA
Isolation voltage
50 V continuous; 2550 V DC for 60 s field-to-system
Communication & Power
FlexBus current
60 mA @ 5 V DC
Power dissipation max
5.0 W @ 31.2 V DC
Thermal dissipation
17.0 BTU/hr @ 31.2 V DC
Physical & Environmental
Operating temperature
-20 … 70 °C (-4 … 158 °F)
Mounting
Open-style, DIN-rail via terminal base
Output protection
Electronically protected outputs
Terminal base compatibility
1794-TB2, TB3, TB3S
Certifications
CEATEXIECExUL ListedKorean KCChina CCCUKCA
