1794-OB8 Allen-Bradley
Original price
$480.00
-
Original price
$687.00
Original price
$480.00
$480.00
-
$687.00
Current price
$480.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

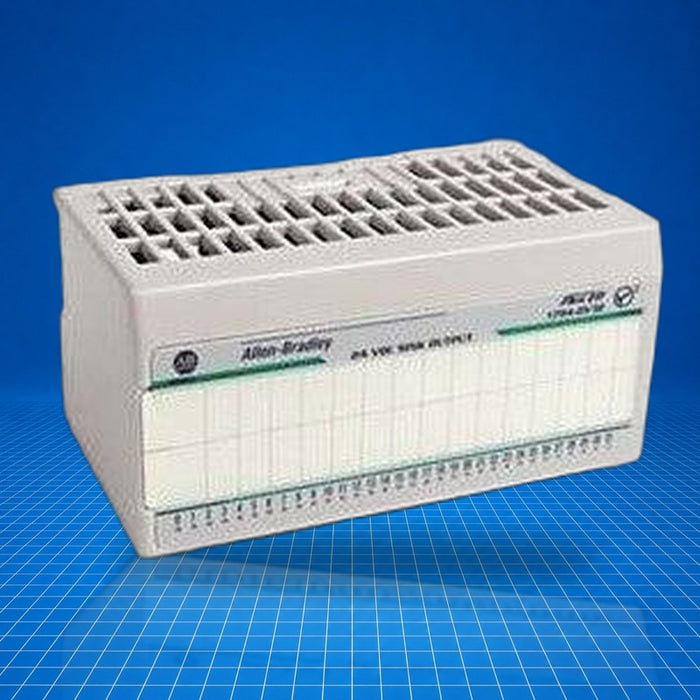

The 1794-OB8 is an Allen-Bradley Flex I/O digital DC output module designed for sourcing current applications within the Flex, Flex Ex, and Flex XT I/O system platforms. It provides eight sourcing outputs at 24 V DC nominal and is typically used to interface control systems with discrete field devices such as indicators, relays, or solenoids. The module mounts on Flex I/O terminal base units and is suitable for manufacturing, material handling, and general machine control systems requiring compact and removable output modules. 1794-OB8.
Best Suited For
- Flex I/O terminal bus deployment
- Sourcing-output discrete control of field devices
- Mid-level count 24 V DC output requirements
- Applications requiring module hot-swap
- Industrial OEM machine control
Outputs
8 sourcing DC
Nominal output voltage
24 V DC
Output current rating
4 A total (0.5 A per channel)
External supply voltage range
10…31.2 V DC (5 % ripple)
Maximum power dissipation
3.3 W @ 31.2 V DC
Technical Specifications
I/O & Electrical
Number of outputs
8 sourcing current
On-state voltage, nominal
24 V DC
On-state voltage, min
10 V DC
On-state voltage, max
31.2 V DC
Output current rating
4 A per module
On-state current, max per channel
500 mA
On-state current, min per channel
1.0 mA
On-state voltage drop, max
0.5 V DC
Off-state leakage current, max
0.5 mA
Surge current
2 A for 50 ms, repeatable every 2 s
Output delay Off→On
0.5 ms
Output delay On→Off
1.0 ms
Isolation voltage
50 V continuous (Basic insulation)
Communication & Power
FlexBus current
60 mA @ 5 V DC
External DC supply voltage range
10…31.2 V DC (5 % ripple)
External DC supply current range
10…35 mA
Physical & Environmental
Temperature rating
0…55 °C (32…131 °F)
Certifications
China CCCATEXRegistro Italiano NavaleUK EX CertificateUKCAMorocco DOCAmerican Bureau of Shipping
