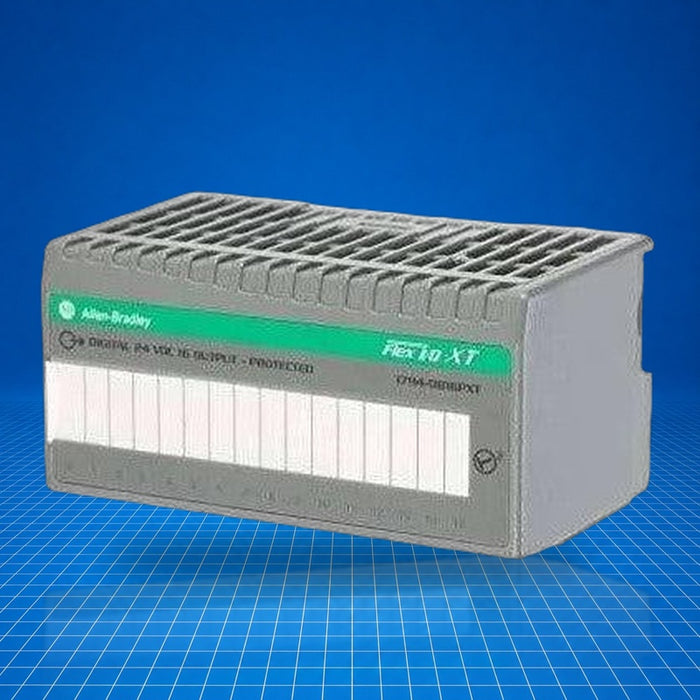

1794-OB8EPXT Allen-Bradley
Original price
$618.75
-
Original price
$1,320.00
Original price
$618.75
$618.75
-
$1,320.00
Current price
$618.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1794-OB8EPXT is an Allen-Bradley Flex I/O-XT digital DC output module offering eight electronically fused sourcing outputs. It is part of the 1794 Flex-XT platform and installs on a terminal base such as the 1794-TB3 or TB2. It operates within standard control architectures to switch DC loads in industrial automation systems. Its extended environmental rating makes it suitable for installations exposed to more extreme ambient conditions. Part number 1794-OB8EPXT.
Best Suited For
- Flex I/O-XT installations requiring fused DC outputs
- Applications needing extended temperature range (-20 °C…70 °C)
- DIN-rail or terminal-base mounted I/O expansions
- Systems where field-side fault protection is required
Outputs
8 sourcing DC outputs
Voltage range
19.2…31.2 V DC
Max output current
2.0 A per channel, 10.0 A per module
Extended temperature
-20…70 °C
Technical Specifications
I/O & Electrical
Number of outputs
8
Output type
Sourcing DC, electronically fused
Supply voltage (nominal)
24 V DC
Voltage range
19.2…31.2 V DC
On-state current (max, per channel)
2.0 A
Module total current (max)
10.0 A
Surge current
4.0 A for 10 ms, repeatable every 3 s
Off-state leakage current (max)
0.5 mA
On-state voltage drop (max)
0.2 V DC
Isolation voltage
50 V continuous, basic insulation; field/system tested at 1500 V AC for 60 s
Flexbus current
80 mA @ 5 V DC
Communication & Power
Supply current
55 mA @ 24 V DC
Physical & Environmental
Ambient temperature
-20…70 °C (-4…158 °F)
Mounting
Terminal base (e.g. 1794-TB2, TB3, TB3S, TBN)
Enclosure
Open style, DIN mount, IP20
Certifications
CEUL ListedATEXIECExUKCAChina CCCAustralian RCM
Module is certified under ATEX, IECEx, CE, UL, UKCA, CCC, RCM, among others as of 19 May 2026.
